VideoTec - HOV32K2A000 - HOV housing 300mm with sunshield and heater IN 12/24 Vac/dc
Part number:
HOV32K2A000
Price:

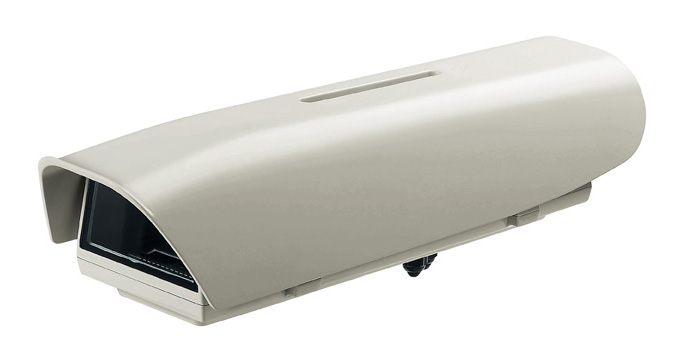

Robust aluminium housing designed to simplify the installation and service, and guarantee total protection against all environmental conditions. Its size makes it ideal for housing various combinations of standard cameras with fixed or compact zoom lenses. Very easy to install thanks to the side-opening system that allows the full access to the camera, lenses and all internal connections. The numerous available accessories, like heater, camera power supply, blower and air filter, wiper and washer can satisfy any installation application.
Features:
- Made of aluminium, sunshield of ABS material
- IP66/IP67 (with cable glands or optional sealing rings)
- Pre-arranged for internal cable management bracket

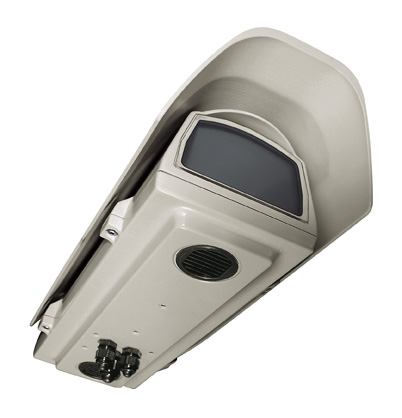

- Version with a very efficient cooling system for installation with IP cameras and for high environmental temperature
- Version with integrated wiper
- Available accessories: heater, camera power supply, fan assisted heater, alarm tamper switch, washer pump
| MECHANICAL |
| Constructed from aluminium |
| Sunshield in ABS |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| Internal usable area (WxH): 100x70mm (3.9x2.7in) |
| Internal usable length (with or without accessories): 250mm (9.8in) |
| Cable glands: 3xM16 |
| Glass window extra clear |
| Dimensions (WxH): 118x75mm (4.6x2.95in) |
| Unit weight: 3kg (6.6lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (empty version): |
| From 12Vdc up to 24Vdc, 1A max |
| From 12Vac up to 24Vac, 1A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| From 12Vdc up to 24Vdc, 3A max |
| From 12Vac up to 24Vac, 3A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater fan assistant, continuous duty): |
| 12Vdc, 400mA max |
| 24Vac, 200mA max, 50/60Hz |
| Supply voltage/Current consumption (version with wide-range power supply): |
| From 100Vac up to 240Vac, 40mA max, 50/60Hz |
| Supply voltage/Current consumption (version with blower and thermostat for models with double filter for air renewal, Ton 35°C±3°C (95°F±5°F), Toff 20°C±3°C (71°F±5°F)): |
| 12Vdc, 400mA max |
| 24Vac, 200mA max, 50/60Hz |
| 120Vac, 0.37A max, 50/60Hz |
| 230Vac, 0.19A max, 50/60Hz |
| Supply voltage/Current consumption (version with integrated wiper): |
| 24Vac, 1.85A max, 50/60Hz |
| 230Vac, 40mA max, 50/60Hz |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with heater): from -20°C (-4°F) up to +65°C (149°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B, ICES-003 Class B (with wiper: EN61000-6-4, EN55032 Class A, FCC Part. 15 Class A, ICES-003 Class A) |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): |
| IP66/IP67 (with cable glands) |
| IP66/IP67 (with bracket with internal cable channel, with sealing rings) |
| IP55 (with bracket with internal cable channel) |
| IP44 (with double filter for air renewal) |
| IK protection degree (EN62262): |
| IK10: models HOV32K1A084, HOV32K2A084 |
| IK10 (except for the front glass): for all the other models |
| Salty fog resistance: to 1000 hours (ISO9227) |
| UL certification (except for versions with double filter for the air exchange, HOV32K1A018, HOV32K2A016, HOV32K2A017, HOV32K2A147, and the version with wiper 230Vac, HOV32K1A100): cULus Listed, TYPE 4X |
| EAC certification |
| ACCESSORIES |
| OHOVPOEIPM Maintenance/retrofit kit for HOV and HOV HI-POE IPM housings |
| OHEH26 Heater 120Vac/230Vac for HOV, HTV, VERSO, VERSO COMPACT housings |
| OHEH27 Heater 12Vac , 12Vdc , 24Vac or 24Vdc , for housings HOV , HTV , VERSO , VERSO COMPACT |
| OHOVV1 Heater fan assistant, continuous duty, IN 12Vdc, for HOV housing |
| OHOVV2 Heater fan assistant, continuous duty, IN 24Vac, for HOV housing |
| OHOVV3 Heater fan assistant, continuous duty,IN 100-240Vac, for HOV housing |
| OHOVPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for HOV and HTV housing |
| OHOVPS2B Camera power supply IN 230 Vac - OUT 24 Vac , 10 V A , for housings HOV , HTV |
| OHOVTA1 Tamper switch on board with tamper proof screws and key for HOV housing |
| OWBIP2 Sealing rings kit (3xM16) IP66 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings |
| OHEGBB Weatherproof junction box |
| WAS0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WAS0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WAS0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac |
| WAS1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac |
| WAS3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac |
| WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WASPT0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac |
| WASPT0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac |
| WASPT1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac |
| WASPT3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac |
| DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings |
| OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing ) |
| BRACKETS AND ADAPTORS |
| WBJA Wall mount bracket |

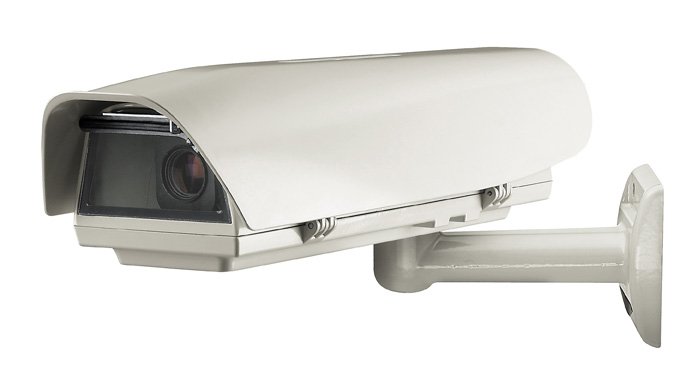

| WBOVA2 Wall bracket with internal cable channel |
| WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3 |
| WCM3A Ceiling bracket with ball joint |
| WCM5A Ceiling bracket with ball joint |
| WCM4A2 Ceiling bracket with internal cable channel |
| WCMPA Linear extension for WCM4A2 and WCM5A |
| WFWCA Column bracket with joint |
| DBHWGC Pole adapter Ø 210mm, max 225mm (8.2in, max 8.9in) . To be combined with the reinforcing support plate WCPA . |
| WCWA Corner mount adaptor |
| WSFPA Pole mount adaptor |
| WCPA Reinforcing support plate for poor consistency walls |
| NXWTU AISI 316L stainless steel adapter module for oblique surfaces |
