The HOV Hi-PoE IPM housing optimally operates with POE and Hi-POE technology, using the power supplied by the Ethernet cable as the sole source of power for all connected devices, thus ensuring maximum efficiency and flexibility of the network system as well as user-friendly installation and low costs. The innovative IPM (Intelligent Power Management) system enables extremely quick and easy installation with the use of a single Ethernet connecting cable. The Hi-POE IPM system automatically detects all the options, like heating, fan and illuminator and then autonomously balances the power to ensure suitable distribution of the same to the connected devices. This guarantees the optimal operation of the IP camera between -30°C (-22°F) and +60°C (140°F), with heat regulation and cold start (activation at low temperature).

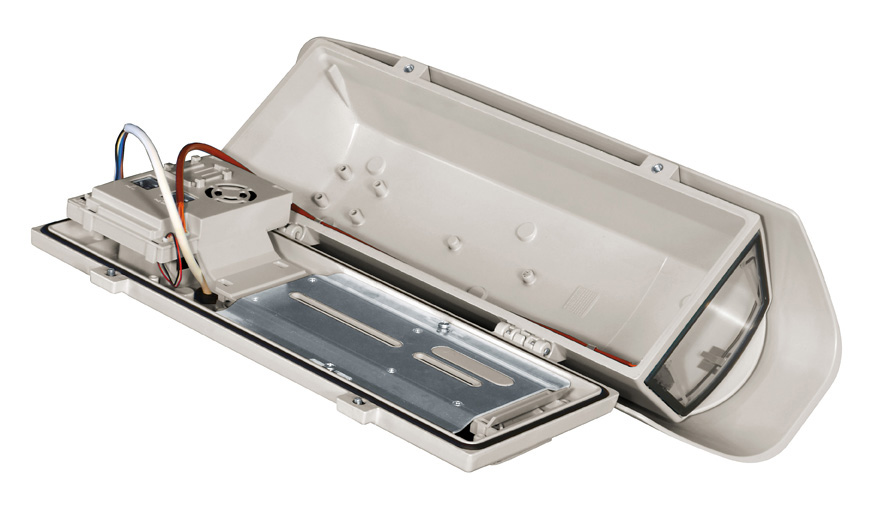

The IPM system offers an opportunity to refit analogue systems with already installed housings by simply changing the slide and internal electronics. This enables the digital conversion, speeding up the installation and thereby minimizing costs and environmental impact.
Features:
- IPM technology (Intelligent Power Management)
- PoE/Hi-PoE power supply for heating, demisting, illuminator, fan and PoE network camera
- Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
- IP66/IP67 (with cable glands or optional sealing rings)
- Special cable gland for a fast Ethernet connection/disconnection without cutting the RJ45 connector
- Pre-arranged for internal cable management bracket
- Version with fan with double air filter
- Version with anti-icing heated glass

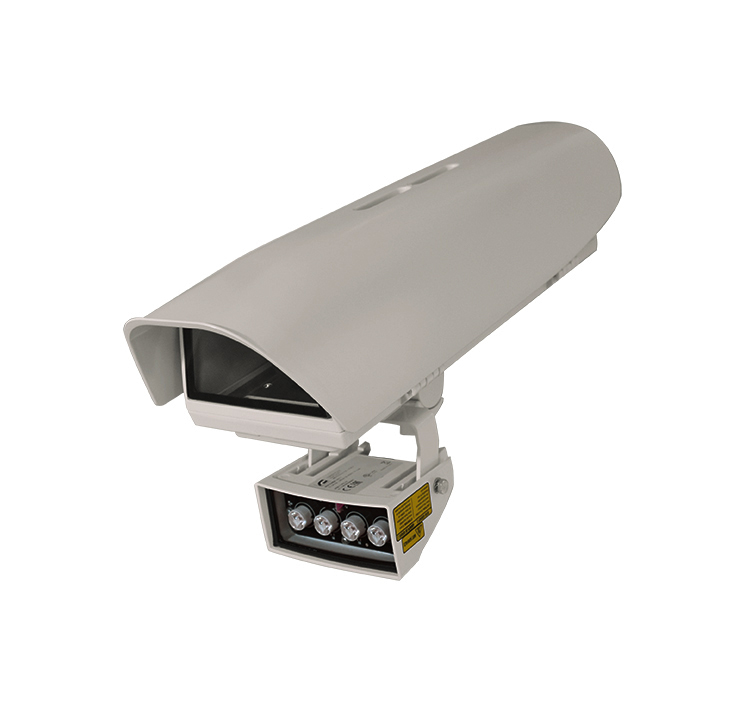

- Pre-arranged to supply a GEKO IRH illuminator
| MECHANICAL |
| Constructed from aluminium |
| Sunshield in ABS |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| Internal usable area (WxHxL): 100x70x250mm (3.9x2.7x9.8in) |
| Cable glands: 1xM12, 1xM16, 1xM20 |
| Glass window extra clear |
| Dimensions (WxH): 118x75mm (4.6x2.95in) |
| Unit weight: 3.1kg (6.6lb) |
| ELECTRICAL |
| Power absorbed in input: PoE class 3 (13W) or Hi-PoE class 4 (25W) selectable from dip switch |
| Available power for camera (PoE IN class 3): PoE Class 2 (7W) |
| Available power for camera (Hi-PoE IN class 4): PoE class 3 (13W) with Ton -10°C ±2°C “cold start” function |
| Data line: 10/100Base-T |
| Illuminator GEKO IRH, low power: 6W |
| Heater: 8W, electronically controlled, Ton 20°C±2°C (68°F±4°F), Toff 23°C±2°C (73.4°F±4°F) |
| Fan with thermostat for camera cooling for versions with double air filter: Ton 35°C±2°C (95°F±4°F), Toff 32°C±2°C (89.6°F±4°F) |
| Demisting with forced hot air: 5W |
| Anti-icing heated glass: 5W, Ton 30°C±2°C (86°F±4°F), Toff 33°C±2°C (91.4°F±4°F) |
| Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus |
| Compatible with the Power Injector (OHEPOWINJ: VIDEOTEC optional accessory) |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: From -10°C (14°F) up to +60°C (140°F) |
| Operating temperature (with heater): From -30°C (-22°F ) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55022 Classe B, FCC Part. 15 Class B |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): |
| IP66/IP67 (with cable glands) |
| IP66/IP67 (with sealing rings and an internal cable channel) |
| IP55 (with bracket with internal cable channel) |
| IP44 (for models with double filter for ventilation) |
| IK protection degree (EN62262): IK10 (except for the front glass) |
| Salty fog resistance: ISO9227, to 1000 hours |
| UL certification: cULus Listed,TYPE 4X (except for version with double filter for the air exchange, HOV32K2A716) |
| EAC certification |
| ACCESSORIES |
| OHEPOWINJ Hi-PoE Power Injector, 1 channel, for indoor installations |
| OWBIP3 Sealing rings kit (1xM12 - 1xM16 - 1xM20) IP66 for WBOVA2 and WCM4A2 brackets for VERSO Hi-PoE IPM and HOV Hi-PoE IPM housings |
| OHEGBB Weatherproof junction box |
| OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing ) |
| BRACKETS AND ADAPTORS |
| WBJA Wall mount bracket |
| WBOVA2 Wall bracket with internal cable channel |
| WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3 |
| WCM3A Ceiling bracket with ball joint |
| WCM5A Ceiling bracket with ball joint |
| WCM4A2 Ceiling bracket with internal cable channel |
| WFWCA Column bracket with joint |
