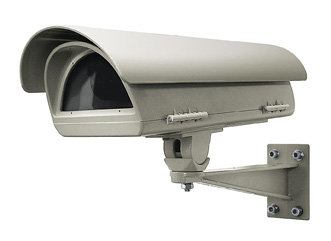

VideoTec - HPV36K1A000B - VERSO COMPACT housing 360mm with sunshield and heater IN 120/230Vac
Part number:
HPV36K1A000B
Price:
Sturdy, tamper-proof housing designed to simplify installation and service and guarantee total protection against all environmental conditions. Entirely constructed from technopolymer, it guarantees high impact resistance and perfect weather protection from external agents and UV rays. A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs. The housing proposes various mounting options, wall or ceiling brackets feedthrough and non-feedthrough, or Pan & Tilt head.
Features:
- IP66/IP67 (with cable glands or optional sealing rings)
- Vandal-proof protection (IK10)
- Pre-arranged for internal cable management bracket
- Available accessories: heater, camera power supply, fan assisted heater
| GENERAL |
| Made of strong technopolymer (polycarbonate) |
| Sunshield in ABS |
| RAL9002 Colour |
| Stainless steel external screws |
| MECHANICAL |
| Internal usable area (WxH): 63x63mm (2.5x2.5in) |
| Internal usable length (with or without accessories): 210mm (8.3in) |
| Cable glands: 2xM16 |
| Polycarbonate window (WxH): 98x55mm (3.9x2.2in) |
| Unit weight: 1.1kg (2.2lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (empty version): |
| From 12Vdc up to 24Vdc, 1A max |
| From 12Vac up to 24Vac, 1A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| From 12Vdc up to 24Vdc, 5A max |
| From 12Vac up to 24Vac, 5A max, 50/60Hz |
| From 120Vac up to 230Vac, 700mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater fan assistant, continuous duty): |
| 12Vdc, 400mA max |
| 24Vac, 200mA max, 50/60Hz |
| From 100Vac up to 240Vac, 40mA max, 50/60Hz (with wide-range power supply) |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with heater): from -20°C (-4°F) up to +60°C (140°F) |
| Chemical agents resistance |
| High resistance: basics, alcohols, gas, hydrocarbon |
| Good resistance: Organic acids, inorganic acids, oils |
| Low resistance: Solvents |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B, ICES-003 Class B |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): |
| IP66 (with cable glands) |
| IP66 (with bracket with internal cable channel, with sealing rings) |
| IK protection degree: EN62262, IK10 |
| UL certification: |
| cULus Listed, TYPE 4X |
| UL94, V1 (fire-self extinguish) |
| EAC certification |
| ACCESSORIES |
| OHEH26 Heater 120Vac/230Vac for HOV, HTV, VERSO, VERSO COMPACT housings |
| OHEH27 Heater 12Vac , 12Vdc , 24Vac or 24Vdc , for housings HOV , HTV , VERSO , VERSO COMPACT |
| OHPVV1 Heater fan assistant, continuous duty, IN 12Vdc, for VERSO and VERSO COMPACT housings |
| OHPVV2 Heater fan assistant, continuous duty, IN 24Vac, for VERSO and VERSO COMPACT housings |
| OHPVV3 Heater fan assistant, continuous duty, IN 100-240Vac, for VERSO and VERSO COMPACT housings |
| OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings |
| OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings |
| OWBIP2 Sealing rings kit (3xM16) IP66 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings |
| OHEGBB Weatherproof junction box |
| OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing ) |
| BRACKETS AND ADAPTORS |
| WBJA Wall mount bracket |
| WBMA Wall bracket with ball joint |
| WBOVA2 Wall bracket with internal cable channel |
| WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3 |
| WCM3A Ceiling bracket with ball joint |
| WCM5A Ceiling bracket with ball joint |
| WCM4A2 Ceiling bracket with internal cable channel |
| WFWCA Column bracket with joint |
