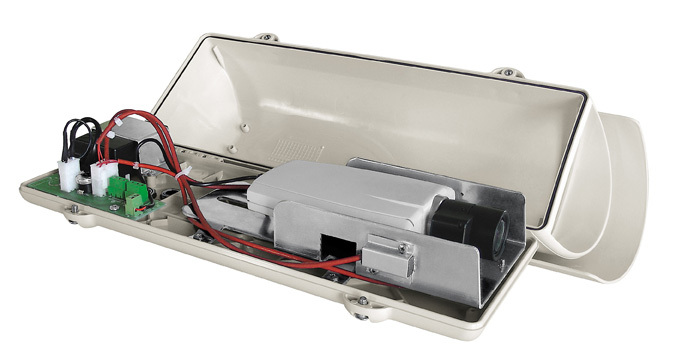

Sturdy, tamper-proof housing designed to simplify installation and service and guarantee total protection against all environmental conditions. This housing is provided with a high performance heating system which it will continue working at even the most severe temperatures, right down to-55°C (-67°F). Entirely constructed from technopolymer, it guarantees high impact resistance and perfect weather protection from external agents and UV rays. Its dimensions make it suitable for a variety of combinations of cameras and lenses. Very easy to install thanks to the side-opening system that allows the full access to the camera, lenses and all internal connections. A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs.
Features:
- High-performance operation, down to -55°C (-67°F)
- IP66/IP67 (with cable glands or optional sealing rings)
- Vandal-proof protection (IK10)

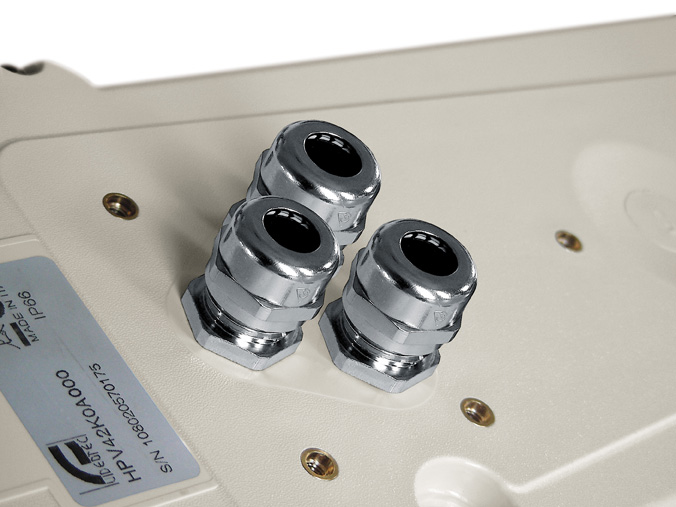

- 3 nickel-plated brass cable glands with standard bracket
- Available accessories: camera power supply
| GENERAL |
| Made of strong technopolymer (polycarbonate) |
| Sunshield in ABS |
| RAL9002 Colour |
| Stainless steel external screws |
| MECHANICAL |
| Internal usable area (WxH): 70x70mm (2.7x2.7in) |
| Internal usable length (with or without accessories): 270mm (10.6in) |
| Cable glands: 3xM16 (nickel-plated brass for external connections) |
| Polycarbonate window (WxH): 105x64mm (4.1x2.5in) |
| Unit weight: 1.5kg (3.3lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| From 12Vdc up to 24Vdc, 5A max |
| From 12Vac up to 24Vac, 5A max, 50/60Hz |
| From 120Vac up to 230Vac, 700mA max, 50/60Hz |
| Camera power supply: |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with heater): From -55°C (-67°F) up to +60°C (140°F) |
| Chemical agents resistance |
| High resistance: basics, alcohols, gas, hydrocarbon |
| Good resistance: Organic acids, inorganic acids, oils |
| Low resistance: Solvents |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B, ICES-003 Class B |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): |
| IP66 (with cable glands) |
| IP66 (with bracket with internal cable channel, with sealing rings) |
| IP55 (with bracket with internal cable channel) |
| IK protection degree: EN62262, IK10 |
| UL certification: |
| cULus Listed, TYPE 4X |
| UL94, V1 (fire-self extinguish) |
| EAC certification |
| ACCESSORIES |
| OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings |
| OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings |
| OHEGBPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, in weatherproof box, for VERSO, VERSO POLAR, HEG, HTG housings |
| OHEGBPS2B Camera power supply IN 230Vac - OUT 24Vac in weatherproof box, 10VA, for VERSO, VERSO POLAR, HEG, HTG housings |
| OWBIP2 Sealing rings kit (3xM16) IP66 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings |
| OHEGBB Weatherproof junction box |
| OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing ) |
| BRACKETS AND ADAPTORS |
| WBJA Wall mount bracket |

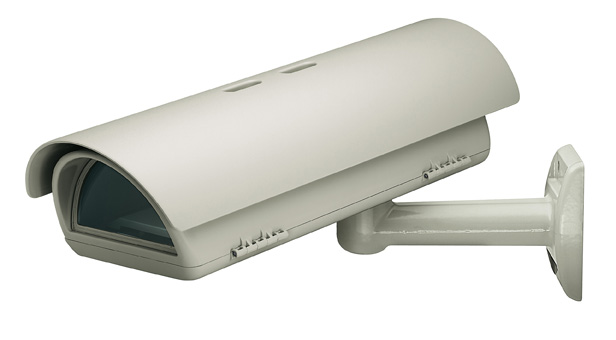

| WBOVA2 Wall bracket with internal cable channel |
| WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3 |
| WCM3A Ceiling bracket with ball joint |
| WCM5A Ceiling bracket with ball joint |
| WCM4A2 Ceiling bracket with internal cable channel |
| WFWCA Column bracket with joint |
