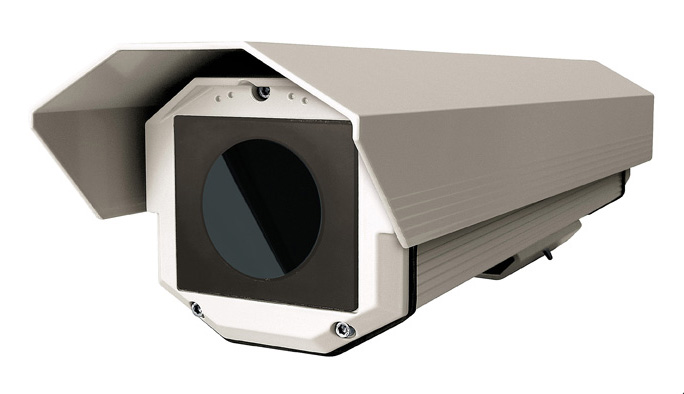

VideoTec - HTG37K2A000 - HTG housing 365mm with sunshield and heater IN 12Vdc/24Vac and Ø55mm Germanium front window
Part number:
HTG37K2A000
Price:
This housing has been designed to fit thermal cameras with large lenses for vision even in total darkness, fog, rain and smoke, or for long distances. It can be used for a wide range of day/night surveillance systems, such as monitoring and rescue in the event of a fire, public safety or airport, industrial and environmental surveillance. The opening system allows an easy access for installation and servicing. It can be installed with cable sheaths, instead of regular cable glands using the junction box for the wiring harness.
Features:
- Germanium window
- IP66/IP67
- Integrated heater
- Available accessories: camera power supply
| GENERAL |
| Die-cast aluminium back and front cover plates |
| Extruded aluminium body and external slide |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| MECHANICAL |
| Internal usable area (WxH): 134x88mm (5.3x3.4in) |
| Internal usable length (with or without accessories): 273mm (10.7in) |
| Cable glands: 3xM16 |
| Unit weight: 4.1kg (9lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 12Vdc, 1.6A max |
| 24Vac, 0.85A max, 50/60Hz |
| 120Vac, 0.35A max, 50/60Hz |
| 230Vac, 0.18A max, 50/60Hz |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree: EN60529 (IP66/IP67, with cable glands) |
| EAC certification |
