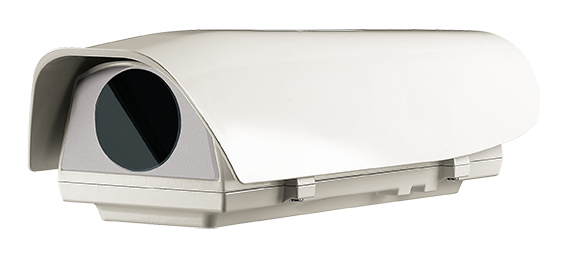

VideoTec - HTV32K1A000 - HTV housing 300mm with sunshield and heater IN 120/230Vac and Ø55mm Germanium front window
Part number:
HTV32K1A000
Price:
This housing has been designed to fit thermal cameras with compact lenses for vision even in total darkness. It can be used for a wide range of day/night surveillance systems, such as monitoring and rescue in the event of a fire, public safety or airport, industrial and environmental surveillance. The frontal opening system allows an easy access to the camera and all internal connections. A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs.
Features:
- Germanium window
- IP66/IP67 (with cable glands or optional sealing rings)
- Pre-arranged for internal cable management bracket
- Side opening, easy camera servicing
- Available accessories: heater, camera power supply, alarm tamper switch
| GENERAL |
| Constructed from aluminium |
| Sunshield in ABS |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| MECHANICAL |
| Dimensions (WxHxL): 176x160x514mm (6.9x6.3x20.2in) |
| Cable glands: 3xM16 |
| Unit weight: 4kg (8.8lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (empty version): |
| From 12Vdc up to 24Vdc, 1A max |
| From 12Vac up to 24Vac, 1A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| From 12Vdc up to 24Vdc, 3A max |
| From 12Vac up to 24Vac, 3A max, 50/60Hz |
| From 120Vac up to 230Vac, 400mA max, 50/60Hz |
| Camera power supply: |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| HOUSING'S WINDOW |
| Germanium window |
| Usable diameter: 55mm (2.1in) |
| Thick:2mm (0.08in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 90% |
| Medium transmittance (from 11.5μm up to 14μm): 77% |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with heater): from -20°C (-4°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B, ICES-003 Class B |
| IP protection degree (EN60529): |
| IP66/IP67 (with cable glands) |
| IP66/IP67 (with bracket with internal cable channel, with sealing rings) |
| IP55 (with bracket with internal cable channel) |
| IP44 (with double filter for air renewal) |
| EAC certification |
