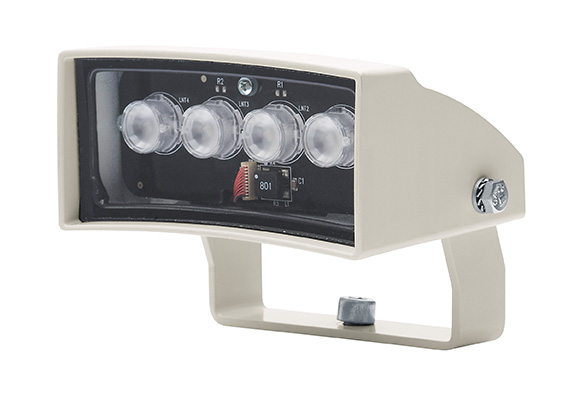

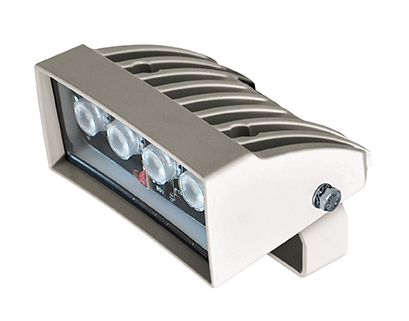

The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area. The high efficiency heat sink body ensures maximum LED durability and protection against over-temperatures, whereas the front glass, made of special technopolymer, provides high infrared transmittance. The GEKO illuminators are protected against electrostatic discharges. The illuminators can be powered at 12Vdc to 24Vdc or at 24Vac. The power supply in a waterproof box, in 230Vac or 120Vac version, is available as an accessory for one or two GEKO illuminators. GEKO is supplied with a wall-mount bracket that rotates horizontally and vertically and can be assembled in a housing by means of the OSUPPIR bracket.
Features:
- Clear night vision up to 140m (460ft) in indoor or outdoor environment
- High efficiency ultimate SMD LED technology
- High efficiency heat sink body to ensure maximum LEDs durability
- Strong aluminium structure
- Vandal-proof protection (IK10)
- Beam pattern: 10°, 30°, 60°
- Wavelengths: 850nm, 940nm, white light
- Consumption: 6W or 12W
- Adjustable built-in photocell
- VOLT free relay contact for external activation

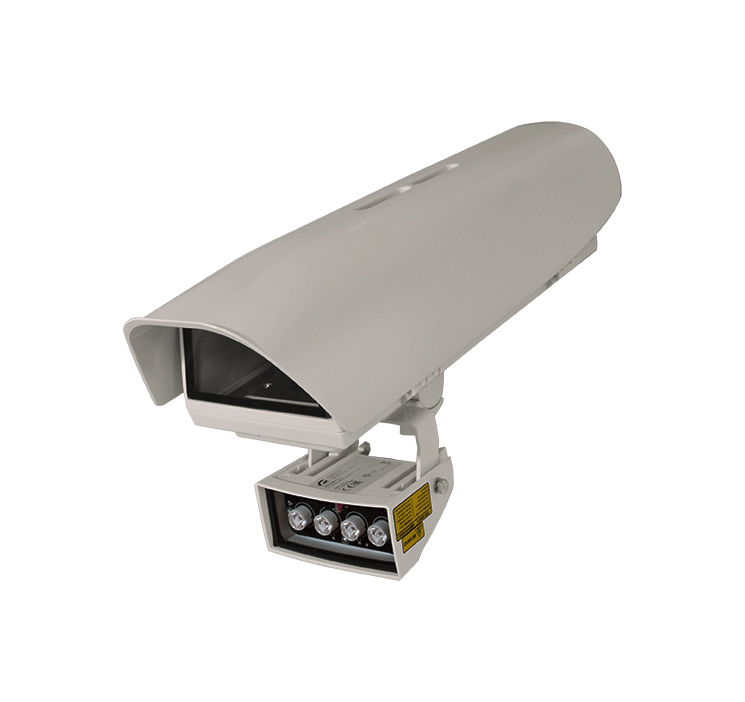

- It can be mounted under a housing using the OSUPPIR bracket

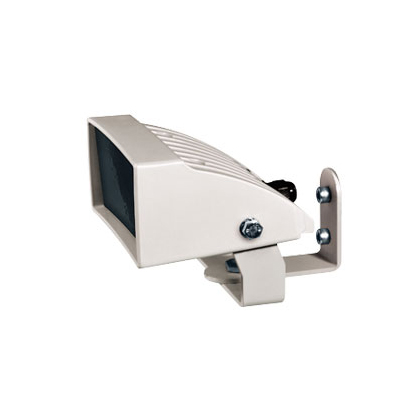

- Supplied with a wall-mount bracket
- IP66/IP67
| GENERAL |
| Die cast aluminum body |

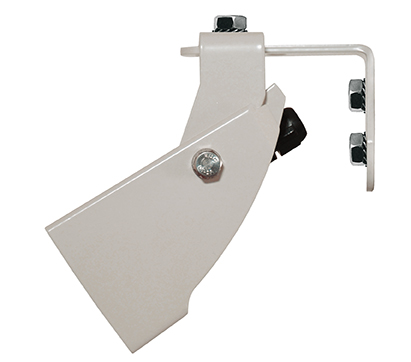

| Supplied complete with horizontal and vertical rotating support in painted galvanized steel |
| Wavelengths: 850nm, 940nm, white light |
| MECHANICAL |
| Dimensions: 133x112x135mm (5.2x4.4x5.3in) |
| Unit weight: 0.9kg (2lb) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| from 12Vdc up to 24Vdc: 1A max (high power 4 LED, 12Vdc), 0.5A max (high power 4 LED, 24Vdc) or 0.5A max (low power 2 LED, 12Vdc), 0.25A max (low power 2 LED, 24Vdc) |
| 24Vac: 0.5A max (high power, 4 LED) or 0.25A max (low power, 2 LED), 50/60Hz |
| State of the art SMD LED |
| Adjustable built-in photocell for automatic activation and deactivation |
| Input for activation by means of external dry contact |
| Supplied with multipole cable: 4x0.34mm² (22AWG), L=2m |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4 |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471, IEC62471 |
| IP protection degree (EN60529): IP66, IP67 |
| IK protection degree : IK10 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed |
| Level of protection Type (UL50E): 4X |
| EAC certification |
| Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU |
| Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU |
