VideoTec - IRN30A8AS00 - Infrared LED illuminator 30°, 850nm, 100/240Vac, distances up to 130m
Part number:
IRN30A8AS00
Price:

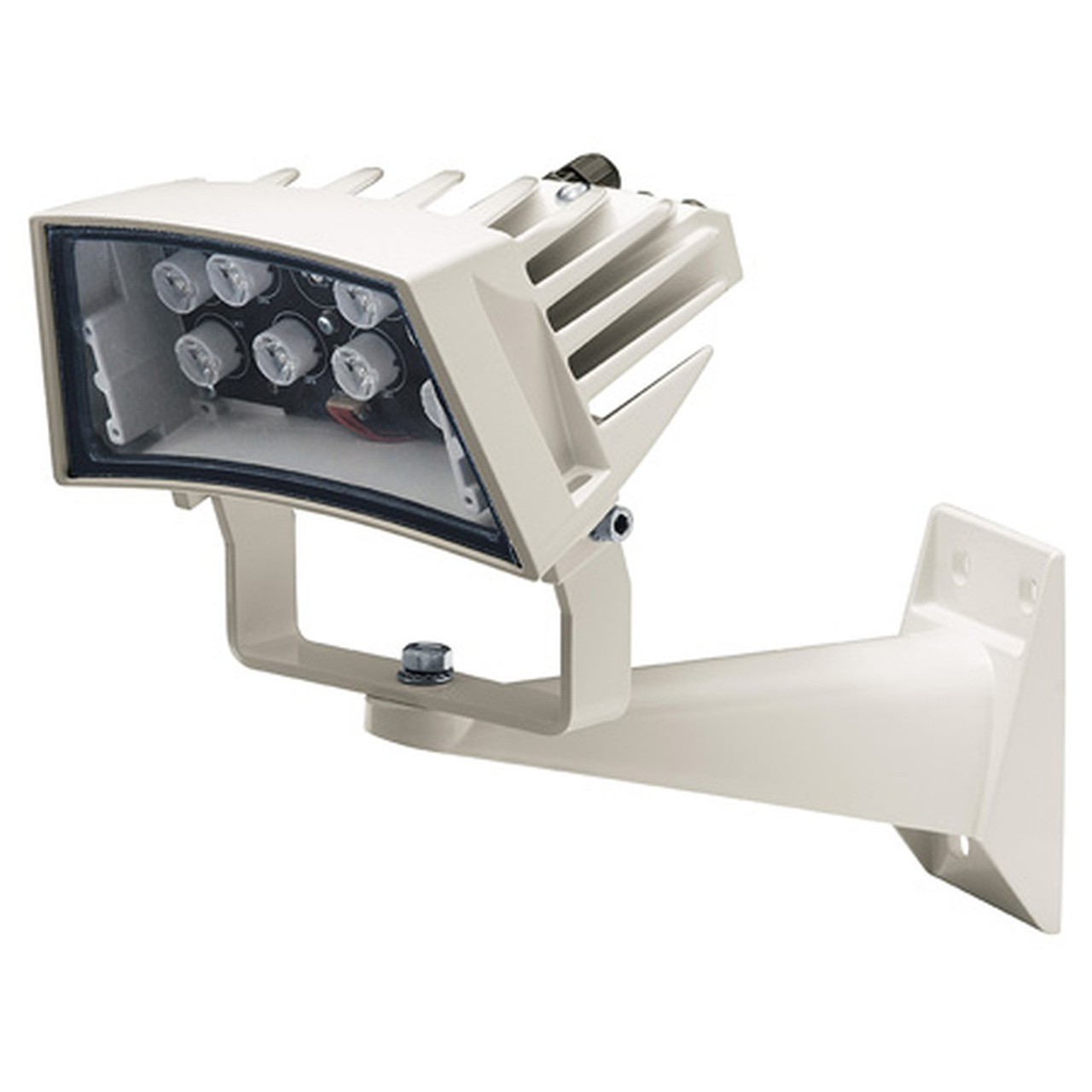

The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area. The high efficiency heat sink body ensures maximum LED durability and protection against over-temperatures, whereas the front glass, made of special technopolymer, provides high infrared transmittance. The illuminators are protected against electrostatic discharges. The illuminator is available in versions 24Vac/12-24Vdc or 100-240Vac with integrated power supply. GEKO is supplied with a wall-mount bracket that rotates horizontally and vertically.
Features:
- High efficiency ultimate SMD LED technology
- High efficiency heat sink body to ensure maximum LEDs durability
- Strong aluminium structure
- Vandal-proof protection (IK10)
- The illuminator is supplied in 12-24Vdc/24Vac or 90-240Vac
- Beam patterns: 10°, 30°, 60°
- Wavelengths: 850nm, 940nm , white light
- Consumption: 30W
- Adjustable light intensity
- Adjustable built-in photocell
- VOLT-free relay input for external activation
- VOLT free relay output for Day/Night camera

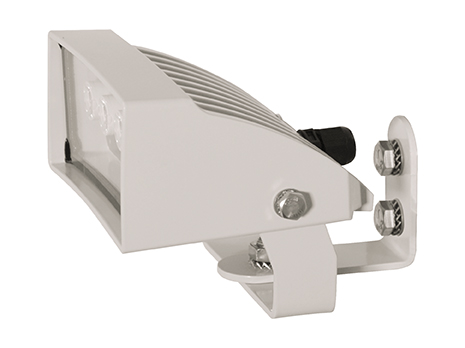

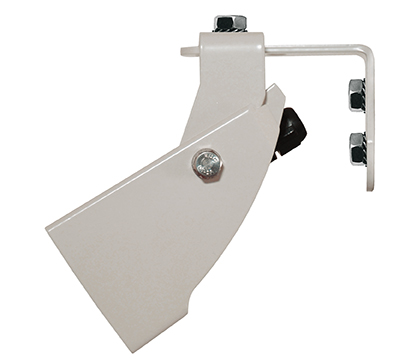

- Supplied with a wall-mount bracket
- IP66/IP67
| General |
| Supplied complete with support |
| Adjustable built-in twilight sensor for automatic activation and deactivation |
| LED SMD |
| Mechanical |
| Die cast aluminum body |
| Dimensions: 187x251x242mm (7.4x9.9x9.5in) |
| Unit weight: |
| 1.7kg (3.7lb) (from 12Vdc up to 24Vdc, 24Vac) |
| 2.2kg (4.8lb) (from 100Vac up to 240Vac) |
| Electrical |
| Supply voltage/Current consumption: |
| From 12Vdc up to 24Vdc, 2.5A max |
| 24Vac, 2.5A max, 50/60Hz |
| From 100Vac up to 240Vac, 1.5A max, 50/60Hz |
| Power supply voltages permitted tolerance: |
| From 120Vac up to 230Vac: ±10% |
| 24Vac or 24Vdc: ±10% |
| 12Vdc: ±5% |
| Input for activation by means of external dry contact |
| Dry contact output (Follow) |
| Multipolar cable L: 2m (6.56ft) |
| Control: 4x0.34mm² (22AWG) |
| Power supply from 12Vdc up to 24Vdc, 24Vac: 2x0.75mm² (18AWG) |
| Power supply from 100Vac up to 240Vac: 3x0.75mm² (18AWG) |
| Environment |
| For installation indoors and outdoors |
| Operating temperature: From -40ºC (-40ºF) up to +60ºC (140ºF) |
| Certifications |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, IEC CISPR22 (Class A) , EN55022 (Class A), FCC Part 15 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471 |
| IP protection degree: EN60529, (IP66/IP67) |
| IK protection degree: EN62262 (IK10) |
| UL certification: cULus Listed (TYPE 4X) |
| EAC certification |
