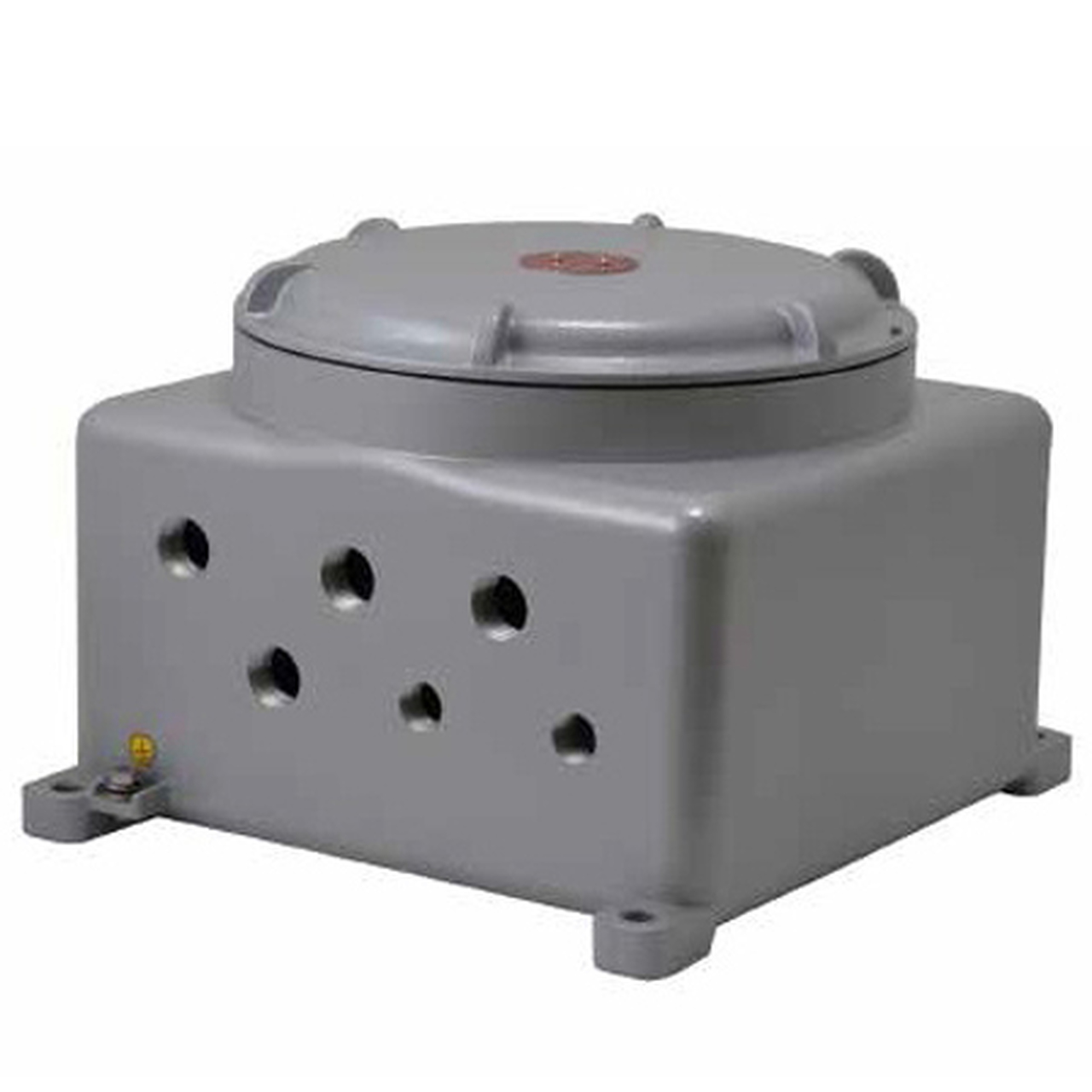

MAXIMUS MBA is much more than just a simple explosion-proof junction box. In fact it is defined as a communication box equipped with everything needed to connect one or more IP or analog cameras.
MAXIMUS MBA has been designed to integrate and work exclusively with the MAXIMUS range of Videotec products.
MAXIMUS MBA provides a local, low-voltage power supply. It also allows a Fast Ethernet connection, thanks to an integrated Ethernet switch equipped with 3 RJ45 ports and an SFP port for fibre optic connection. The type of SFP module can be chosen according to the installation requirements. The internal spaces are designed to make access to cables easier, and to increase user-friendliness when it comes to connection procedures. The internal board also offers the bypass for analog video signals and for all the inputs and outputs which are present in the Videotec MAXIMUS products.
MAXIMUS MBA has been designed to connect a PTZ camera and its washing kit, or in alternative two fixed cameras and their washing kits.
MAXIMUS MBA is built in marine grade aluminium protected by epoxy paint to offer maximum resistance in corrosive environments such as industrial or marine.
MAXIMUS MBA is the complete and competitive solution for professional installation of the Videotec MAXIMUS range of explosion-proof products.
Features:
- Certifications for use in Zones 1 and 2, IIC T5 or T6 Group (Gas) and in Zones 21 and 22, IIIC T100ºC or T85ºC Group (Dust)
- Copper-free marine grade aluminium construction, RAL 9006 external epoxy paint
- Designed to work exclusively with Videotec products and accessories
- Plenty of space for cables and connections
- Input voltages available: 230Vac, 120Vac, 24Vac
- Extended/Industrial range electronics
- Operating temperature: from -40ºC (-40ºF) up to +70ºC (158ºF)
- IP66
| Mechanical |
| Copper-free marine grade aluminum construction |
| RAL 9006 epoxy exterior painting |
| Fastening holes - 4 x Ø13mm (0.5in) |
| Cable gland holes - 4 x 3/4" NPT + 2 x 1/2" NPT |
| External dimensions (WxHxL) - 305x228x340mm (12x9x13.5in) |
| Unit weight - 16.3kg (36lb) |
| Electrical |
| MBA works with all MAXIMUS products in 24Vac. |
| Maximum power output - 120W |
| Input voltages available |
| 230Vac, 50/60Hz |
| 24Vac, 50/60Hz |
| 120Vac, 50/60Hz |
| Possible system configurations |
| up to 1 PTZ + 1 wash system |
| up to 2 Cameras + 2 wash systems |
| Network |
| 4 Ethernet switch channels |
| 3 RJ45 ports |
| Ethernet connection - 10BASE-T/100BASE-T |
| 1 SFP port (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection - 100BASE-FX |
| Supply voltage - 3.3V |
| Standard - compliant MSA |
| Laser - Class 1, complies with EN60825-1 |
| Analogue Video |
| 2 bypass for analog video signals with BNC connectors |
| I/O Interface |
| 2 bypass for I / O signals with multi-pin connectors |
| Environment |
| For installation indoors and outdoors |
| Installation temperature - from -60°C (-76°F) up to +80°C (+176°F) (T5) or +60°C (140°F) (T6) |
| Operating temperature - from -40°C (-40°F) up to +70°C (158°F) |
| Relative humidity - from 10% up to 95% (no condensation) |
| Certifications |
| ATEX (EN 60079-0:2013/A11:2013, EN 60079-1:2007, EN 60079-31:2009) |
| IECEX (IEC 60079-0 Ed.6, IEC 60079-1 Ed.6, IEC 60079-31 Ed.2) |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility |
| CE - EN50130-4, EN55032 (Class B), EN61000-6-4 |
| FCC - Part 15 (Class B) |
| ICES-003 (Class B) |
| IP protection degree (EN60529) |
| IP66 |
