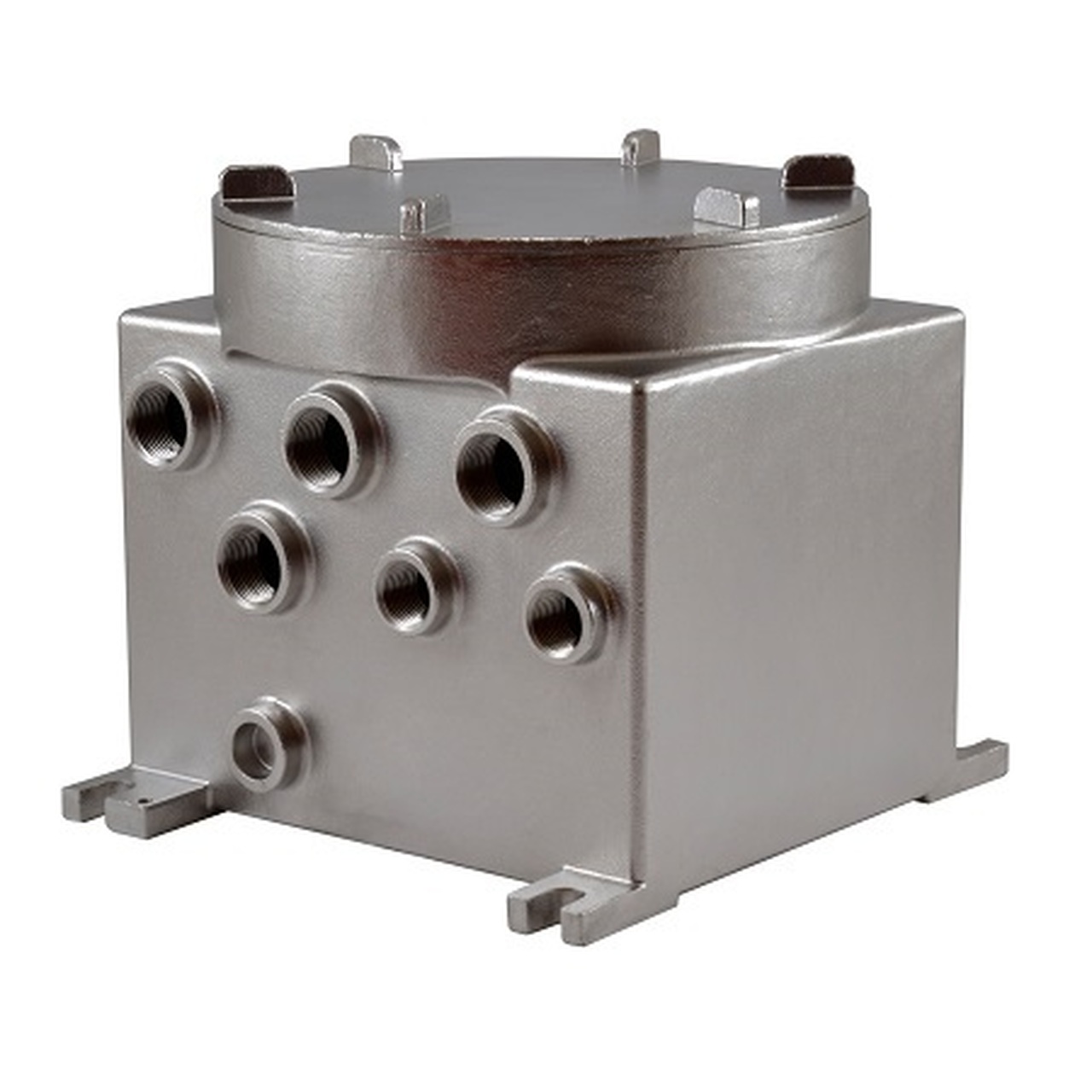

MAXIMUS MBX is a communication box designed to integrate seamlessly with one or more IP or analogue cameras from the Videotec MAXIMUS range. This device can connect a 24Vac-powered PTZ and its washing kit, or two fixed cameras equipped with washing kits. MAXIMUS MBX provides the devices that it connects to with a low-voltage local power supply. It also offers a Fast Ethernet connection thanks to the integrated Ethernet switch that is equipped with 3 RJ45 ports and an SFP port for fibre optic connection. The SFP module can be chosen according to the requirements of the installation. It has been designed so that the inside gives easy access to cables, making connection effortless. The internal circuitry also makes it possible to bypass analogue video signals and all input/output connections available across the Videotec MAXIMUS range. The robust AISI 316L stainless steel construction means maximum anti-corrosion properties for use in industrial and marine environments. Thanks to the integrated filter, any products connected to MBX comply with Lloyd’s Register Marine Type Approval standards for electromagnetic (EMC) compatibility. MAXIMUS MBX is the complete and competitive solution for professional installation of Videotec’s MAXIMUS explosion-proof products.
Features:
- Certifications for use in Zones 1 and 21IC Group (Gas) and in Zones 21 and 22 IIIC Group (Dust); ambient temperature up to +80°C (+176°F)
- AISI 316L stainless steel construction
- Designed to work exclusively with Videotec products and accessories
- Built-in Ethernet switch with 4 channels
- 3 R145 ports, Fast Ethernet (10BASE-T/100BASE-T)
- 1 SFP port Fast Ethernet (100BASE-FX), for fibre optic connection
- 2 bypass for analog video signals with BNC connectors
- 2 bypass for I / 0 signals with multi-pin connectors
- Input voltages available: 230Vac, 120Vac, 24Vac
- Extended/Industrial range electronics
| Mechanical |
| AISI 316L stainless steel construction |
| Fastening slots - 4 x 011mm (0.43in) |
| Cable gland holes - 4 x 3/4"" NPT + 2 x 1/2"" NPT (on request:4 x M25 + 2 x M20) |
| External dimensions (W111xL) - 220x216x240mm (8.7x8.5x9.4in) |
| Unit weight - 17.4kg (38.41b) |
| Electrical |
| MAXIMUS MBX exdusively supportsVIDEOTK products from the MAXIMUS range with 24Vac and WASU with 24Vac |
| Maximum power output: 120W |
| Input voltages available: |
| 230Vac, 50/60Hz |
| 24Vac, 50/60Hz |
| 120Vac, 50/60Hz |
| Possible system configurations: |
| up to 1 PTZ + I wash system |
| up to 2 fixed cameras + 2 wash systems |
| Network |
| 4 channels unmanaged ethernet switch: |
| 3 8145 ports |
| Ethernet connection: 10BASE-T/100BASE-T |
| 1 SFP port (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection:100BASE-FX |
| Supply voltage: 3.3V |
| Standard: compliant MSA |
| The SFP module (not supplied by VIDEOTEC) must meet the following requirements: |
| Laser. Class 1, complies with EN60825-1 |
| ULAEC 60950-1 or WA EC 62368-1 Certification |
| Analogue Video |
| 2 bypass for analog video signals with BNC connectors |
| I/O Interface |
| 2 bypass for 1/ 0 signals with multi-pin connectors |
| Environment |
| For indoors and outdoors installation |
| Certification temperature - from -40°C (-40°F) up to +80°C (+176°F) |
| Operating temperature - from -40°C (-40°F) up to +70°C (158°F) |
| Relative humidity - from 5% up to 95% |
| Certifications |
| Electrical safety (CE) - EN60950-1,1K60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE) - EN50130-4, EN55032 (Class B), EN61000-6-3, EN61000-3-2, EN61000-3-3 |
| RoHS (CE) - EN50581 |
| Outdoor installation (CE) - EN60950-22,IK60950-22 |
| Vibration test - EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAWCSA 02.2 No. 60950-1-07, UL62368-1, CAWCSA 02.2 No. 62368-1-14) - dials Listed |
| Electromagnetic compatibility (North America) - FCC part 15 (Class B), ICES-003 (Class B) |
| IP protection degree (EMEC60529) - 1P66,1P67,IP68, IP69 |
| Level of protection Type (UL50E) - 4X, 6P |
| Certifications - Explosion-Proof Applications |
| ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31) |
| IKIX (IEC 60079-0,IK 60079-1, IEC 60079-31) |
| UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) |
| UL listed for Canada (CAWCSA-C22.2 NO. 60079-0, CAWCSA-C22.2 NO. 60079-1, CAN/ CSA-C22.2 NO. 60079-31) |
| Other certifications pending: |
| EAC Ex (TR CU 012/2011) |
| Certifications on request: |
| INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR 1K 60079-1 + Errata 1, ABNT NBR IEC 60079-31) |
| KCs (Employment and labor department 2016-54) |
| Certifications - Marine Applications |
| Lloyd's Register Marine Type Approval certification: Test Specification Number I (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
