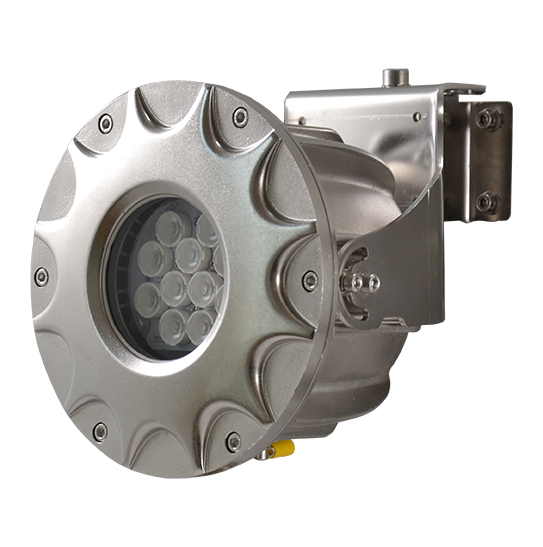

LED MLX illuminators perfectly integrate with indoor/outdoor video surveillance applications or process control systems, providing optimal lighting of the area and clear visibility in poor lighting conditions and during the night. Their construction is entirely in AISI 316L stainless steel that offers maximum resistance in corrosive environments. The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion. Another important feature is the certified extensive temperature range, from -40°C to +70°C. The MLX line is certified for dangerous areas with certification for use in Zone 1 and 2, Group IIB (Gas) and Zone 21 and 22, Group IIIC (Dust). Furthermore, the line is Lloyd's Register Type Approval System Test Specification Number 1 certified and can therefore be used in marine and offshore applications.
Features:
- Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21 and 22, IIIC T85°C or T100°C Group (Dust)
- AISI 316L stainless steel construction

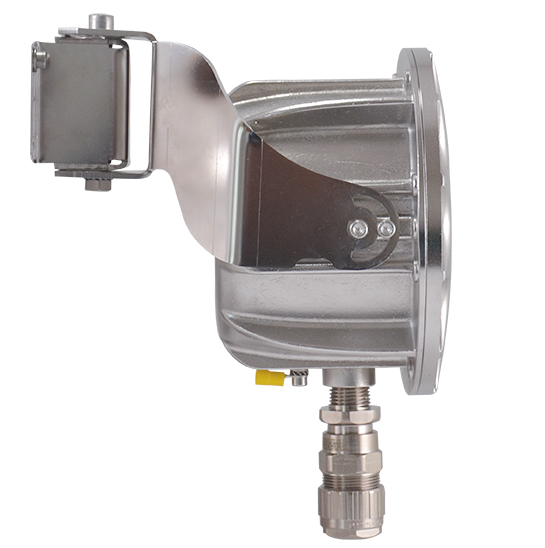

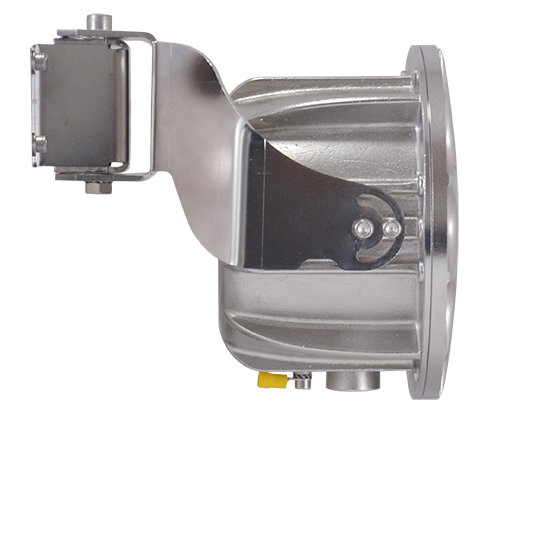

- Supports for ceiling, wall and parapet installation supplied
- White light or IR illuminator
| GENERAL |
| Beam patterns: 70°, circular |
| Number of LED groups selectable: 2 |
| LECC: The "LED Energy Consumption Control" technology allows the illuminator to withstand high temperatures and so ensure the LEDs operate correctly for the entire life of the product. |
| Illuminator with IR type LED |
| Wavelength: 850nm |
| Number of LEDs: 11 |
| Viewing distance: up to 125m (410ft) with VIDEOTEC cameras with DELUX technology |
| Illuminator with white light LED |
| Light color temperature: 6500K |
| Number of LEDs: 10 |
| Viewing distance: up to 125m (410ft) with VIDEOTEC cameras with DELUX technology |
| MECHANICAL |
| AISI 316L stainless steel construction |
| External shot peened and electro-polished surfaces |
| Supports for wall, ceiling or parapet installation |
| Cable entry: 1 hole, 1/2" NPT |
| Unit weight: |
| 6.5kg (14.3lb) |
| ELECTRICAL |
| Supply voltage/Current consumption |
| 24Vac, 1.6A |
| 24Vdc, 1.6A |
| PoE+ (IEEE 802.3at) |
| Power consumption: |
| 25.5W |
| I/O INTERFACE |
| Number of inputs for LED groups management: 2 |
| Fault Relay: 1A, 30Vac/60Vdc max |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +65°C (149°F) |
| Certification temperature: from -40°C (-40°F) up to +70°C (158°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-3, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class B) |
| RoHS (CE): EN IEC 63000 |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471, IEC62471 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class B), ICES-003 (Class B) |
| Level of protection Type (UL50E): 4X, 6P |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) (pending) |
| INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31) |
| KCs (Employment and labor department 2021-22) |
| UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) |
| UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) |
