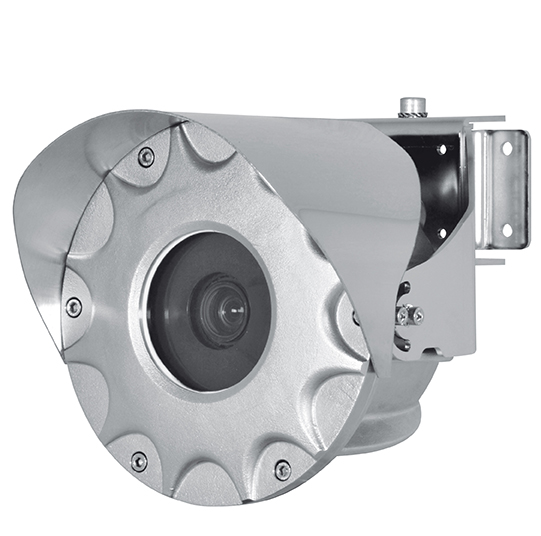

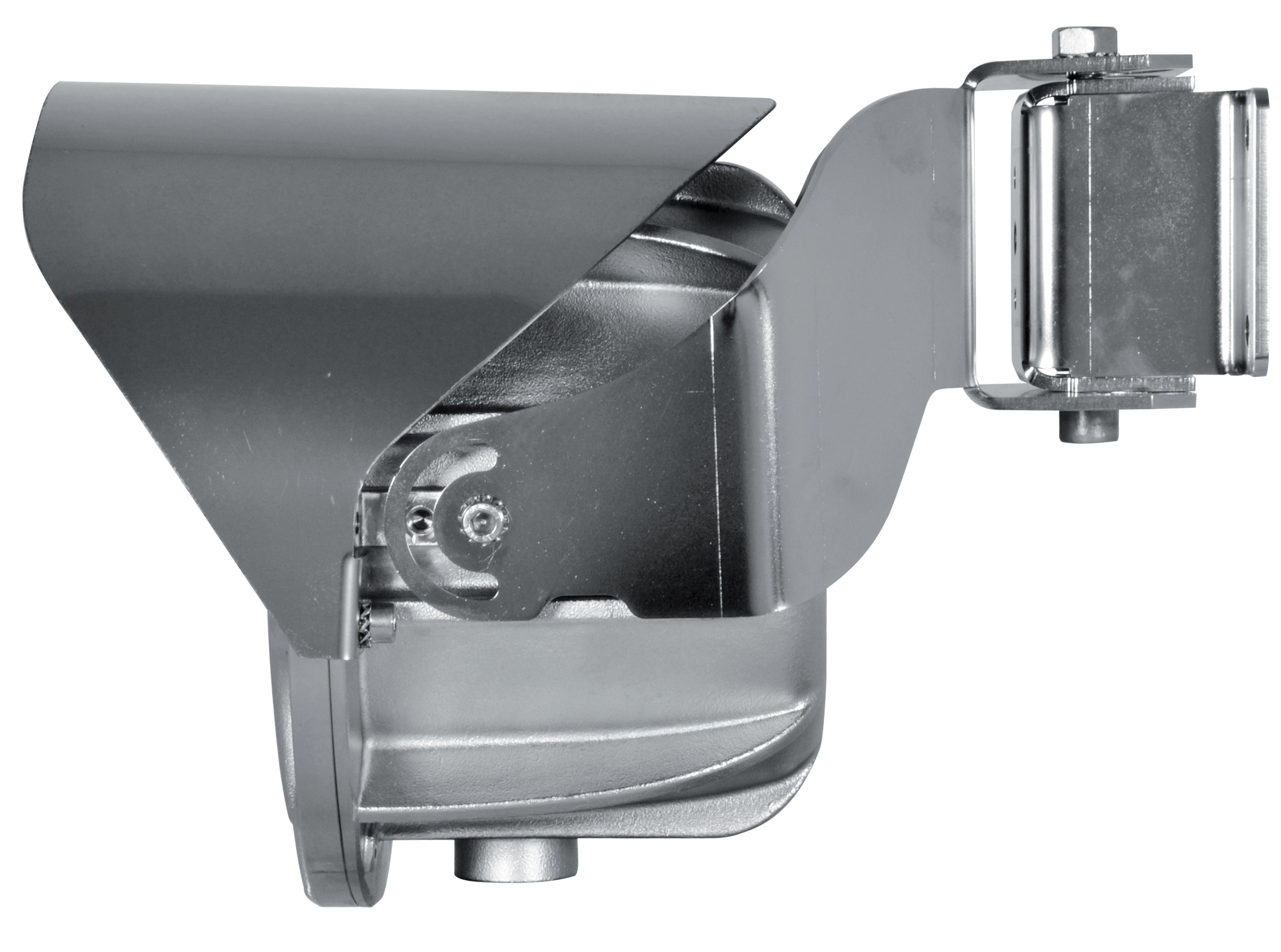

The explosion-proof Full HD camera MAXIMUS MMX is perfect for efficient video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial and foodstuff sectors.The housing is entirely manufactured in stainless steel AISI 316L offering complete resistance to corrosion. Thanks to its compactness (only 116mm) and contained weight (only 6.5 kg (14.3lb)), it can be installed in narrow locations typical of industrial or naval surroundings.The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion.Another important feature of the camera is the extended certification temperature range of -40°C to 70°C.
The MAXIMUS MMX product with 10x Full HD camera is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5 (eg. passenger ships, open-air decks, closed spaces and technical areas that may be subject to heat generated by other equipment, potentially explosive areas, docking procedures).
HIGH QUALITY IMAGE
The Full HD, 1080p camera, with 3x or 10x motorised zoom lens, offers multiple video streams (H.264/AVC, MJPEG, JPEG, MPEG4) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions. The cameras are equipped with a digital image stabiliser.
100% MADE IN VIDEOTEC
Videotec guarantees the extreme robustness and reliability of all its “all-in-one products” with hundreds of validation tests. Mechanics, electronics, positioning, networking, software and firmware are developed end-to-end by the internal Videotec team, with total know-how of all the network products offered.
At the heart of Videotec's product development is the concept of cyber-sustainability. To help customers protect their video surveillance systems and keep them secure, Videotec provides constant updates, training and support throughout the lifecycle of its products, regardless of how old the device is or whether it is still for sale.
Features:
- Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21 and 22, IIIC T85°C or T100°C Group (Dust)
- AISI 316L stainless steel construction
- Camera Full HD 1080p, 3x or 10x with image stabilizer
| CAMERAS |
| Day/Night Full HD 3x |
| Resolution: Full HD 1080p (1920x1080pixel) |
| Signal system: max 1080p/30fps |
| Image Sensor: 1/2.8 type Exmor™ CMOS sensor |
| Effective pixels: 3.27Megapixel |
| Minimum Illumination, colour (ICR-OFF): |
| 1lx, 1/30s, F1.2,50% (Normal mode) |
| 0.25lx, 1/30s, F1.2, 50% (High sensitivity mode) |
| Minimum Illumination, B/W (ICR-ON): |
| 0.1lx, 1/30s, F1.2, 50% (Normal mode) |
| 0.03lx, 1/30s, F1.2, 50% (High sensitivity mode) |
| Lens: |
| From f= 3.0mm (wide) up to 9.0mm (tele) |
| From F1.2 up to F2.1 |
| Zoom: 3x (36x with digital zoom) |
| Horizontal Viewing Angle: From 90° (wide) up to 32° (tele) |
| Minimum object distance: 300mm (11.8in) (wide to tele) |
| Shutter speed: From 1/1s up to 1/10000s, 22 steps |
| White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto), Manual |
| Wide Dynamic Range: On/Off |
| Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority), Brightness |
| S/N Ratio: 50dB |
| Gain limit: up to 28dB |
| Backlight Compensation |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +65°C (149°F) |
| Certification temperature: from -40°C (-40°F) up to +65°C (149°F) (T6/T85°C) or +70°C (158°F) (T5/T100°C) |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A) |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X, 6P |
| BIS certification: IS 13252(PART 1):2010/ IEC 60950-1 : 2005 (certification only valid for the code: MMX2D0ZA) |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| NDAA-compliant |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN 60079-0, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) |
| INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31) |
| KCs (Employment and labor department. 2020-33), only versions without armoured cable |
| UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) |
| UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (only for models with Day/Night camera 10X zoom, FullHD): |
