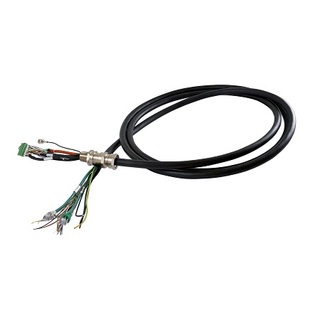

VideoTec - MPX2CABL10 - Cabling for MPX SERIES2, 10m (32,8ft) (unarmoured cable and barrier cable gland): 1 Ethernet cable, power supply wires, signal wires
Part number:
MPX2CABL10
Price:
Cabling for MPX SERIES2, 10m (32,8ft) (unarmoured cable and barrier cable gland): 1 Ethernet cable, power supply wires, signal wires
Features:
- Pre-cabled for Ethernet I/O and telemetry connections
- Equipped with barrier cable gland
- Resistant to oil, flames and ultra-violet rays
- Available in an armoured and unarmoured version
- Designed for potentially explosive zones
| General |
| Unamcured, multipolar, assembled, black cable with barrier cable gland 3/4" NPT |
| Mechanical |
| Length: 4M (13.1ft) or 10m (32.8ft) |
| External diameter: 18.6mm (0.73in) 士 0.35mm (0.01in) |
| Minimum bending radius: 186mm (7.3in) |
| Colour: black |
| Trpe of laying: fixed installation |
| Electrical |
| Power supply cables |
| Number of conductors: 3 |
| Section: 1.5mm² (15AWG) |
| Signal cables |
| Number of conductors: 10 |
| Section: 0.34mm² (22AWG) |
| Network |
| Ethernet cable |
| External diameter:6.2mm (0.24in) |
| Section: 4x2x0.22mm² (24AWG) |
| Category 5e |
| Shielding: SF/UTP |
| Standard: EIA/TIA 568-B |
| Environment |
| For indoors and outdoors installation |
| Operating temperature from -40°C (-40°F) up to +85°C (+185°F) |
| Certifications |
| UL Style 20233 |
| Oil resistant: complies with CNOMO E.0340.150N, ASTM n.2, IRM 902, IEC60811-2-1 |
| UV resistant: complies with UL 1581 |
| Flame resistant: complies with IEC/EN60332-1,1EC/EN 60079-14 (ATEX Ex II) |
| RoHs (CE): complies with 2015/863/EU |
| Part Number |
| Cabling for MAXIMUS MPX SERIES2, 10m (32.8ft), unarmoured cable, barrier cable gland |
