VideoTec - MPX2CABL101 - Cabling for MPX SERIES2, 10m (32,8ft) (unarmoured cable and barrier cable gland): 1 ethernet cable, power supply wires, signal wires
Part number:
MPX2CABL101
Price:

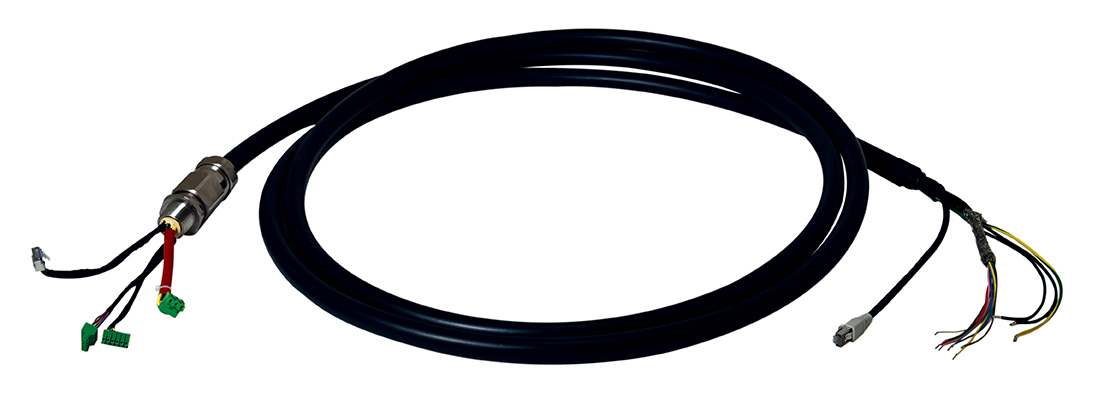

Cabled multipolar cables, armoured and unarmoured, for explosion-proof PTZ of the MAXIMUS MPX SERIES2. VIDEOTEC pre-assembled cables simplify product installation. They are suitable for use in hostile environments. Available in 2 lengths, standard or customised length.
Features:
- Pre-cabled for Ethernet, I/O and power supply connections
- Equipped with barrier cable gland
- Cables made of flame retardant material
- Resistant to oil and ultra-violet rays
- Available in an armoured and unarmoured version
- Designed for potentially explosive zones
| GENERAL |
| Unarmoured, multipolar, assembled, black cable with barrier cable gland 3/4" NPT |
| MECHANICAL |
| Length: 4m (13.1ft) or 10m (32.8ft) |
| External diameter: 18.6mm (0.73in) ± 0.35mm (0.01in) |
| Minimum bending radius: 186mm (7.3in) |
| Colour: black |
| Type of laying: fixed installation |
| ELECTRICAL |
| Power cable |
| Number of conductors: 3 |
| Section: 1.5mm² (15AWG) |
| Shielded I/O cable |
| Number of conductors: 8 |
| Section: 0.34mm² (22AWG) |
| NETWORK |
| Ethernet cable |
| External diameter: 6.2mm (0.24in) |
| Section: 4x2x0.22mm² (24AWG |
| Category: 5e |
| Shielding: SF/UTP |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +85°C (+185°F) |
| CYBERSECURITY |
| UL Style 20233 |
| Oil resistant: complies with CNOMO E.03.40.150N, ASTM n.2, IRM 902, IEC60811-2-1 |
| UV resistant: complies with UL1581 |
| Resistance to flame spread: complies with IEC/EN60332-1, IEC/EN 60079-14 (ATEX Ex II) |
| RoHS (CE): complies with 2015/863/EU |
| PART NUMBER |
| MPX2CABL101 |
| Cabling for MAXIMUS MPX SERIES2, 10m (32.8ft), unarmoured cable, barrier cable gland: 1 Ethernet cable, 3 power supply conductors, 8 I/O conductors |
