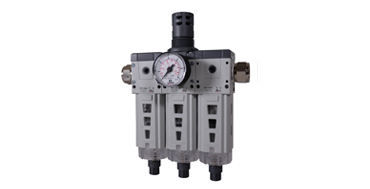

VideoTec - NXFIGRU2 - Air Filtering Group for Compressed Air Cleaning
Part number:
NXFIGRU2
Price:
To combine with the air barrier ONXAB2 and ONXAB1025B to filter compressed air of oil and water impurities generally coming from the compressor
Features:
- Filtering of particles with diameter higher than 0.1μm
| MECHANICAL |
| 3 filters in cascade (25μm, 5μm, 0.1μm) |
| Dimensions: 159x208x76mm (6.3x8.2x3in) |
| Female input and output: 1/2”GAS |
| Input pressure: 16bar max |
| Output pressure: 4bar max |
| Recommended minimum output pressure(air barrier Videotec): 2bar |
| Filtering: 0.1μm |
| Unit weight: 0.8kg (1.8lb) |
| Operating temperature: +50°C (122°F) max |
