VideoTec - OHOVPOEIPM - Kit Retrofit for IPM Technology on HOV Housings
Part number:
OHOVPOEIPM
Price:

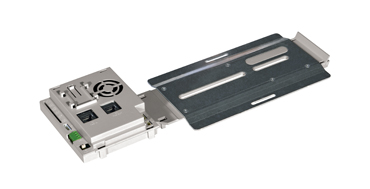

Kit retrofit for IPM technology on HOV housings
Features:
- Maintenance/Retrofit Kit for HOV and HOV HI-POE IPM Housings
- IPM technology (Intelligent Power Management)
- PoE/Hi-PoE power supply for heating, demisting, illuminator, fan and PoE network camera
- Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
| ELECTRICAL | |
| Power absorbed in input: PoE class 3 (13W) or Hi-PoE class 4 (25W) selectable from dip switch | |
| Available power for camera (PoE IN class 3) | PoE Class 2 (7W) |
| Available power for camera (Hi-PoE IN class 4) | PoE class 3 (13W) with Ton -10°C ±2°C |
| “cold start” function | |
| Data line | 10BASE-T/100BASE-T |
| Illuminator GEKO IRH, low power | 6W |
| Heater | 8W, electronically controlled, Ton 20°C±2°C (68°F±4°F), Toff 23°C±2°C (73.4°F±4°F) |
| Fan with thermostat for camera cooling for versions with double air filter | Ton 35°C±2°C (95°F±4°F), Toff 32°C±2°C (89.6°F±4°F) |
| Demisting with forced hot air | 5W |
| Anti-icing heated glass (HOV housing) | 5W, Ton 30°C±2°C (86°F±4°F), Toff 33°C±2°C (91.4°F±4°F) |
| Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus | |
| Compatible with the Power Injector (OHEPOWINJ: VIDEOTEC optional accessory) |
