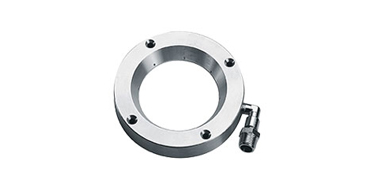

VideoTec - ONXAB1025B - Air Barrier with IR-Proof Glass
Part number:
ONXAB1025B
Price:
Air barrier with IR-proof glass
Flange designed to create an air barrier in front of the glass, preventing the formation of dust deposits.
Features:
- Air barrier with IR-proof glass
- Made of AISI 316L electropolished stainless steel
| MECHANICAL | |
| Dimensions (ØxL) | 154x21mm (6x0.8in) |
| Male input 1/2” GAS | |
| Flange with 8 holes | |
| System pressure | 4bar max |
| Recommended minimum pressure | 2bar |
| Example of application | • Input air pressure 1bar, output air pressure 0.2bar, air flow rate 7m³/h • Input air pressure 2bar, output air pressure 1bar, air flow rate 10m³/h • Input air pressure 3bar, output air pressure 1.25bar, air flow rate 12m³/h • Input air pressure 4bar, output air pressure 1.25bar, air flow rate 14m³/h |
| IR-proof glass | • Thick: 6.6mm (0.3in) • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max • Transmitted IR radiation: 21% |
| Unit weight | 1.6kg (3.5lb) |
| PART NUMBER | |
| ONXAB1025B Air barrier with IR-proof glass included for NXW housings |
