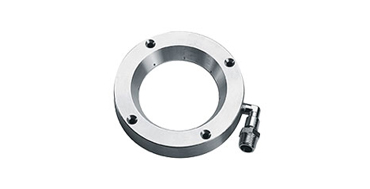

VideoTec - ONXAB2 - Air Barrier with Tempered Glass for NXW
Part number:
ONXAB2
Price:
Flange designed to create an air barrier in front of the glass, preventing the formation of dust deposits. It is supplied standard on NXW housing and optional NXM housing
Features:
- Air barrier with tempered glass for NXW
- Made of AISI 316L electropolished stainless steel
- Supplied with NXW housing and optional on NXM
| MECHANICAL | |
| Dimensions (ØxL) | 154x21mm (6x0.8in) |
| Male input 1/2” GAS | |
| Flange with 32 holes | |
| System pressure | 6bar max |
| Recommended minimum pressure | 2bar |
| Example of application | • Input air pressure 1bar, output air pressure 0.2bar, air flow rate 28m³/h • Input air pressure 2bar, output air pressure 1bar, air flow rate 40m³/h • Input air pressure 3bar, output air pressure 1.2bar, air flow rate 48m³/h • Input air pressure 4bar, output air pressure 1.2bar, air flow rate 56m³/h • Input air pressure 5bar, output air pressure 1.2bar, air flow rate 70m³/h • Input air pressure 6bar, output air pressure 1.2bar, air flow rate 80m³/h |
| Tempered extra clear glass | • Thick: 6mm (0.24in) • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max |
| Unit weight | 1.6kg (3.5lb) |
| PART NUMBER | |
| ONXAB2 Front flange with air barrier and tempered glass |
