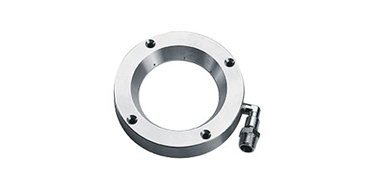

VideoTec - ONXMAIRB - Front Flange With Air Barrier And Tempered Glass
Part number:
ONXMAIRB
Price:
Anterior flange with air barrier with tempered glass included for NXM36
Features:
- Front flange with air barrier and tempered glass, for housings in stainless steel.
- Made of AISI 316L electropolished stainless steel
| MECHANICAL | |
| Dimensions (ØxL) | 154x27mm |
| Male input 1/2” GAS | |
| Flange with 32 holes | |
| System pressure | 6bar max |
| Recommended minimum pressure | 2bar |
| Example of application | • Input air pressure 1bar, output air pressure 0.2bar, air flow rate 28m³/h • Input air pressure 2bar, output air pressure 1bar, air flow rate 40m³/h • Input air pressure 3bar, output air pressure 1.2bar, air flow rate 48m³/h • Input air pressure 4bar, output air pressure 1.2bar, air flow rate 56m³/h • Input air pressure 5bar, output air pressure 1.2bar, air flow rate 70m³/h • Input air pressure 6bar, output air pressure 1.2bar, air flow rate 80m³/h |
| Window with extra clear tempered glass | • Usable diameter: 95mm (3.7in) • Thick: 6mm (0.24in) • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max |
| Unit weight | 2.1kg (4.6lb) |
