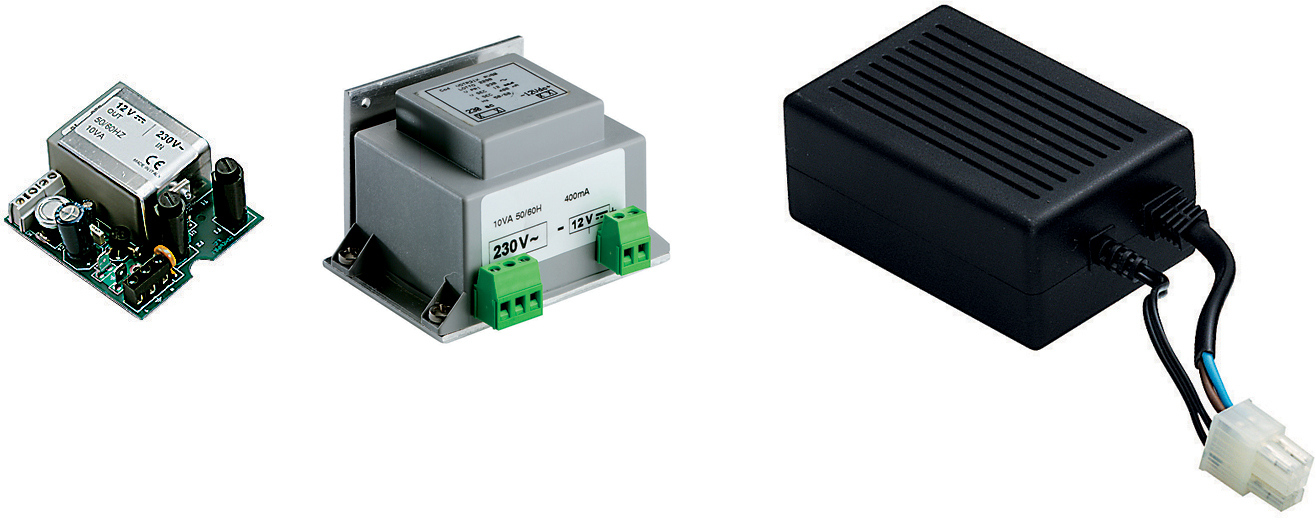

Videotec - ONXWPS1B - Wide range power supply for camera IN 100-240Vac - OUT 12Vdc for NXW - NTW
Part number:
ONXWPS1B
Price:
Wide range power supply for camera IN 100-240Vac - OUT 12Vdc for NXW - NTW
Features:
- Can be installed inside the housing
- Available in different versions: IN from 100Vac up to 240Vac or 230Vac, OUT 24Vac or 12Vdc
| ELECTRICAL | |
| Camera power supply | IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| Power supply in weatherproof box | IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
