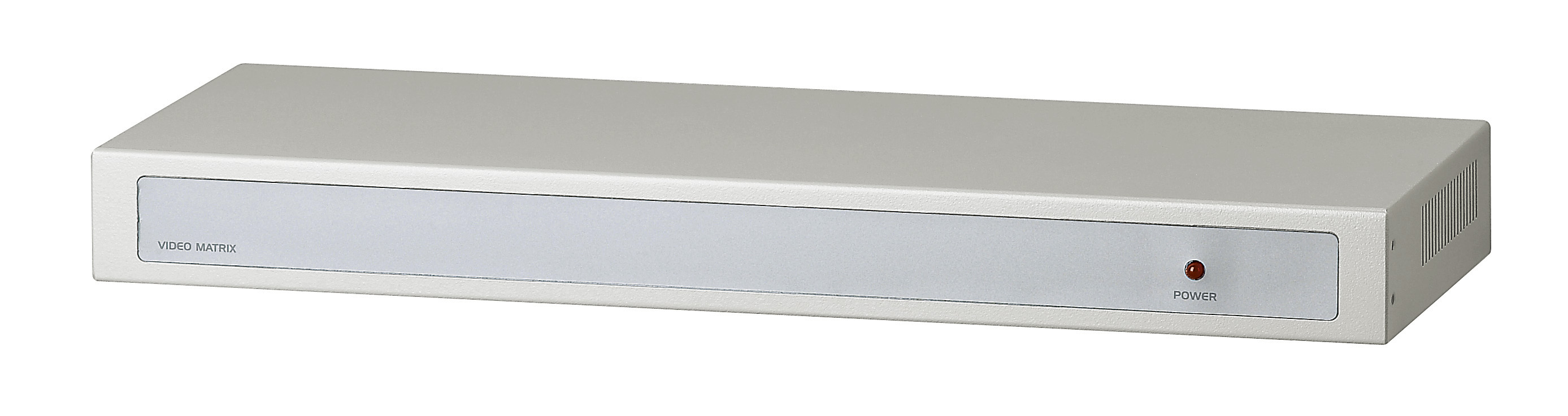

Videotec - SM164B - Video matrix, 16 inputs and 4 outputs
Part number:
SM164B
Price:
The SM164B matrix is a microprocessor remote-controlled video matrix which allows the video switching of 16 cameras on 4 outputs. A OSD programmable password ensures protection from improper use of the matrix.
Features:
- Telemetry over the coax on the 16 video inputs and on auxiliary serial output (RS-485)</p>
- Controllable by PC (RS-232)</p>
- 16 alarm inputs, one output contact, trigger VCR and alarm reset</p>
- 4 RS-485 serial inputs for max. 4 remote keyboards</p>
- Privacy video masking function</p>
| GENERAL |
| Max 16 cameras |
| Max 4 monitors |
| Max 4 remote keyboards |
| On screen display video programming |
| Menu in 4 languages (Italian, English, French and German) |
| Different switching sequences for each video output |
| Identification texts for each output |
| Date and time management |
| Types of alarm reset: manual from keyboard, external, timed automatically |
| Completely configurable alarm inputs for all 16 video inputs |
| VCR trigger management |
| Alarm condition warning buzzer |
| Relay can be activated by each alarm |
| Telemetry control on RS485 auxiliary line and on coaxial cable |
| Video signal masking on fixed camera for privacy purposes |
| Input 75 Ohm load disconnectable |
| Equipped with wide range power supply, 3 power cables, 2 RJ11 telephone cables, 2 junction boxes RJ11 jack, DB25 connector |
| MECHANICAL |
| Steel enclosure |
| Epoxypolyester powder painting, RAL7036 colour |
| Dimensions: Rack 19”, 1U, 432x45x180mm (17x1.8x7in) |
| 1XDB25 connector (alarm) |
| 5 connectors RJ11 (4 for keyboards and 1 for telemetry line) |
| 1xpower supply jack connector |
| 1xDB9 female connector (PC) |
| 16 inputs BNC video |
| 4 BNC video outputs |
| Unit weight: 3.5kg (7.7lb) |
| ELECTRICAL |
| Power supply: |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| Consumption: 15W max |
| 16 inputs 75 Ohm 1Vpp (PAL/NTSC) |
| 4 outputs 75 Ohm 1Vpp (PAL/NTSC); |
| Bandwidth: > 6MHz |
| Lower cut-off frequency: (-3dB): 9Hz |
| Signal/Noise ratio: > 48dB@5.5MHz |
| Relay contact: 50Vac, 0.3A |
| SERIAL COMMUNICATIONS |
| Telemetry transmission on coax cable on the 16 video inputs (min distance 5m (16.4ft) and max 350m (1148ft) |
| Telemetry data transmission on serial output RS485 for a max distance of 1200m (3937ft) |
| 4 serial inputs RS485 for the reception of data from max 4 remote keyboards from a max distance of 1200m (3937ft) |
| Serial input RS232 for firmware update and PC control from a max distance of 15m (49ft) |
| Protocols (Telemetry Line): |
| PELCO D (2400, 4800, 9600, 19200 baud) |
| VIDEOTEC (1200, 9600 baud) |
| VIDEOTEC MACRO (1200, 9600, 19200, 38400 baud) |
| PELCO is registered trademark. |
| ENVIRONMENT |
| For installation indoors |
| Operating temperature: from 0°C (32°F) up to +40° (104°F) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class B), EN61000-6-3, FCC Part 15 (Class B) |
| EAC certification |
