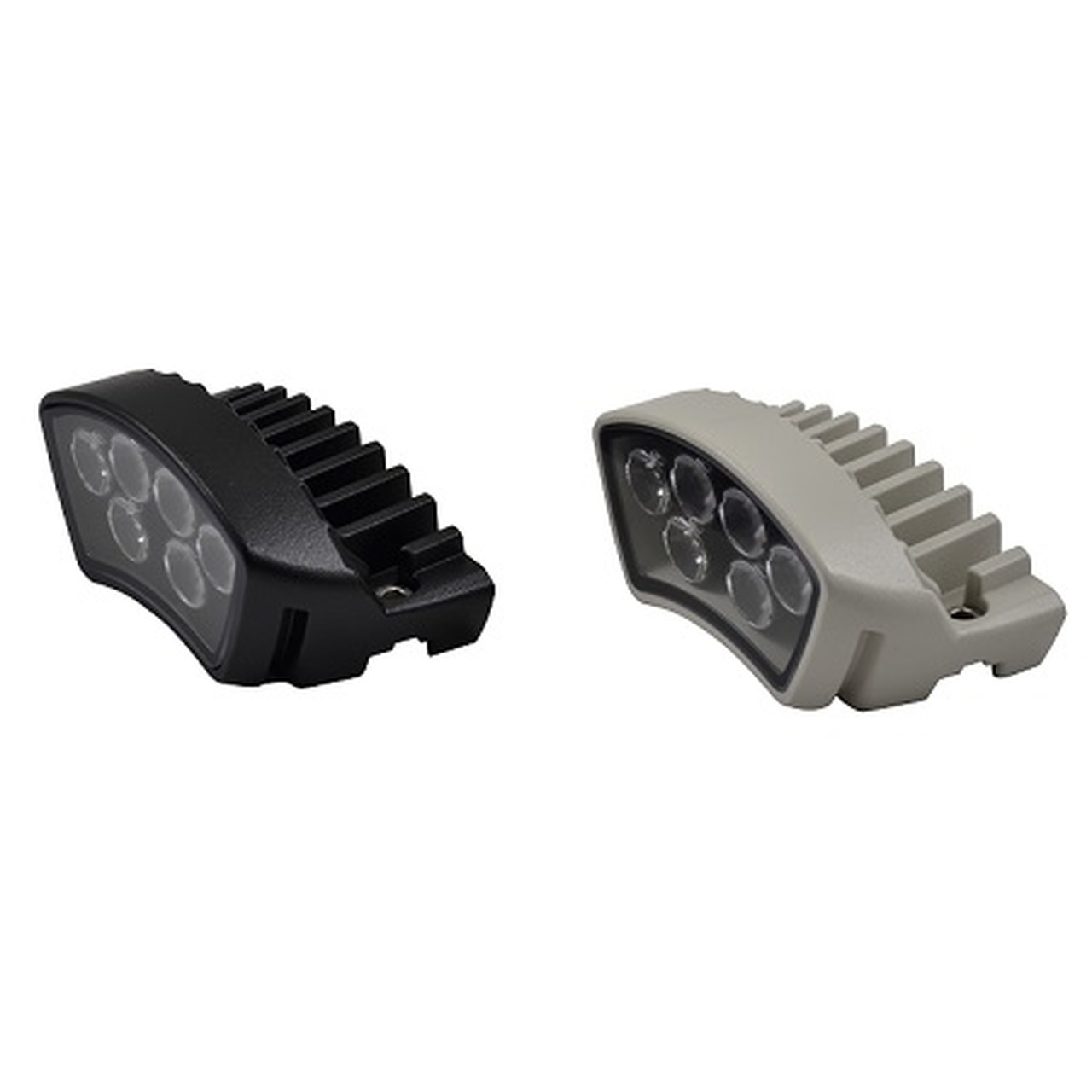

VideoTec - UEI8FAP - IR illuminator 850nm for long distance lighting up to 270m (885ft) for ULISSE EVO black colour (RAL9005)
Part number:
UEI8FAP
Price:
IR illuminator 850nm for long distance lighting up to 270m (885ft) for ULISSE EVO black colour (RAL9005)
Features:
- Wavelength: 850nm, 940nm, white light
- Automatic and remote switching on
- No calibration required for light beam alignment with the camera
- Automatic recognition of the type of illuminator installed
| GENERAL | |
| Wavelength: 850nm, 940nm (UEIxxx only), white light | |
| UEIxxx | |
| • Wide beam: 40° (horizontal), 16° (vertical) • Spot beam: 14° (horizontal), 14° (vertical) |
|
| UEIxxxP | |
| • Wide beam: 13° (horizontal), 13° (vertical) • Spot beam: 13° (horizontal), 13° (vertical) |
|
| Wide beam activation: based on the scene brightness, from alarm input or manually | |
| Spot beam activation (can be activated only when the wide beam is active): can be activated on preset, based on the zoom factor or with the wide beam |
|
| Automatic and remote switching on | |
| No calibration required for light beam alignment with the camera | |
| The illuminator does not slow down the P&T’s rotation speed | |
| Automatic recognition of the type of illuminator installed | |
| MECHANICAL | |
| Die cast aluminum body | |
| Dimensions (WxHxL) | 97x53x54mm (3.8x2x2.1in) |
| Unit weight | 0.25kg (0.55lb) |
| ELECTRICAL | |
| Power consumption | 13W |
