VideoTec - UPTHT2 - Reinforced Heater for ULISSE with Integrated Block Camera
Part number:
UPTHT2
Price:

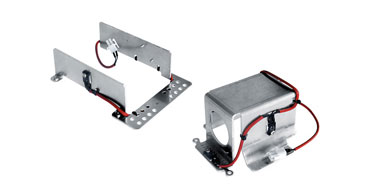

Reinforced heater for ULISSE with integrated block camera
Features:
- Reinforced Heater For Low Temperature Applications
- UPTHT2 for ULISSE versions with block camera. Operating temperature down to -30°C (-22°F).
- Reinforced heater for block camera (UPTHT2): IN 24Vac, 30W
- Unit weight: 0.2kg (0.4lb) (with block camera)
| GENERAL | |
| Lens: | f=4.3 mm (wide) ~ 129.0 mm (tele), from F1.6 to F4.7 |
| Optical zoom | 30x (360x, with digital zoom) |
| Horizontal Viewing Angle | 63.7° (wide end), 2.3° (tele end) |
| Minimum object distance | 10mm (wide) ~ 1200mm (tele) |
| Shutter speed | 1/1 to 1/10000 s, 22 steps |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual |
| Gain | Auto, Manual, Gain Limit (from 3dB up to 43dB, steps: 3dB) |
| Wide Dynamic Range | On/Off/Visibility enhancer, Light level, Brightness Compensation |
| Focus System | Camera Trigger (Sensitivity: Normal, Low), PTZ Trigger |
| ENVIRONMENT | |
| Operating temperature: | from -10°C (14°F) up to +65°C (149°F) |
| MECHANICAL | |
| Dimensions: | 18.8x12.2x47.3cm (74x48x186in) |
| Unit weight | 0.2kg (0.4lb) |
Name
Description
Size
Downloads
File
Datasheet
1.4mb
File
Instruction Manual
1.5mb
