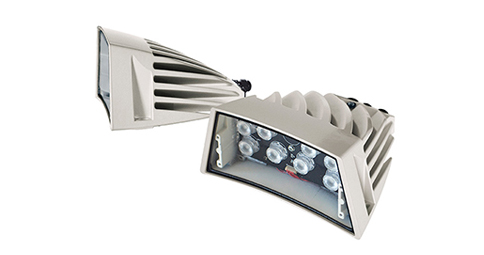

VideoTec - UPTIRN30WA00 - LED Illuminator for ULISSE, 30°, White Light, 24Vac - 12/24Vdc
Part number:
UPTIRN30WA00
Price:
LED illuminator for ULISSE, white light 30°, 24Vac-12/24Vdc
Features:
- Vandal-proof protection (IK10)
- Power supply 24Vac/12-24Vdc
- Beam patterns: 10°, 30°, 60°
- Wavelengths: 850nm, 940nm , white light
- Adjustable light intensity
- Adjustable built-in photocell
- IP66/IP67
| GENERAL | |
| Wavelengths | 850nm, 940nm, white light |
| Adjustable built-in twilight sensor for automatic activation and deactivation | |
| LED SMD | |
| MECHANICAL | |
| Die cast aluminum body | |
| Dimensions | 187x111x176mm (7.4x4.4x6.9in) |
| Unit weight | 1.5kg (3.3lb) |
| ELECTRICAL | |
| Supply voltage/Current consumption | • from 12Vdc a 24Vdc, 2.5A max • 24Vac, 2.5A max, 50/60Hz |
| ENVIRONMENT | |
| For indoors and outdoors installation | |
| Operating temperature | from -40°C (-40°F) a +60°C (140°F) |
| CERTIFICATIONS | |
| Electrical safety (CE) | EN60950-1, EN62368-1, IEC60950-1, IEC62368-1 |
| Electromagnetic compatibility (CE) | EN50130-4, IEC CISPR22 (Class A) , EN55022 (Class A), FCC Part 15 (Class A) |
| Outdoor installation (CE) | EN60950-22, IEC60950-22 |
| Photobiological safety (CE) | EN62471 |
| IP protection degree (EN60529) | • IP66 • IP67 |
| IK protection degree (EN62262) | IK10 |
| EAC certification |
