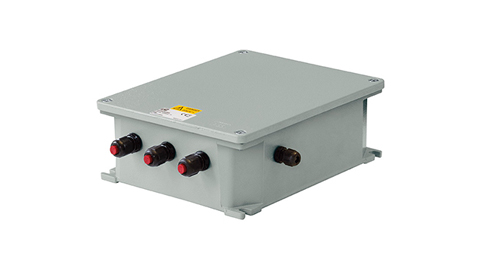

VideoTec - UPTIRPS230N - External Power Supply For ULISSE With UPTIRN Led Illuminators, 230Vac, 50/60Hz
Part number:
UPTIRPS230N
Price:
Sensor and Power supply for ULISSE with illuminator, IN 230Vac in waterproof metal box
Features:
- Sensor and Power supply for ULISSE with illuminator, IN 230Vac in waterproof metal box
- Power supply: 230Vac, 50/60Hz
- Control to synchronise illuminators with camera Day/Night switching
- Twilight sensor included
- IP66
| MECHANICAL | |
| Aluminum case, color RAL7035 | |
| Dimensions | See drawing |
| Unit weight | 6kg (13.3lb) |
| ELECTRICAL | |
| IN 230Vac, 50/60Hz - OUT 24Vac, 8A | |
| Consumption | 200W max (powering two spots on maximum power) |
| Built-in light sensitive switch for automatic ON/OFF operation | |
| Output Day/Night (STATUS) | dry contact NO |
| Cables input section | from 2.5mm² (14AWG) up to 4mm² (12AWG) |
| Cables signal section | from 0.14mm² (26AWG) up to 0.5mm² (20AWG) |
| ENVIRONMENT | |
| For indoors and outdoors installation | |
| IP66 | |
| Operating temperature | -40°C / +55°C |
| CERTIFICATIONS | |
| Electrical safety | EN60950-1, EN62368-1, IEC60950-1, IEC62368-1 |
| Electromagnetic compatibility | EN55022 (Class A), FCC Part 15 (Class A) |
| Immunity | EN50130-4 |
| Outdoor installation | EN60950-22, IEC60950-22 |
| EAC certification |
