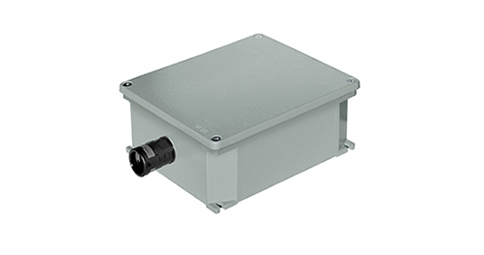

VideoTec - UPTJBUL - UL Junction Weatherproof Box
Part number:
UPTJBUL
Price:
UL junction weatherproof box
Features:
- For the power supply connection
- External mounting from the ULISSE unit
- IP66
| MECHANICAL | |
| Aluminum case, color RAL7035 | |
| Dimensions | 192x168x80mm (7.56x6.6x3.1in) |
| Unit weight | 1.6kg (3.5lb) |
| ELECTRICAL | |
| Nominal section of the cables used: from 0.75mm² (18AWG) up to 4mm² (12AWG) | |
| ENVIRONMENT | |
| For indoors and outdoors installation | |
| Operating temperature | from -40°C (-40°F) up to +55°C (131°F) |
| COMPLIANCE | |
| NEMA 4X | |
| CERTIFICATIONS | |
| EAC certification | |
| IP protection degree (EN60529) | • IP66 |
Name
Description
Size
Downloads
File
Datasheet
1.4mb
