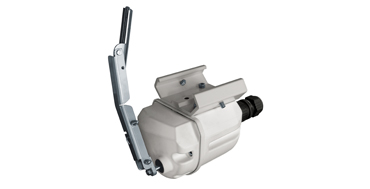

VideoTec - VIP6A1 - Wiper Kit 230Vac for HEG Housings
Part number:
VIP6A1
Price:
Wiper kit 230Vac
Features:
- Can be directly installed on the housing body
- Including the support for the washing pump injector
- Available in 24Vac and 230Vac, 7W max
- For HEG housings series
| MECHANICAL | |
| Enclosure from reinforced polypropylene | |
| Wiper blade constructed from stainless steel/aluminium | |
| RAL9002 Colour | |
| Dimensions (WxHxL) | 99x114x209mm (3.9x4.5x8.2in) (not comprehensive of blade) |
| Unit weight | 0.7kg (1,5lb) |
| ELECTRICAL | |
| Connector 3+1 PINS | |
| IN 230Vac, consumption 7W max | |
| IN 24Vac, consumption 7W max | |
| ENVIRONMENT | |
| Operating temperature | from -20°C (-4°F) up to +60°C (140°F) |
| CERTIFICATIONS | |
| IP66 | |
| EAC certification |
