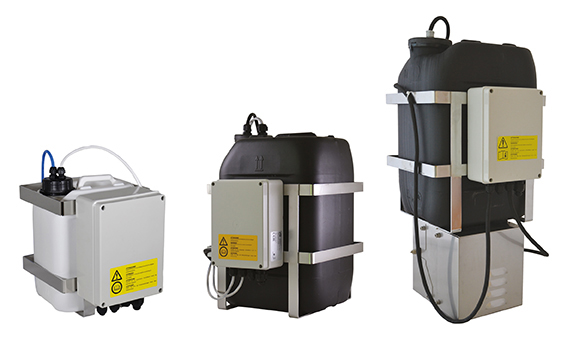

The Videotec WAS-WASPT is a wash kit consisting of a water tank with an integrated pump for PTZ cameras and camera housings equipped with wiper. This wide range of washers and tanks is available with capacities of 5 or 23 litres and delivery heads up to 30 metres. With the WASPT series it is possible to remotely control via RS-485 the wiper and the washer pump by using the DTWRX optional board. In the 11m (36ft) and 30m (98ft) delivery versions the lack of liquid in the tank is signalled following the automatic stop of the pump (except for 11m (36ft) version of WAS series). Pumps with 30m (98ft) delivery are available only in 230Vac or 120Vac With the use of the antifreeze liquid the minimum operating temperature goes down to -25°C (-13°F). Products with 5m (16ft) or 11m (36ft) delivery heads have an IP66 level of protection. The WASPT0V23L11M00 washer pump with tank of 23l (6gal) and delivery head 11m (36ft) is certified "Lloyd's Register Marine Type Approval", also in conjunction with the DTWRX card.
Features:
- Polyethylene tank with stainless steel cage
- Delivery head: 5m (16ft), 11m (36ft), 30m (98ft)
- Versions with alarm for the lack of liquid in the tank
- Also for third-party products
- Operating temperature: from -10°C (14°F) up to +60°C (140°F)
- Available voltages: 230Vac, 120Vac, 24Vac
- IP protection degree (EN60529): IP66 (only products with 5m (16ft) or 11m (36ft) delivery head)
- The WASPT0V23L11M00 washer pump with tank of 23l (6gal) and delivery head 11m (36ft) is certified "Lloyd's Register Marine Type Approval"
| Specification | |
| Washer pump, tank of 5l (1.3gal), 5m (16ft) delivery | |
| Polyethylene tank, stainless steel cage | |
| Dimensions (WxHxL) | 217x280x257mm (8.5x11x10.1in) |
| Cable glands | 1xM20 + 3xM16 |
| Unit weight | 3.5kg (7.7lb) (WAS), 3.8kg (8.4lb) (WASPT) |
| Float level switch (except for 11m (36ft) version of WAS series) | |
| Water tank capacity | 5l (1.3gal) |
| Delivery head | 5m (16ft) max |
| Tube length | 5m (16ft) |
| Supply voltage/Current consumption | • 230Vac, 0.3A, 50/60Hz • 120Vac, 0.6A, 50/60Hz • 24Vac, 1.8A, 50/60Hz |
| Alarm outputs | • Auto-powered: 1 • Dry contact: 1 |
| Operating temperature | • Maximum temperature: 60°C (140°F) • Minimum temperature with antifreeze liquid in solution : -10°C (14°F) • Minimum temperature with antifreeze liquid in solution (reduced performance and delivery height): -25°C (-13°F) |
| Electrical safety (CE): EN60950-1, EN62368-1 | |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032, (Class B), FCC Part 15 (Class B) | |
| Outdoor installation (CE) | EN60950-22 |
| IP protection degree (EN60529) | • IP66 |
| EAC certification | |
| Marine Certification | Lloyd's Register Marine Type Approval (only for the 11m (36ft) |
| version in the WASPT series) |
