VideoTec - WASNX3V10L20M00 - Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, 120Vac, delivery head up to 30m (98ft), with 20m antistatic water delivery pipe
Part number:
WASNX3V10L20M00
Price:

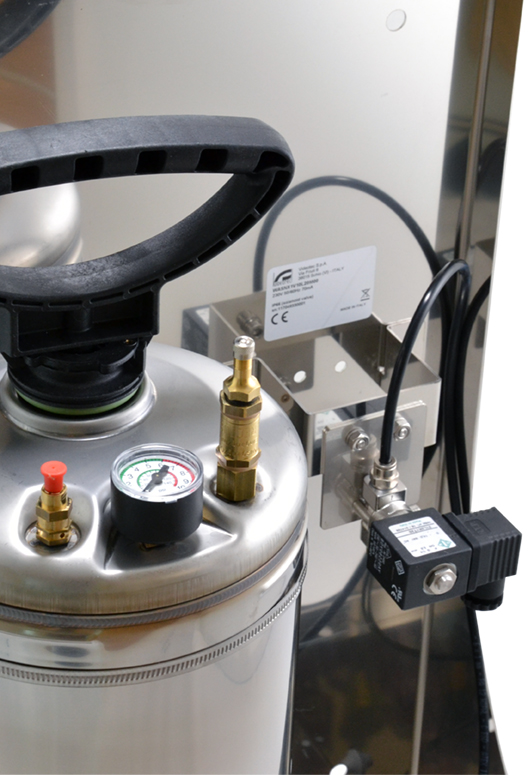

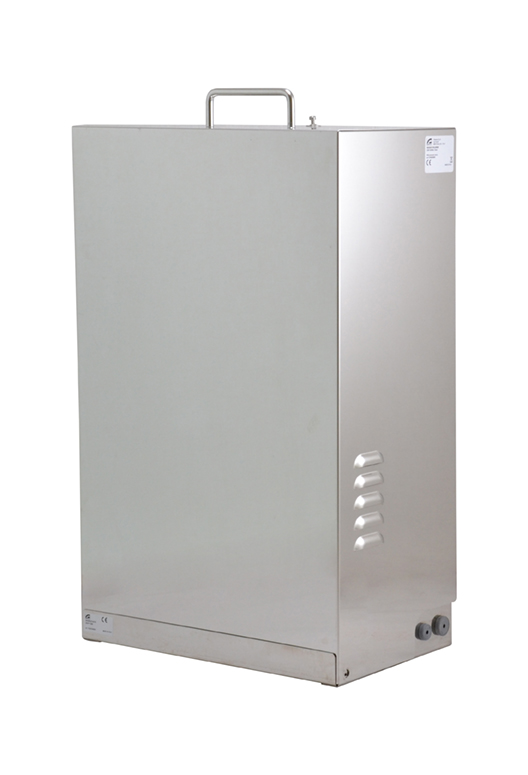

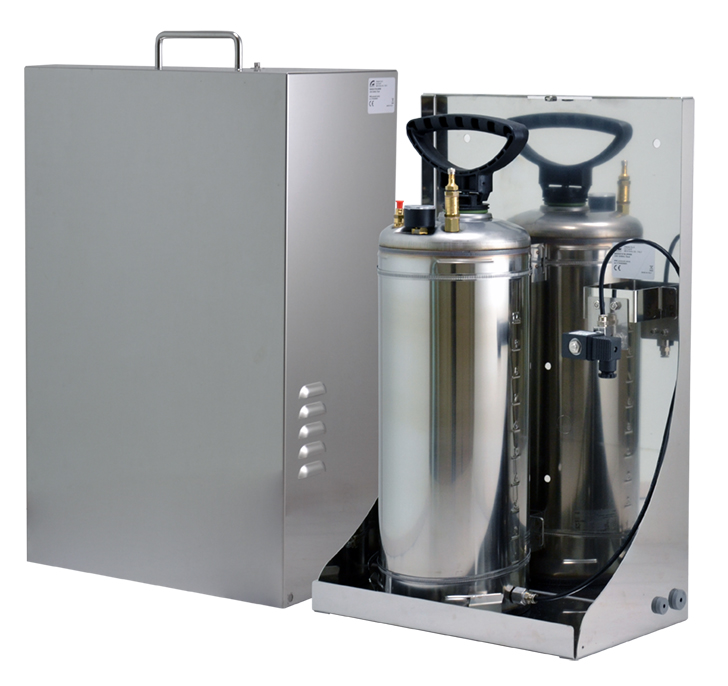

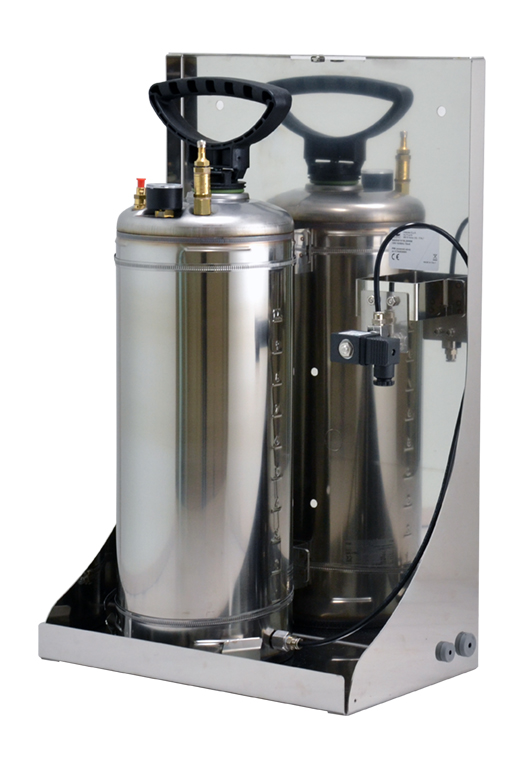

The WASNX washer pump is an important element for effective video surveillance because it guarantees sharp images in all environmental conditions and reduces the need for maintenance. The WASNX system is designed for operate in special environments such as marine, industrial, chemical and where the external conditions are highly corrosive. The wash system is also compatible with third-party products. The kit includes a stainless steel 10-litre tank with solenoid valve.
Features:
- Enclosure made of stainless steel AISI 316L
- Delivery head: 30m (98ft) (antistatic water delivery pipe supplied, 20m (66ft))
- Water tank capacity: 10l (2.6gal)
- Suitable for Videotec products or with third-party products
- Operating temperature: from -20°C (-4°F) up to +60°C (140°F)
- Available voltages: 230Vac, 120Vac, 24Vac
- IP protection degree (EN60529): IP65 (solenoid valve only, enclosure not rated)
| MECHANICAL | |
| External enclosure | Stainless steel AISI 316L |
| Antistatic water delivery pipe | Antistatic plastic |
| Antistatic water delivery pipe (supplied) | |
| Length | 20m (66ft) |
| Pressure | 6bar max |
| Delivery head | 20m (66ft), 4bar 30m (98ft), 6bar (with accessory tube, WEXTUB30) |
| Water tank capacity | 10l (2.6gal) |
| Dimensions (WxHxL) | 429x697x255mm (16.9x27.4x10in) |
| Unit weight | 18kg (40lb) |
| ELECTRICAL | |
| Supply voltage/Current consumption | 230Vac, 0.07A, 50/60Hz 120Vac, 0.13A, 50/60Hz 24Vac, 0.7A, 50/60Hz |
| ENVIRONMENT | |
| For indoors and outdoors installation | |
| Operating temperature of solenoid valve | from -20°C (-4°F) up to +60°C (140°F) |
| Operating temperature of device | depending on the solidification temperature of the liquid |
| Relative humidity | from 5% up to 95% |
| CERTIFICATIONS | |
| Electrical safety (CE) | EN60950-1 |
| Electromagnetic compatibility (CE) | EN61000-6-2, EN61000-6-3 |
| Outdoor installation (CE) | EN60950-22 |
| IP protection degree (EN60529) | IP65 (solenoid valve only, enclosure not rated) |
