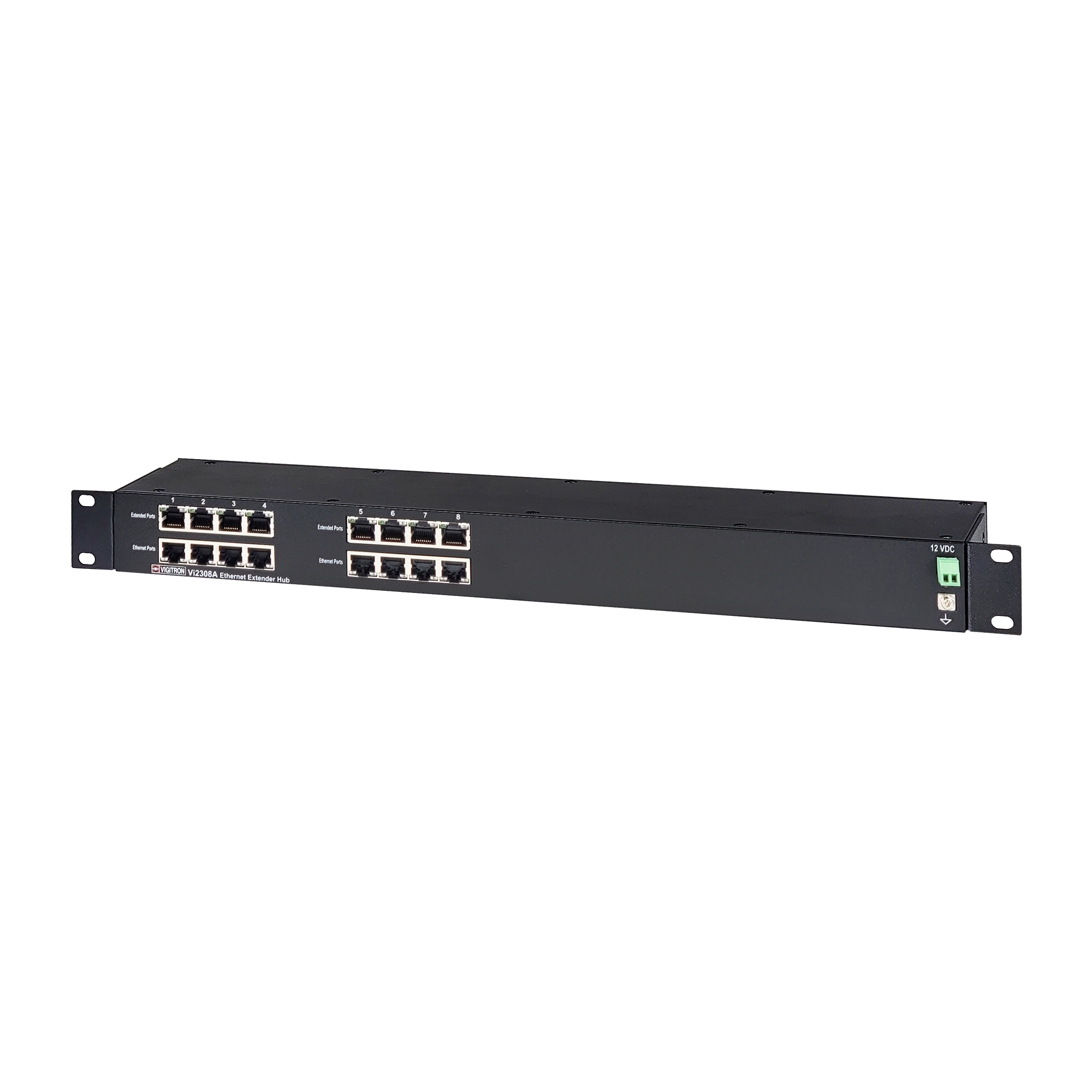

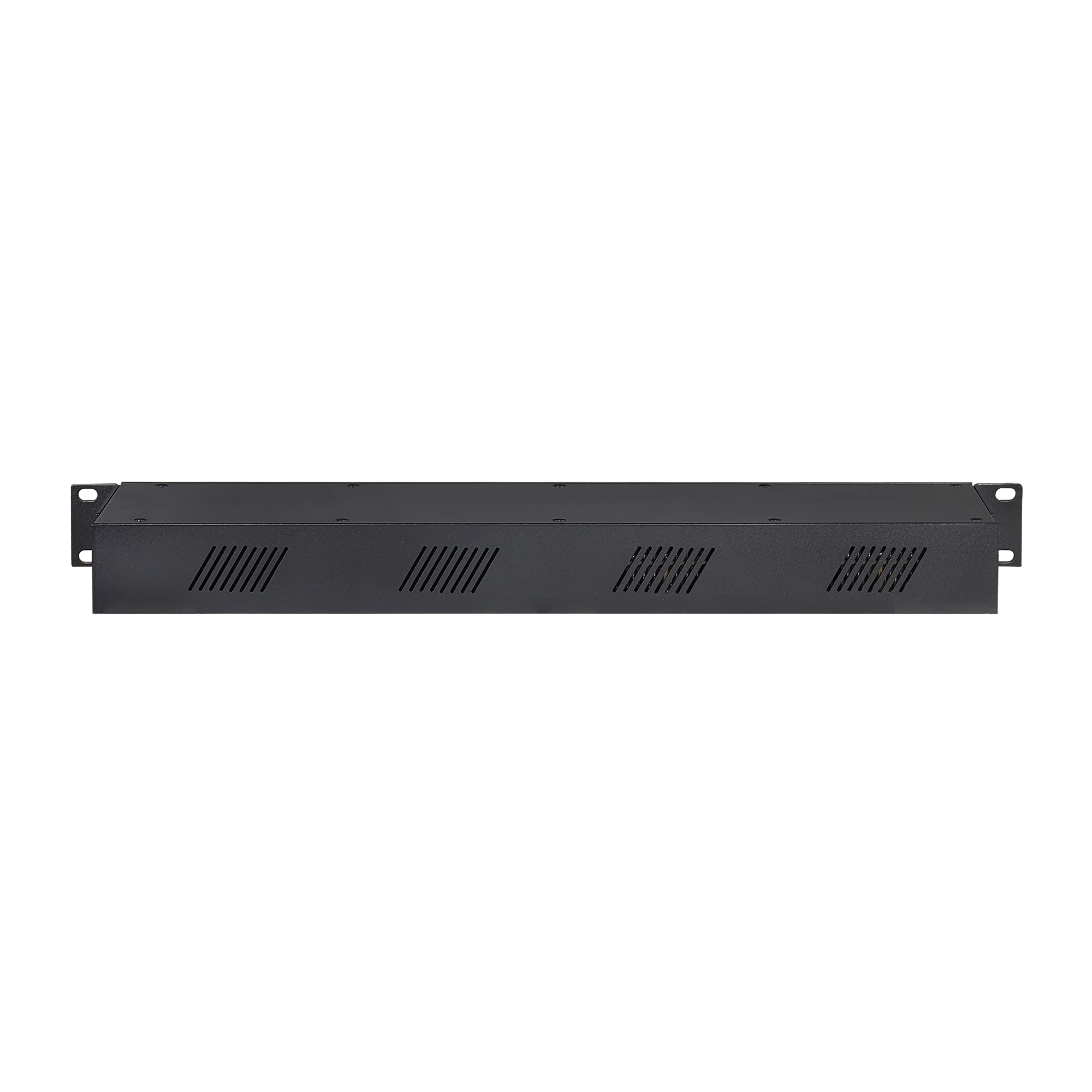

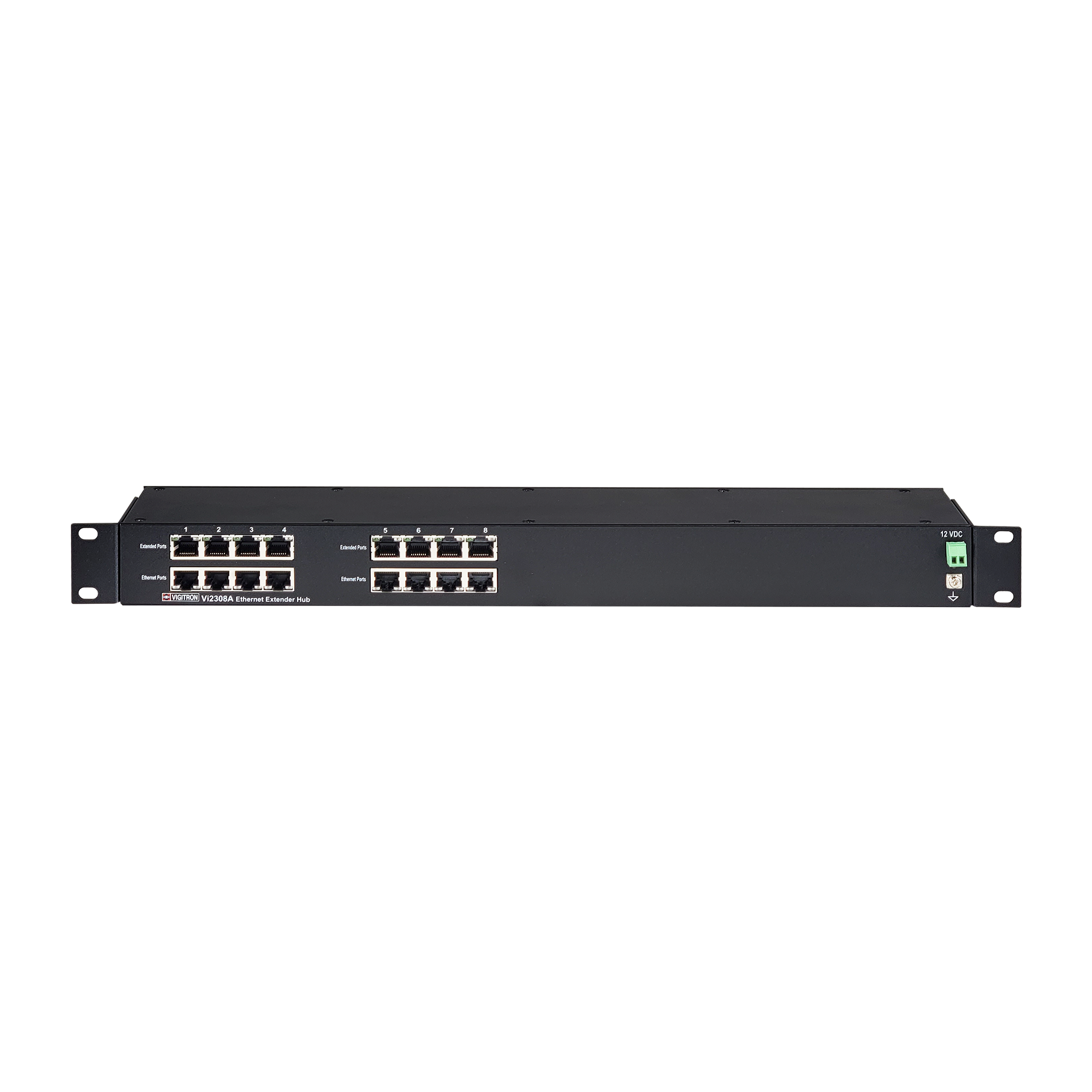

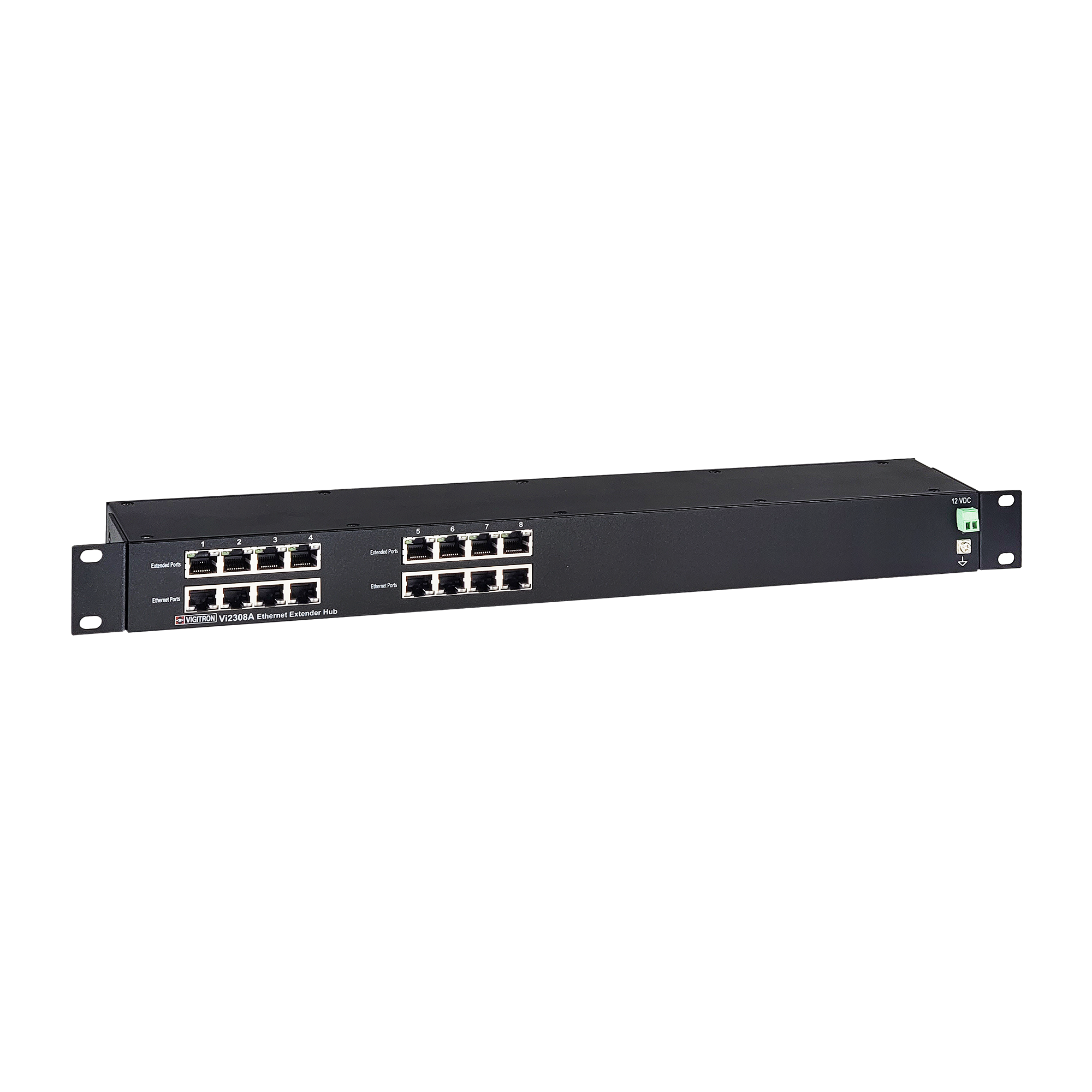

Vigitron's MaxiiCopper Vi2308A Extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances including high power PTZ domes with heaters and blowers. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss. The Vi2308A has a compact EIA 19" 1U rack design for easy installation.
Extended Pass-Through PoE (PTP) up to 74W eliminates the need for additional cost for remote site power. Type tested under NEMA-TS2 environmental standards for -40°C to +75°C, this extender is the perfect solution for remote signal and power transmission for warehouses, parking lots, campuses, casinos, and many more. Best of all, the Vi2308A is MegaPixel Certified (MPC), type tested to network packet performance standards, and major camera brand compatibility tested to assure you error-free and reliable operations. The Vi2308A provides eight extended ports to meet the requirements of a wide variety of CCTV system applications.
Installation cost savings, proven performance, and major camera brand compatibility all go into making the Vigitron's MaxiiCopper Vi23xxA series your best choice for extended distance Ethernet and power transmission.
Features:
- Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP
- Extended Pass-Through PoE (PTP) compatible with 802.3af, at, bt up to 74W
- MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frames
- Symmetric Bandwidth (SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL)
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Supports one-pair or four-pair UTP wires
- Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2
- Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS
| Electrical | |
| Ethernet Interface | Standard 10/100BaseT |
| Data Rate | Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distances |
| UTP | 100 Ohm +/- 20%, Cat5 or better 10BaseT: up to 3,000 ft. (914 m) 100BaseT: up to 2,100 ft. (640 m) |
| Power Consumption | 12 VDC@ 600 mA (max.) |
| Status LEDs | Power On Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 10/100BaseT |
| Connectors | Ethernet Interface: 8 x RJ-45 Connectors Extended Interface: 8 x RJ-45 Connectors Power: 2-pin Pluggable Terninal Block |
| RFC | 2544 TCP/IP Packet Transmission |
| PoE Compatibility | IEEE 802.3af, at, bt PoE Standards up to 74W |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| Jumbo Frame Support | Up to 9,600 bytes |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emissions | EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -40°C to +85°C |
| Mechanical | |
| Dimensions | 0.97x1.75x2 in., 2.5x4.4x5 cm (HxWxL) |
| Weight | 0.15 lb, 67 g |
| Material | Extruded Aluminum |
| Accessories | |
| Rack mount brackets | |
