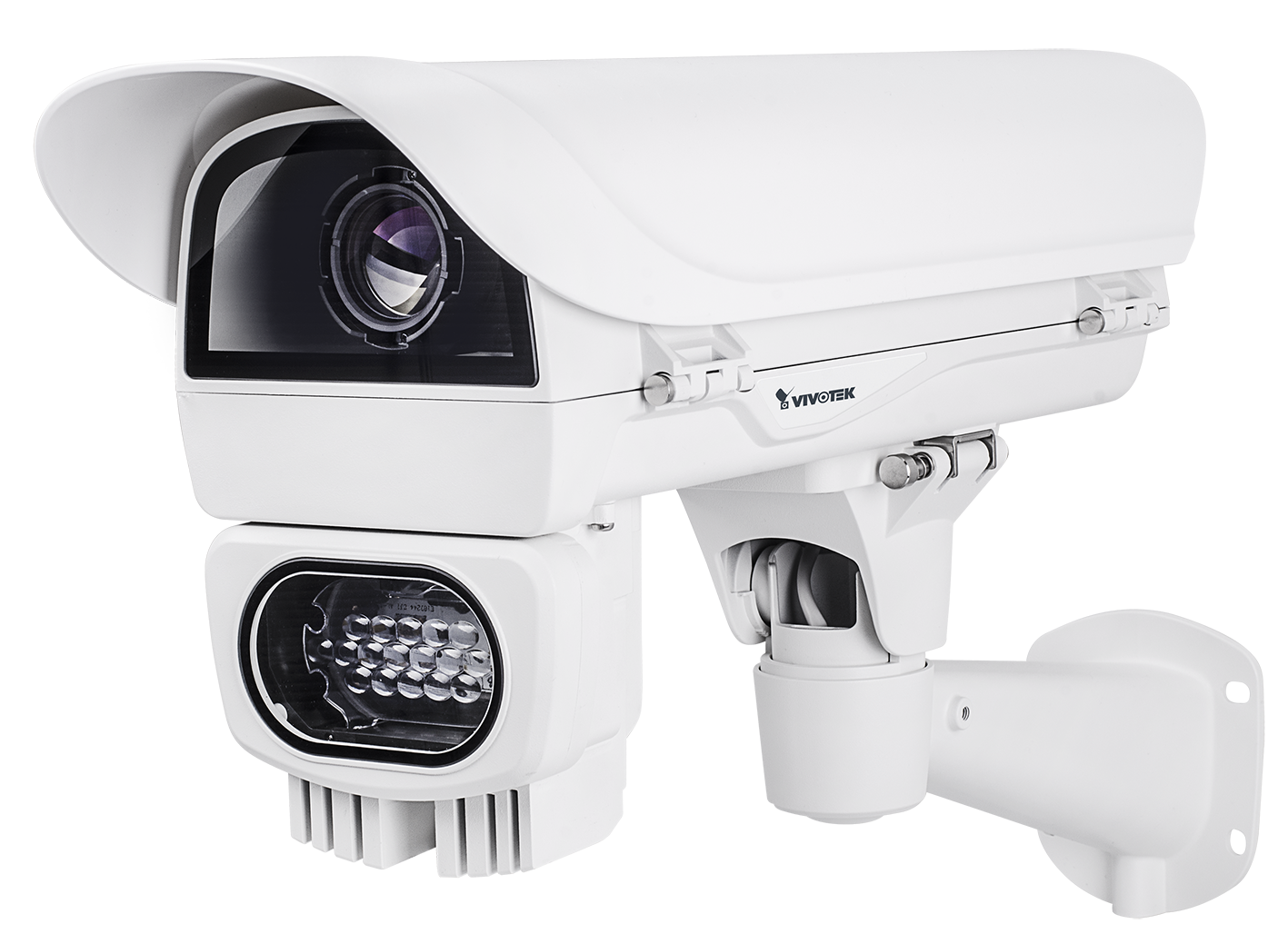

AE-23A-P Outdoor Enclosure - Supreme Series
Part number:
AE-23A-P
Price:
- • Outdoor Enclosure - Supreme Series
- • Weather-proof IP68-rated Enclosure
- • Vandal-proof IK10-rated Cast Aluminum Housing
- • Window Demister Heater and Fan
- • Adjustable Sunshield
- • Side-Opening Alarm Switch
- • VAIR Illuminators
| Input Voltage | 24V AC/DC* (requiring 26~28VDC input for Snap-in IR) |
| Power Output | AC/DC 24V*1, DC 12V*1 |
| Max. Output Power Budget | 80W |
| Power Consumption | Window Heater: 10W, Fan: 2W, Others: 2W, IR LEDs: 48W |
| IR LEDs | VAIR LED 48W, 10~40°, 150~350 m |
| Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F), -20°C ~ 50°C (-4°F ~ 122°F) (IR ON) |
| Windows Heater ON/OFF | ≤30°C (86°F) ON, ≥35°C (95°F) OFF |
| Fan ON/OFF | ≥40°C ON, ≤35°C OFF |
| Waterproof IP Rating | IP68 |
| Vandal Proof | IK10; Impact Rated on Cast Aluminum Housing |
| Supported Cameras | All VIVOTEK Box Cameras |
| Included Accessories | Quick Installation Guide, Screw Kit, Wall Bracket (AM-21E), Sun Shield (AE-2S1), 48W IR (AI-109) |
| Mount Type | Wall Mount, Ceiling Mount, Corner Mount, Standing Mount |
Name
Description
Size
Downloads
File
Spec_AE-23A-P_EN_0.pdf
0.4mb
File
Certificate_Enclosure_AE-23A_AE-23L_CE_0.pdf
0.2mb
File
Certificate_Enclosure_AE-23A_AE-23L_FCC.pdf
0.1mb
File
Certificate_Enclosure_AE-23A_AE-23L_IK10.pdf
0.2mb
File
Certificate_Enclosure_AE-23A_AE-23L_IP68.pdf
0.2mb
