Focal Length Coverage
Thoughtfully crafted to meet a variety of needs, each model is accompanied by both outdoor and indoor versions, simplifying project installations for enhanced convenience.
The shadowed areas within the photos visually approximate the coverage for each range, giving a clear representation of the surveillance capabilities across different focal lengths.
Designed for Broad and Easy Installation
Experience the seamless installation process with our 87-V3 Series cameras. These cameras offer standard junction box mounting holes, ensuring unmatched flexibility in setup.
Flagship Housing for Better Weatherproofing
Meticulously designed for superior weatherproofing. These features ensure that the camera is prepared to face diverse weather conditions, maintaining peak performance. Prioritize reliability in any environment with our advanced housing technology.
Simplifying Inventory Management and Installation
Effortlessly manage your inventory with our universal accessories, shared across multiple product lines, including the 65v2, 67v2, 91v2, and the latest 87V3 series. This streamlined approach not only ensures compatibility and versatility but also facilitates a seamless transition between products, minimizing the learning curve for our resellers and distributors.
Features:
- 30 fps @ 2560x1920
- H.265 Compression Technology with Smart Stream III
- Installation-friendly Design
- IP54-rated Protection
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Built-in IR Illuminators up to 50M with Smart IR III
- Signed Firmware and Secure Boot
- AI-powered Smart Motion Detection and Smart VCA
- Cyber Protection via Trend Micro IoT Security
| Technical Specifications | |
| System Information | |

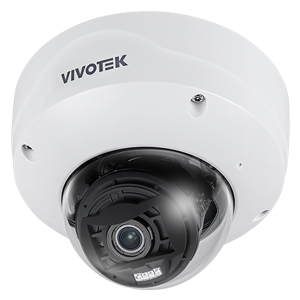

| Model | FD9187-HT-V3 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | eMMC 8 GB |
| RAM | DDR4 2 GB |
| Camera Features | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5 mm (Short range) f = 7 ~ 22 mm (Middle range) |
| Aperture | F1.83(W) ~ F3.32(T) (Short range) F1.70(W) ~ F2.90(T) (Mid-range) |
| Iris Type | P-iris |
| Field of View | Short range 100.1° ~ 29.9° (Horizontal) 71.8° ~ 22.4° (Vertical) 135.2° ~ 37.4° (Diagonal) |
| Mid-range | |
| 39.3° ~ 15.5° (Horizontal) | |
| 28.8° ~ 11.6° (Vertical) | |
| 50.8° ~ 19.4° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4 |
| Minimum Illumination | Short range 0.04 lux @ F1.8 (Color) <0.005 lux @ F1.8 (B/W) 0 lux with IR illumination on Mid-range 0.035 lux @ F1.7 (Color) <0.005 lux @ F1.7 (B/W) 0 lux with IR illumination on |
| Pan Range | ±175° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seaml ess Recording to MicroSD/ SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, Micro USB* , pixel calculator *Requires Wi-Fi dongle and Micro B converter |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (WDR Pro on) |
| 30 fps @ 2560x1440 (WDR Pro on) | |
| 60 fps @ 1920x1080 (WDR Pro off) | |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Main Stream | 30 fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3); |
| 30 fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9) | |
| 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) | |
| 2nd Stream | 30 fps @ 2560x1920, 1600x1200, 1280x960, 640x480 (4:3); |
| 30 fps @ 2560x1440, 1920x1080, 1600x904, 1280x720,1360x768, 640x360 (16:9) | |
| 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) | |
| 3rd Stream | 30 fps @ 1280x960, 640x480 (4:3); |
| 30 fps @ 1280x720, 640x360 (16:9); | |
| 60 fps @ 1280x720, 640x360 (16:9) | |
| S/N Ratio | 70 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overl ay, video orientation (f l ip, mirror, rotation), day /night settings; Il l uminators: il l uminators, anti-overexposure, VCA-based Smart IR III; Image settings: white bal ance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure l evel , iris adjustment, exposure time, gain control , iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; pixel cal cul ator; Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Audio Interface | Built-in microphone |
| Effective Range | External microphone Input External line output |
| Network | 5 meters |
| Users | Live viewing for up to 10 clients |
| Security | Access l ist, Account block , Audit l og, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); ReSearch Extraction; Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| AI-powered Image Enhancement | Smart IR III |
| Solution Integration | |
| Applications | Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | Default IO RJ-45 cable connector f or 10/100 Mbps PoE network connection Built-in Microphone Audio line input Audio line output DC 12V power input Digital input*1 Digital output*1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) Micro USB Module I/O (AO-011)* Digital input *1 Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) AC 24V power input *Requires extension I/O module kit (AO-011 I/O Kit f or dome cameras) |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V*, DC 12V, IEEE 802.3af PoE Class 0 (Power Redundancy) *Requires extension I/O module kit (AO-011) |
| Power Consumption | 12.95 W |
| Dimensions | ø 173.6 x 122.6 mm |
| Weight | 1.10 kg |
| Certifications | EMC: CE (EN 55032/EN 55035 Class B, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032/BS EN 55035 Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), IC (ICES-003 Issue 7); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD, (EN 62368-1), UKCA (BS EN IEC 62368-1); Environment:IP54 , IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety : CNS 14336-1) |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) (IR on/off) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only ) |
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, product labels, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, conduit bracket, I/O cable |
