FD9391-EHTV - EOL Replacement: FD9391-EHTV-V2
This product has been discontinued. Replacement: FD9391-EHTV-V2
Part number:
FD9391-EHTV
Price:

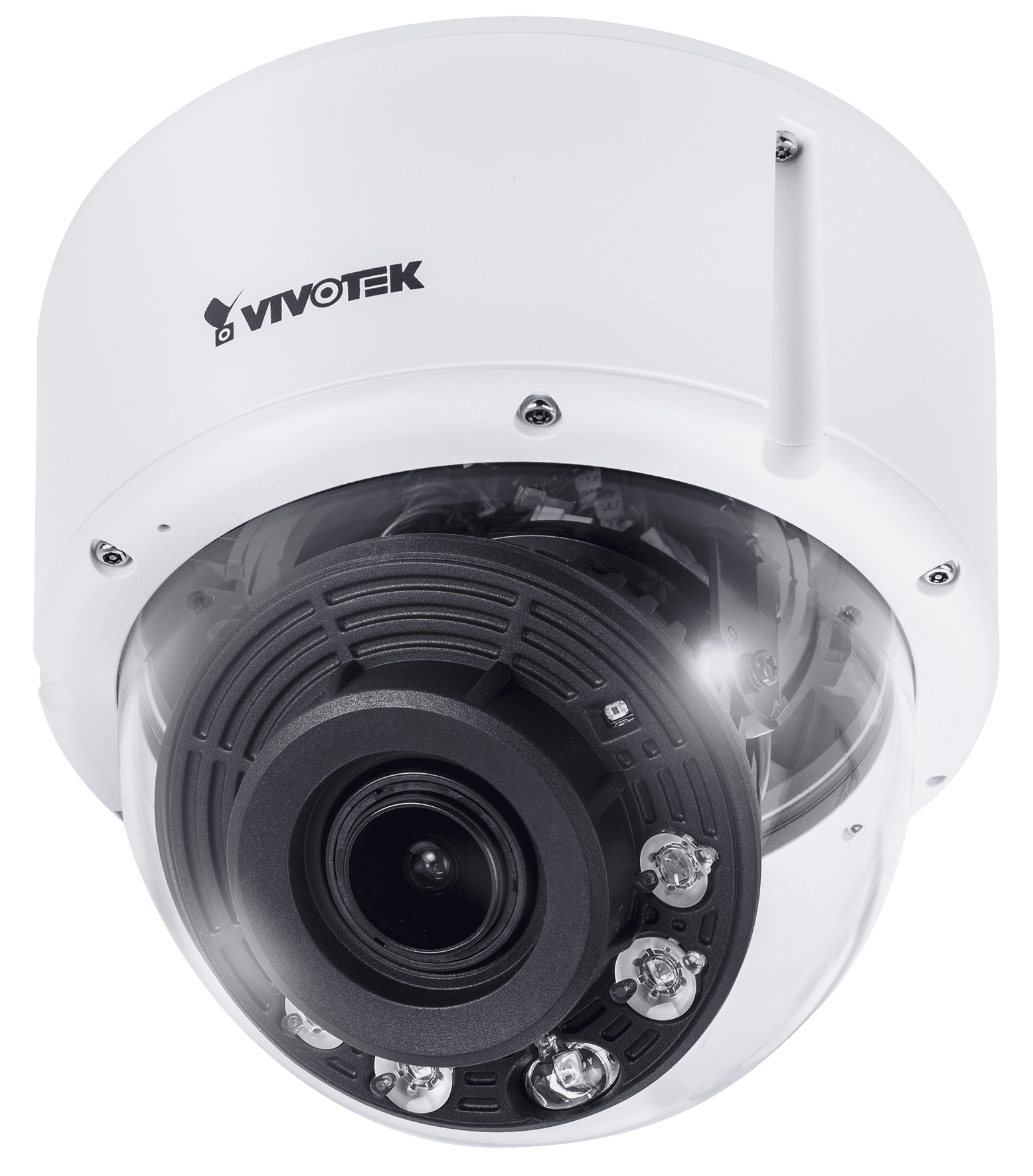

The FD9391-EHTV is the new flagship outdoor dome network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840 x 2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the FD9391-EHTV is capable of capturing the highest quality images in high contrast environments.
FD9391-EHTV also supports standard 1920x1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the FD9391-EHTV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality. Protecting all these features is the FD9391's IP66, IP67, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.
Features :
- Image Sensor 1/2" Progressive CMOS
- Max. Resolution 3840x2160
- Lens Type Vari-focal, Remote Focus
- Focal Length f = 3.9 ~ 10 mm
- Aperture F1.5 ~ F2.7
- Iris type P-iris
- Field of View 45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Minimum Illumination 0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W), 0 Lux with IR illumination on
- Day/Night Removable IR-cut filter for day & night function
- Pan Range 353°
- Tilt Range 80°
- Rotation Range 180°
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
- IR Illuminators Built-in IR Illuminators up to 50 meters with Smart IR II
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
- Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
- Maximum Streams 3 simultaneous streams
- S/N Ratio 60.5 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, video rotation, AE speed, DIS, HLC
- Audio Capability Two-way Audio
- Compression G.711, G.726
- Interface Built-in Mic, External microphone input, External line output
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS/SSL
- Interface 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45)
- ONVIF Supported, specification available at www.onvif.org
- Smart Motion Detection Five-window video motion detection, human detection, time filter
- Alarm Triggers Motion detection,manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MircoSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
- Connectors RJ-45 cable connector for Network 10/100/1000 Mbps PoE connection*1, Audio input*1, Audio output*1, DC 12V power input*1, AC 24V power input *1, Digital input*1, Digital output*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3at Class4 PoE, AC 24V / DC 12V, Power redundancy
- Power Consumption Max: 25 W
- Dimensions Ø 155 x 138 mm
- Weight 1,306 g (2.88 ob)
- Casing IP66, IK10
- Safety Certifications CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL
- Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
- Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
- Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
- Humidity 90%
- Warranty 36 Months
- Operating System Microsoft Windows 8/7
- Web Browser Mozilla Firefox 7~43 (streaming only)
- Internet Explorer 10/11
- Other Players VLC: 1.1.11 or above
- Quicktime: 7 or above
- Waterproof connectors, conduit ring, quick installation guide, warranty card, alignment sticker, desiccant bags
| Technical Specifications | |
| Model | FD9391-EHTV |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 1 GB |
| Camera Features | |
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 3840x2160 (8MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.9 ~ 10 mm |
| Aperture | F1.5 ~ F2.7 |
| Iris type | P-iris |
| Field of View | 119° ~ 45° (Horizontal)63° ~ 25° (Vertical) |
| 142° ~ 52° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50meters with Smart IR II, IR LED*5 |
| Minimum Illumination | 0.02 lux @ F1.5 (Color) 0.01 lux @ F1.5 (B/W)0 lux with IR illumination on |
| Pan Range | 353° |
| Tilt Range | 80° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom(4x on IE plug-in,12x built in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDKC card and recording to network- attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 |
| 120 fps @ 1920x1080 | |
| 3 video streams (Up to 8 configurable | |
| Maximum Streams | |
| profiles) | |
| S/N Ratio | 61 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| General settings: video title and time stamp overlay, video orientation (flip, mirror, | |
| rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image | |
| settings: white balance, image adjustment(brightness, contrast, saturation, sharpness, | |
| Image Settings | gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC,HLC, exposure control (exposure level, iris |
| adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: | |
| zoom, focus; Privacy mask; Scheduled profile settings | |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G.711, G.726 |
| Built-in microphone | |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Access list, digest authentication, HTTPS , | |
| Security | IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute |
| force attack event, cyberattack event, quarantine event), user access log, user account management | |
| 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, | |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3,IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/ |
| DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP | |
| Interface | 10 Base-T/100 Base-TX Ethernet/1000 Base-T(RJ-45) *It is highly recommended to use standardCAT5e & CAT6 cables which are compliant |
| with the 3P/ETL standard. | |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, people detection, time filter |
| Smart VCA | Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face |
| detection, crowd detection, running detection | |
| VADP Package | Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT |
| Security (3-year free trial) | |
| Alarm and Event | |
| Audio detection, camera tampering | |
| detection, cybersecurity events (brute | |
| force attack event, cyberattack event, | |
| Event Trigger | quarantine event), digital input, manual |
| trigger, motion detection, periodical trigger, recording notification, SD card life | |
| expectancy, shock detection, system boot | |
| Event Action | Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| RJ-45 cable connector for 10/100/1000Mbps PoE network connection Audio line input | |
| Connectors | Audio line output DC 12V power input AC 24V power input |
| Digital input Digital output | |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3at Class 4 PoE, DC 12V, AC 24V(Simultaneous Power Redundancy |
| Supported) | |
| PoE : | |
| Power Consumption | DMCa x1. 22V4:.8 W |
| Max. 21 W AC 24V: Max. 23.4 W | |
| Dimensions | Ø 155 x 138 mm |
| Weight | 1.3 kg |
| EMC: CE (EN 55032 Class A, EN55024), FCC | |
| (FCC Part 15 Subpart B Class A), RCM (AS/ | |
| NZS CISPR 32 Class A), VCCI (VCCI-CISPR | |
| 32 Class A); Safety: UL (UL 62368-1), CB (IEC/ | |
| Certifications | EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); |
| Environment: IK10 (IEC 62262), IP66/67 (IEC | |
| 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252) | |
| Starting Temperature:-40°C ~ 60°C (-40°F ~ 140°F) | |
| Operating Temperature | Working Temperature:-50°C ~ 60°C (-58°F ~ 140°F) (IR off)-50°C ~ 50°C (-58°F ~ 122°F) (IR on) |
| Humidity | 95% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, desiccant bag, water proofaccessory bag, conduit ring |
