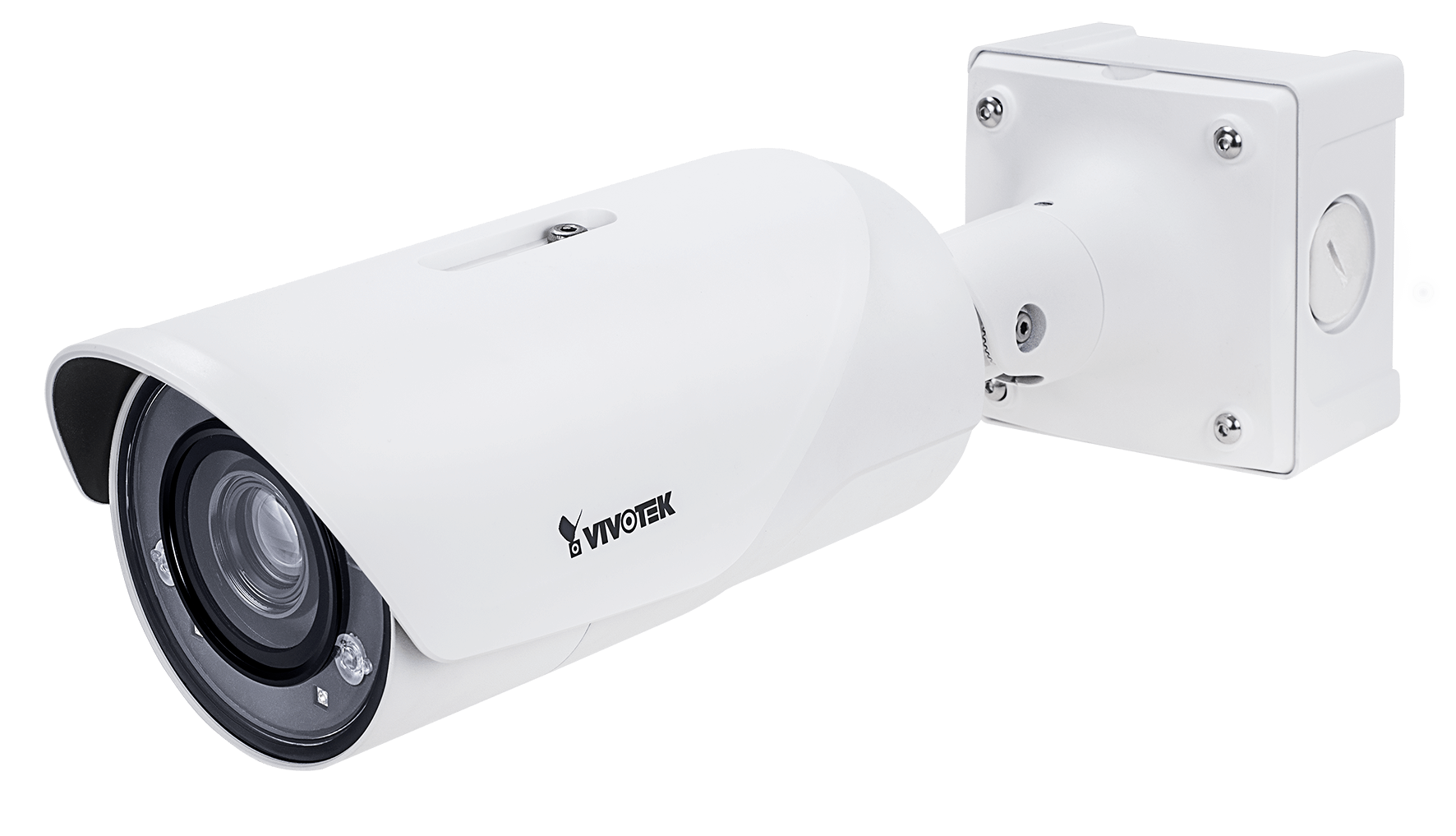

VIVOTEK’s IB9365-LPR camera is a standalone LPR camera system, featuring a built-in license plate recognition system as well as white-list and black-list for license plate verification. It can read the markings of multiple countries or states simultaneously (e.g., Singapore and Malaysia; Texas, Oklahoma and neighboring states). It also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The camera is ideal for use in parking access control and Stop & Go toll systems.

Additionally, the IB9365-LPR employs VIVOTEK’s SNV II and Smart IR II technology, is capable of capturing the highest quality images in both low light and high contrast environments, and offers the best in nighttime surveillance technology. The IR illuminators now align with the focus angle of the remote focus lens to provide the best IR image quality for any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range.

Supported Both Simple and Complex Scenarios:
The IB9365-LPR camera can work as an embedded access control application based on LPR software. It can trigger digital output device on this camera when a number plate is recognized and matched the data in list such as white list. This IB9365-LPR camera can convert number plates into Wiegand signals to work with access control system.


List Management for Number Plate Verification:
Users can manage license plate lists for various purposes, such as a white list that triggers a welcome message, a black list that triggers an alarm, and an all plates list for access control management. Multiple lists are supported, with no limit on the number of supported license plates.


Stop & Go Outdoor Parking Solution:
The IB9365-LPR adopts VIVOTEK’s SNV II (Supreme Night Visibility II), WDR Pro II and Smart IR II technology. With a 12-40mm focal length lens, this advanced camera is suitable for vehicle detection in outdoor scenarios such as parking areas or gas stations, in which surveillance over longer distances or in low-light conditions is necessary.


Easily Integrated with 3rd Party Systems:
This IB9365-LPR camera can export all license plate recognition results and the related LPR events. It can be easily integrated with 3rd party systems, such as parking management systems, toll collection systems or weighbridge management systems, by sending XML or JSON messages.

Features :

• Image Sensor 1/2" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type Motorized, Vari-focal, Remote Focus
• Focal Length f = 12 ~ 40 mm
• Aperture F1.8
• Auto-iris P-iris
• Field of View 12° ~ 35° (Horizontal), 7° ~ 19° (Vertical), 14° ~ 40° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro II
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR illuminators, effective up to 100 meters with Smart IR II, IR LED*4
• Minimum Illumination 0.06 Lux @ F1.8 (Color), 50IRE, 0.03 Lux @ F1.8 (Color), 30IRE, <0.01 lux @ F1.8 (B/W), 0 Lux with IR illumination on
• Tilt Range 90°
• Rotation Range 180°
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Built-in 16GB MicroSD card for LPR images, Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 60 fps @ 1920x1080
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66 dB
• Dynamic Range 140 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip and mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Embedded Software VIVOTEK ANPR, VADP Package, Trend Micro IoT Security
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events
• Camera: Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
• ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, wiegand protocol supported
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, AC 24 V, DC 12 V, Digital input *2, Digital output *2, BNC out
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 0, AC 24V, DC 12V
• Power Consumption
• PoE : Max. 24.8 W (Heater on), Max. 11.9 W (Heater off)
• DC 12V: Max. 19.5 W (Heater on), Max. 9 W (Heater off)
• AC 24V: Max. 21.8 W (Heater on) Max. 10.5 W (Heater off)
• Dimensions Ø 121 x 121 x 444 mm (w/ junction box), Ø 121 x 121 x 380 mm (w/o junction box)
• Weight 2,116 g (w/ junction box), 1,649 g (w/o junction box)
• Casing IP66, IK10 (Metal Housing), NEMA 4X
• Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
• Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
• Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F), Working Temperature (IR on): -30°C ~ 50°C (-22°F ~ 122°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, warranty card, screw pack, alignment sticker, junction box
