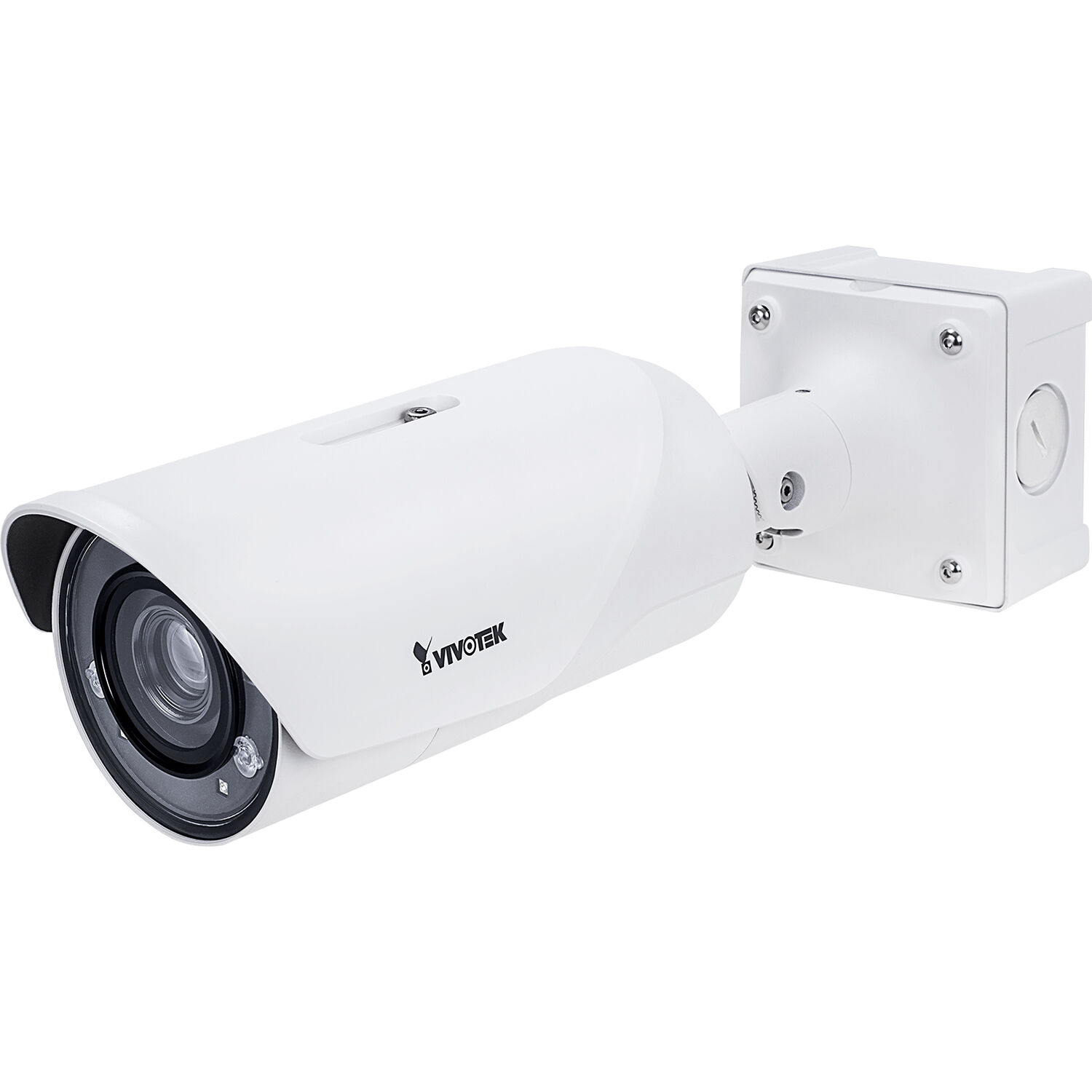

VIVOTEK’s IB9365-LPR camera is a standalone LPR camera system, featuring a built-in license plate recognition system as well as white-list and black-list for license plate verification. It can read the markings of multiple countries or states simultaneously (e.g., Singapore and Malaysia; Texas, Oklahoma and neighboring states). It also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The camera is ideal for use in parking access control and Stop & Go toll systems.

Additionally, the IB9365-LPR employs VIVOTEK’s SNV II and Smart IR II technology, is capable of capturing the highest quality images in both low light and high contrast environments, and offers the best in nighttime surveillance technology. The IR illuminators now align with the focus angle of the remote focus lens to provide the best IR image quality for any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range.

Features :

• The White LED design in IB9365-LPR-W even enables the reading of color license plates at night without optional illuminators
• Embedded Access Control Application Based on LPR Software
• Supports License Plates from over 70+ Countries
• Black and White Lists for License Plate Verification
• Centralized List Management in Single Camera
• Fully Integrated with VAST 2
• Various Open APIs Available for 3rd Party Integration
• Suitable for Outdoor Scenarios with SNV II and WDR Pro II Technology
• Trend Micro IoT Security
• Supports Wiegand Protocol for Access Control Applications
• Supports Hazard ID Recognition
• Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated Housing

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Max. Resolution - 1920x1080
• Lens Type - Motorized, Vari-focal, Remote Focus
• Focal Length - IB9365-LPR-W: f = 4 ~ 9 mm, f = 12 ~ 40 mm
• Aperture - IB9365-LPR-W(4-9mm): F1.3
• Iris Type - P-iris
• Field of View - IB9365-LPR-W(4-9mm): 100° ~ 46° (Horizontal),52° ~ 26° (Vertical),120° ~ 53° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro II
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• IR Illuminators - IB9365-LPR-W: 6100K White LED*2
• Minimum Illumination - 0.06 Lux @ F1.8 (Color), 50IRE, 0.03 Lux @ F1.8 (Color), 30IRE, <0.01 lux @ F1.8 (B/W)
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Built-in 16GB MicroSD card for LPR images Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording
