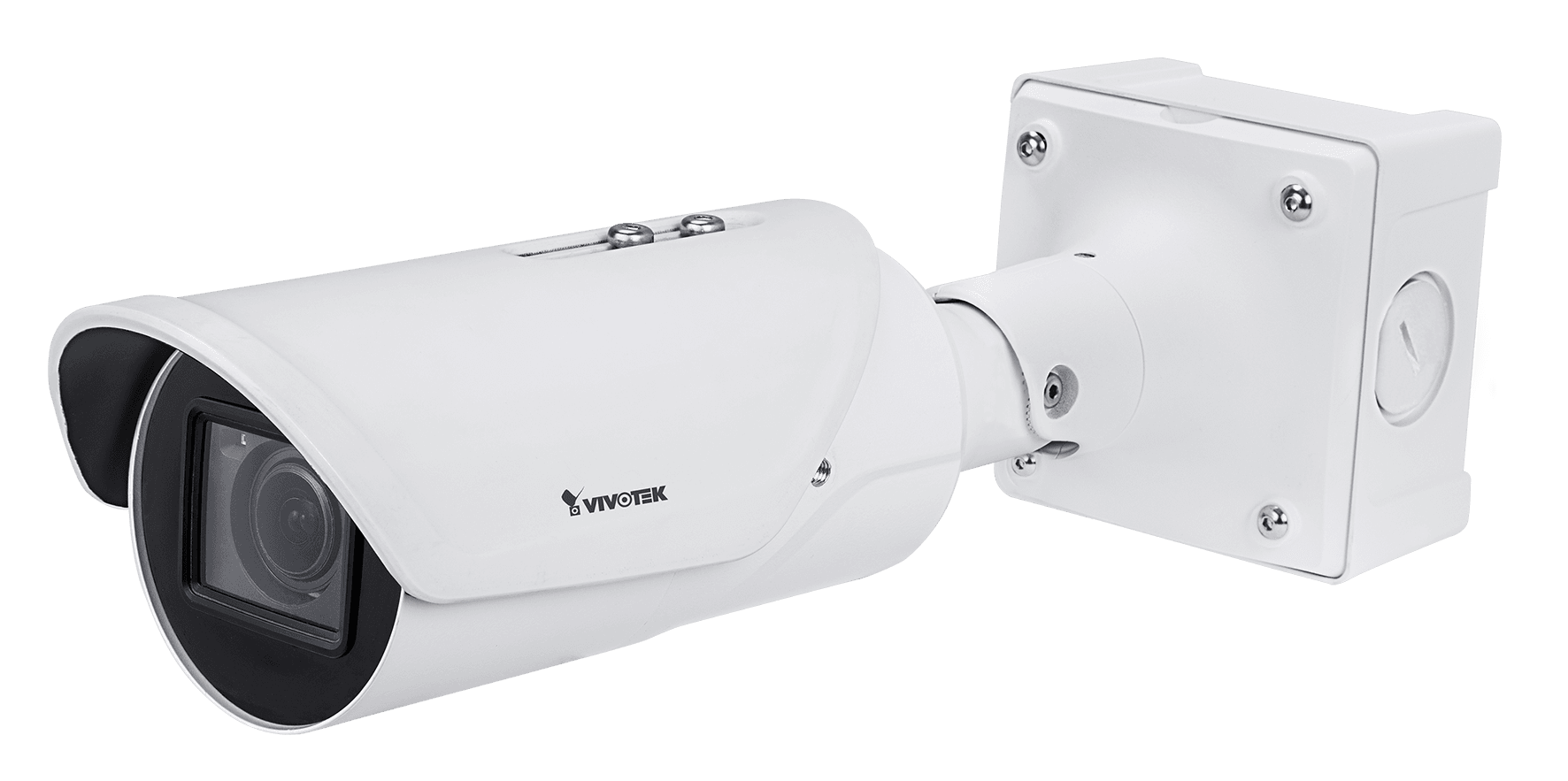

VIVOTEK’s IB9387-LPR-W camera is a standalone LPR camera system, featuring built-in license plate recognition software as well as a white-lists and black-lists for advanced license plate verification. It can read multiple countries or states simultaneously, e.g. Singapore and Malaysia; Texas, Oklahoma and the neighboring states. It converts number plates into Wiegand signals for use with an access control system, and also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The system is ideally applied for parking access control and Stop & Go toll systems or any LPR applications where a vehicle stops, or almost comes to a complete stop.
Features:
- Embedded Access Control Application Based on LPR Software
- Supports License Plates from over 70+ Countries
- Black and White Lists for License Plate Verification
- Centralized List Management in Single Camera
- Fully Integrated with VAST 2
- Various Open APIs Available for 3rd Party Integration
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Supports Hazard ID Recognition
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Supported Both Simple and Complex Scenarios:
The IB9387-LPR-W camera can work as an embedded access control application based on LPR software. It can trigger digital output device on this camera when a number plate is recognized and matched the data in list such as white list. This IB9387-LPR camera can convert number plates into Wiegand signals to work with access control system.
List Management for Number Plate Verification:
Users can manage license plate lists for various purposes, such as a white list that triggers a welcome message, a black list that triggers an alarm, and an all plates list for access control management. Multiple lists are supported, with no limit on the number of supported license plates.
Easily Integrated with 3rd Party Systems
This IB9387-LPR-W camera can export all license plate recognition results and the related LPR events. It can be easily integrated with 3rd party systems, such as parking management systems, toll collection systems or weighbridge management systems, by sending XML or JSON messages.
System Information
| Model | IB9387-LPR |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256MB |
| RAM | 1GB |
Camera Features
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5 mm |
| Aperture | F1.4 ~ F2.8 |
| Auto-iris | P-iris |
| Field of View | 30° ~ 100° (Horizontal) 23° ~ 72° (Vertical) 38° ~ 135° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6 |
| Minimum Illumination | 0.06 Lux @ F1.4 (Color) <0.01 Lux @ F1.4 (B/W) 0 Lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Built-in 16GB MicroSD card for LPR images Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
Video
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 30 fps @ 2560x1440 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 50 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog |
Audio
| Audio Capability | Two-way Audio (full duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input External line output |
Network
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
Solution Integration
| Video Motion Detection | Five-window video motion detection |
| Embedded Software | VIVOTEK ANPR |
| VADP Package | Genetec package, Trend Micro IoT Security |
Alarm and Event
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Camera: Event notification via digital output, audio clip, email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card ANPR Software: Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, send event to Wiegand middleware board |
General
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection Audio input Audio output AC 24V power input (optional) DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 DC 12V AC 24V (optional) (Redundant Power) |
| Power Consumption | PoE: Max. 12 W DC 12V: Max. 10 W AC 24V: Max. 11.5 W |
| Dimensions | 118 x 118 x 294 mm |
| Weight | 1,254 g |
| Casing | IP66, IP67, IK10 (Metal Housing) |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4 |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
| Warranty | 36 months |
System Requirements
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
Included Accessories
| Others | Quick installation guide, warranty card, screw pack, alignment sticker |
