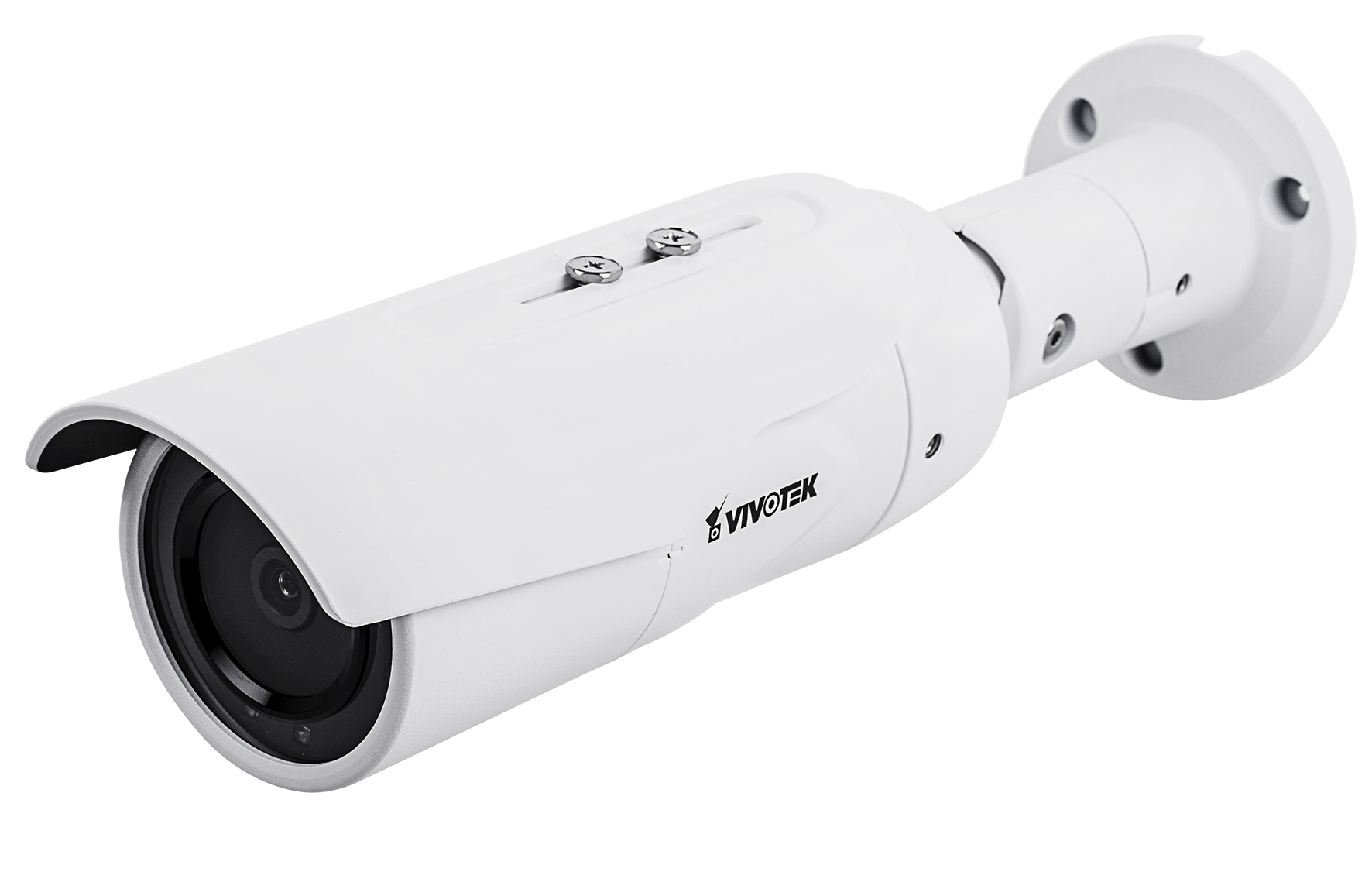

VIVOTEK’s IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IB9389 series is encased in IP66 and IK10 housing.

The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

Features:

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2560x1920 (5MP)
• Lens Type Motorized, Vari-focal, Remote Focus
• Focal Length f= 3.7 ~ 7.7 mm
• Aperture F1.9 ~ F2.9
• Auto-iris Fixed-iris
• Field of View 38° ~ 80° (Horizontal), 29° ~ 60° (Vertical), 48° ~ 101° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro (120 dB)
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators, Built-in IR illuminators, effective up to 30 meters with Smart IR
• Minimum Illumination 0.06 Lux @ F1.9 (Color), 0.01 Lux @ F1.9 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 55 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Smart Motion Detection Five-window video motion detection, people detection, time filter
• VCA Standard VCA (optional, including line crossing detection, field detection, loitering detection), VADP Package, Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection, Stratocast(support)
• Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, SD card life expectancy, shock detection, cybersecurity events (block brute force attack, block cyberattack, quarantine event)
• Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection*1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3at PoE Class 4
• Power Consumption Max. 22.1 W (Heater on), Max. 10 W (Heater off)
• Dimensions Ø 86 x 303 mm
• Weight 999 g (2.20 lb)
• Casing IP66, IK10(Metal Housing)
• Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
• Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, alignment sticker, screw pack
