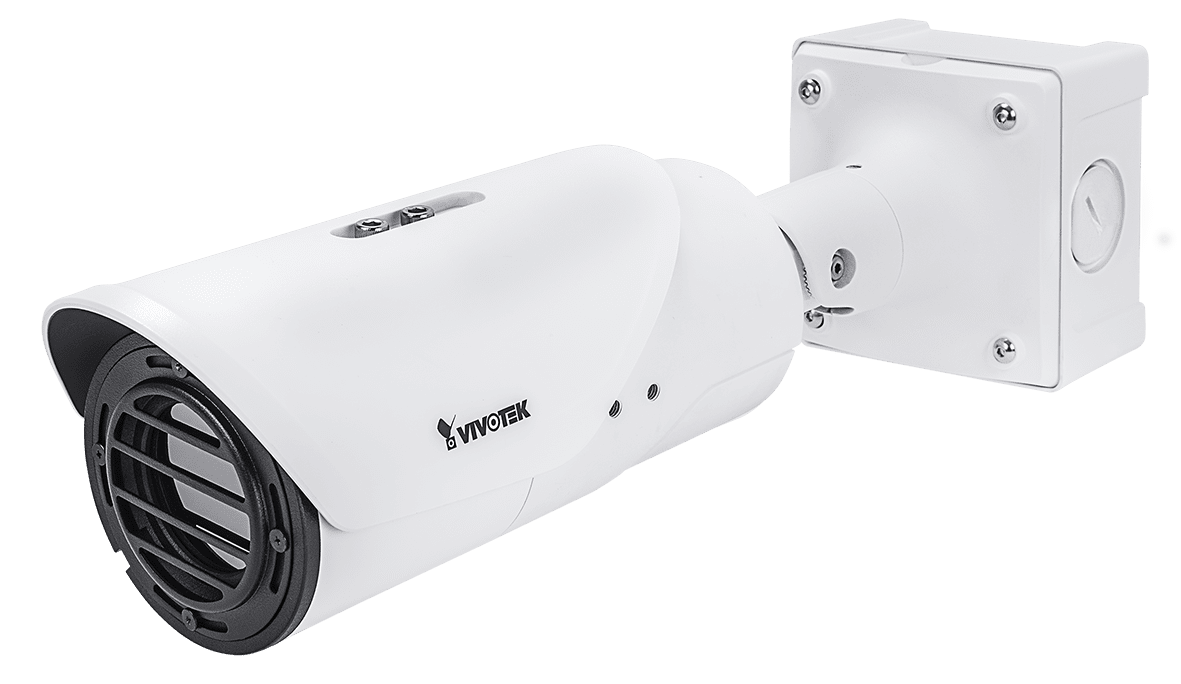

VIVOTEK’s TB9331-E(50mm) is an H.265 outdoor thermal bullet network camera designed to detect people and vehicles in wild weather, difficult lighting conditions, and any situation that create poor visibility. With heat based thermal imagery and lens options of 8.8/19/35/50mm,, the TB9331-E(50mm) supports long distance monitoring of vehicles up to 4,500m away even in complete darkness or under challenging climate conditions such as fog, rain, smoke and dust.

The TB9331-E(50mm) offers 720x480 resolution with an uncooled thermal sensor and VIVOTEK’s VCA (Video Content Analysis) to enhance perimeter protection and boarder security. This camera is also embedded with Trend Micro IoT Security software to provide users with higher levels of network protection. With an IP66, IK10 and NEMA 4X-rated rugged design, the TB9331-E(50mm) will withstand shock &vibration, humidity, dust, and even extreme temperature fluctuations to maintain stable and reliable video no matter how harsh the environment.

Features:

• Image Sensor Uncooled VOx infrared detector
• Max. Resolution Effective pixels: 720x480, Image scale up to: 960x640
• Pixel Size 17 µm
• Spectral Range 8 ~ 14 µm
• Sensitivity NETD < 50 mk
• Lens Type Fixed-focal (Thermal Lens)
• Focal Length
• TB9331-E(8.8mm): f = 8.8 mm
• TB9331-E(19mm): f = 19 mm
• TB9331-E(35mm): f = 35 mm
• TB9331-E(50mm): f = 50 mm
• Aperture F1.0
• Auto-iris Fixed-iris
• Field of View
• TB9331-E(8.8mm): 69.6° (Horizontal), 49.7° (Vertical), 79.8° (Diagonal)
• TB9331-E(19mm): 35.7° (Horizontal), 24.2° (Vertical), 42.3° (Diagonal)
• TB9331-E(35mm): 19.8° (Horizontal), 13.3° (Vertical), 23.7° (Diagonal)
• TB9331-E(50mm): 14° (Horizontal), 9.3° (Vertical), 16.7° (Diagonal)
• Pan/Tilt/Zoom Functionalities ePTZ: 20x digital zoom (4x on IE plug-in, 5x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 720x480
• Maximum Streams 4 simultaneous streams
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream II
• Image Settings Timestamp, text overlay, flip & mirror, configurable brightness, contrast, sharpness
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.726, G.711
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Intelligent Video
• Video Motion Detection Five-window video motion detection
• VCA Line crossing detection, field detection, loitering detection
• VADP Package Genetec package, Trend Micro IoT Security, Stratocast
• Alarm and Event
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (block brute force attack, block cyber attack, quarantine event)
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, DC 12V power input, AC 24V power input, Digital input*1, Digital output*1 , BNC, RS485
• LED Indicator System power and status indicator
• Power Input DC12V, AC24V (Redundant Power), IEEE 802.3at PoE Class 4
• Power Consumption PoE: Max. 14 W, DC 12V: Max. 11 W, AC 24V: Max. 12.4 W
• Dimensions
• TB9331-E(8.8mm): 121 x 121 x 471.2 mm (with junction box)
• TB9331-E(19mm): 121 x 121 x 452.2 mm (with junction box)
• TB9331-E(35mm)/(50mm): 121 x 121 x 455.6 mm (with junction box)
• Weight TB9331-E(8.8mm)/(35mm)/(50mm): 2,115 g, TB9331-E(19mm): 2,050 g
• Casing IP66, IP67, IK10(Metal Housing), NEMA 4X
• Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature Start Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, warranty card, screw pack, alignment sticker, junction box (AM-719)
