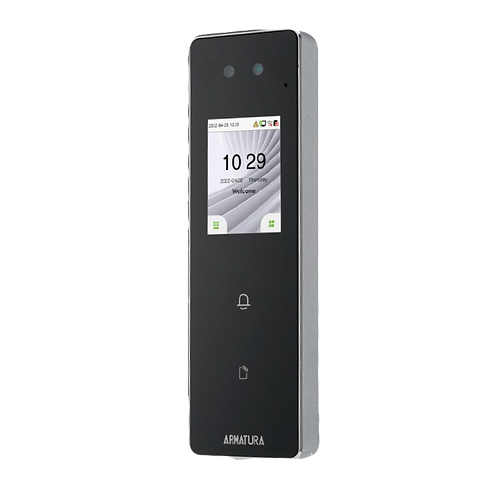

OmniAC20 - All Weather Outdoor Multi-tech Smart Standalone Terminal
Features:
Primary Power | 12 to 24 VDC (3A min @12V) |
RS485 connection | Port 1: RS485 standard / OSDP V2.1.7 |
CPU | 1.2 GHZ Quard Core ARM Processor |
NPU | 2.4 TOPS NPU |
Memory | 8 GB Flash + 1 GB RAM |
Camera | Face Automatic Exposure Palm Automatic Exposure Face tracking Palm tracking WDR HDR 50Hz to 60Hz Automatic Adaption Dual Camera CMOS 2MP (Output image 720P*960P) |
Primary Host Communication | Ethernet: 10/ 100 Mbps, auto MDI/ MDIX Complies with TLS 1.2 for end to end secure communication channel |
Ethernet network connection | Port 1:10/ 100 Mbps, auto MDI/ MDIX |
Data Protection | Complies with TLS 1.2 for end to end secure communication channel (Secured Communication between Standalone Terminal & Server) AES128 (Secured Communication between Standalone Terminal & OSDP Reader & Access Control Panel) |
Number of Ports | 1*TCP/IP 1*RS-485 Input: 4ch TTL Inputs Output: 1ch TTL Output 3 relays |
Inputs | Wiegand in, Button, Sensor in, Aux Input |
Outputs | 3 relays with dry contacts, Wiegand Output, Lock, Alarm, Bell |
