Powered by Sony STARVIS’s super high definition sensor providing up to 4K ultra HD videos and excellent night vision, together with true WDR and cutting-edge technology, the BioPro series of 8MP starlight IP cameras is a high-end professional project-oriented solution for ideal images and video surveillance in indoor and outdoor environments from day to night. With embedded facial recognition algorithm, cameras of the BioPro series could rapidly capture and compare the acquired face data with face templates stored in the database. The series also supports White/Black list event alarm deployment in different scenarios.
The BioPro series also offers multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting. for smart event alarms.
P2P cloud function is built-in for every device which is more convenient and flexible for remote real-time viewing. The BioPro series 8MP IP cameras also supports registration of face templates remotely from the mobile Application AntarView Pro which provides great convenient user experience
Features:
Specification | |
Camera | |

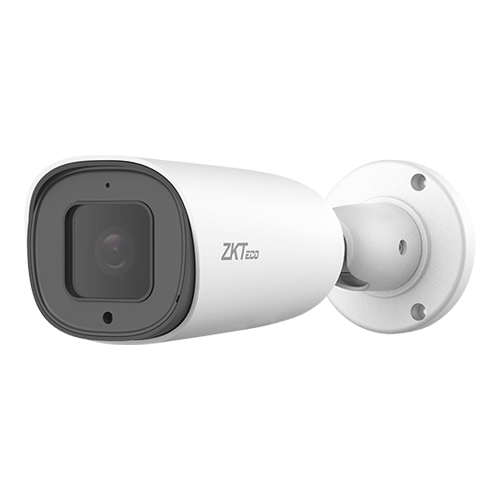

Model | BL-858M48S |
Image Sensor | 1/1.8” Sony STARVIS CMOS |
Effective Pixels | 3840*2160 |
Min. Illumination | Color: 0.1Lux@F1.5 (AGC ON) B/W: 0.001Lux@F1.5 (AGC ON) |
Flash / DDR | 1Gb / 4Gb |
IR LED No. | 4 |
IR Distance | 80m |
S/N Ratio | >52dB |
Lens | |
Lens Type | Motorized |
Mount Type | Board-in |
Focal Length | 3.6mm~11mm |
Aperture | F1.5 |
FOV | 50°~103° |
Optical Zoom | 3X |
Video | |
Compression | H.265+ / H.265 / H.264 |
Resolution | 8MP (3840 x 2160) / 5MP (2592 x 1944)/ 3MP (2048 x 1536) / 1080P (1920 x1080)/ 1.3MP (1280 x 960) / 720P (1280 x 720)/ D1 (720 x 576) / VGA (620 x 480) / CIF (352 x 288) |
Bitrate Control | CBR / VBR |
Bitrate | 16Mbps ~ 20Mbps |
Multi-Streaming | Main Stream: 4K@15fps / 5M@25fps / 4MP@25fps / 3MP@25fps / 2MP@25fps Sub Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps Third Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps |
Motion Detection | Support |
Digital Zoom | Support |
Audio Compression | G7.11u |
Privacy Mask | 5 areas |
WDR | TWDR |
Day / Night | Support |
White Balance | Support |
Defog | N/A |
Noise Reduction | 2D/3D DNR |
Mirror/Flip | Support |
Corridor Mode | Support |
HLC | Support |
BLC | N/A |
ROI | 4 areas |
Anti-flicker | Support |
IVA | |
Intelligent Video | Facial Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering / Fire Detection / Abnormal Sound / VQA |
Facial Recognition | |
Face Templates | 2000 |
Face Detected Per Frame | 30 |
Detected Face Size | 80x80 ~ 300x300 Pixels |
Face Quality Filtering | Support |
Detection Area | User-defined |
Capture Response | ≤1s |
Network | |
Protocol | TCP/IP,U DP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP |
Interoperability | ONVIF Profile S, SDK, API |
Max. Online Users | 5 |
Web Browser | IE / Firefox / Chrome / Safari |
Management Software (VMS) | AntarVis 2.0 ZKBioSecurity IVS BioAccess IVS |
Operation System | Windows |
Mobile APP | AntarView Pro |
P2P Cloud Service | Support |
Note: Video streaming is not available for Firefox/Chrome/Safari | |
Interface | |
Ethernet | 1 RJ-45 port (10/100Mbps) |
Audio I/O | 1/1 |
Alarm I/O | N/A |
RS485 | N/A |
Reset Button | N/A |
Micro-SD Slot | N/A |
ANR | N/A |
USB | N/A |
General | |
Power Supply | PoE (IEEE802.3af ), DC12±10% |
Power Consumption | <3W |
Ingress Protection | IP67 |
Dimensions (L*W*H) | 246 * 85 * 76 (mm) |
Working Temperature | -30°C ~ 60°C |
Working Humidity | 10% ~ 90% |
Net Weight | 0.50kg |
Gross Weight | 0.64kg |
