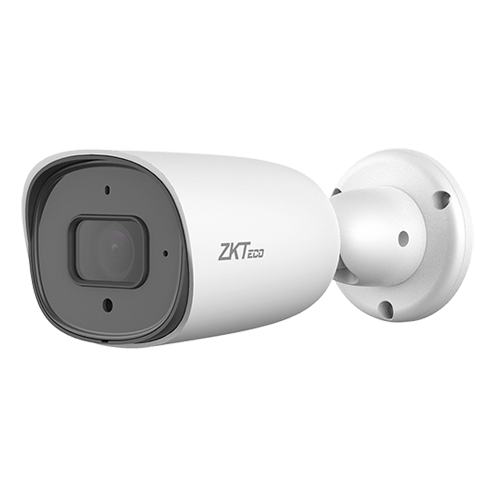

ZKteco USA - BS-854N22C-E3 - Mini Bullet 4MP AI Camera Face Recoginzation
Part number:
BS-854N22C-E3
Price:
BioPro Series 4MP IP cameras provide a cost-efficient solution that is powered by cutting-edge technology for crystal-clear videomonitoring. With an embedded face detection algorithm, the camera supports White/Black-list event alarm deployment under different scenarios.
The BioPro series also offers multiple industry-leading intelligent video analytic functions, such as Face Detection, Line Crossing,intrusion, Object Left/Lost, Counting, for smart event alarms.
Features:
- 1/2.8” Sony STARVIS CMOS sensor
- H.265+ dual-stream encoding
- High-quality optical lens: 3.6mm
- 30m IR effective range
- Built-in PoE
- An embedded face detection algorithm
- Intelligent video analytics available
- Multiple web browsers supported
- Remote viewing with mobile application or VMS
- Lightning protection up to 6kV
- IP67 metal casing
| Specification | |
| Camera | |
| Model | BS-854N22C-E3 |
| Image Sensor | 1/2.8” Sony STARVIS CMOS |
| Effective Pixels | 2592*1520 |
| Min. Illumination | Color: 0.01Lux@F1.6 (AGC ON) B/W: 0.001Lux@F1.6 (AGC ON) |
| Flash / DDR | 128Mb / 1Gb |
| IR LED No. | 2 |
| IR Distance | 30m |
| S/N Ratio | >52dB |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6mm |
| Aperture | F1.6 |
| FOV | 84° |
| Optical Zoom | N/A |
| Video | |
| Compression | H.265+, H.265, H.264 |
| Resolution | 4MP (2592 * 1520) / 3MP (2304 * 1296)/ 1080P (1920 * 1080) / 1.3MP (1280 * 960) / 720P (1280 * 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | 1024Kbps ~ 4Mbps |
| Multi-Streaming | Main Stream: 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream: D1@25fps / VGA@25fps / CIF@25fps | |
| Third Stream: N/A | |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | TWDR |
| Day / Night | Support |
| White Balance | N/A |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| Mirror/Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | |
| Intelligent Video | Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering |
| Face Detection | |
| Face Templates | N/A |
| Face Detected Per Frame | 30 |
| Detected Face Size | 80x80 ~ 300x300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤1s |
| Network | |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Note: Video streaming is not available for Firefox / Chrome / Safari | |
| Interface | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| General | |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions | 171 * 75 * 66 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Net Weight | 0.30kg |
| Gross Weight | 0.45kg |
