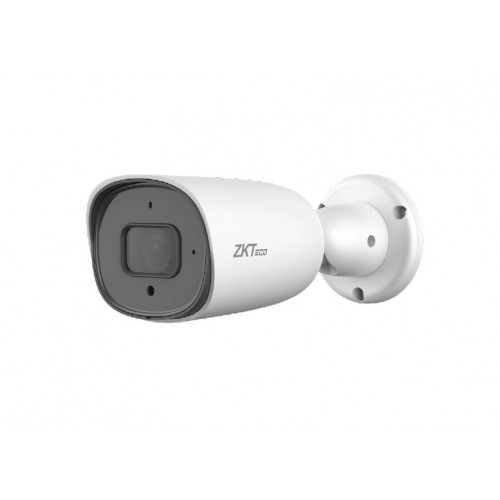

Zkteco USA - BS-855P12C-S7-C - Mini Bullet M-Star IP Camera (5MP) With Junction Box (NDAA Compliant)
Part number:
BS-855P12C-S7-C
Price:
Powered by the cutting edge F1.0 large aperture lens and warm white LED illuminators, ZKTeco's Full Color series camera presents a highquality color image with rich details even in total darkness conditions. It's promising to deliver authentic identification 24/7.
The Full Color series also offers multiple industry-leading intelligent Face Detection function for smart face deployment alarms.
The P2P cloud function is built-in for every device, much convenient and flexible for remote real-time viewing.
Features:
- 1/2.8” CMOS sensor
- H.265 triple stream encoding
- 3.6mm high-quality optical lens
- 30m IR effective range
- Built-in PoE & Microphone
- An embedded face detection algorithm
- Intelligent video analytics available
- Multiple web browsers supported
- P2P cloud remote viewing by Mobile Application/VMS
- Lightning protection up to 6kV
- IP67 metal casing
| Specification | |
| Sensor | 1/2.8" 5MP Sony Starvis |
| Aperture | F1.6 |
| Lens | 3.6mm |
| digital zoom | 12x |
| Backlight range | 10~20 m |
| Number of IR diodes in the backlight | one |
| Minimum illumination | 0.006Lux/F1.6 (Color) 0Lux with on IR |
| Permission | 2592x1944 |
| Compression | H.265+/H.265/H.264+/H.264 |
| Field of View (FOV) | 96° |
| BLC | There is |
| ethernet | 1RJ-45 (10/100 Mbps) |
| Flash/DDR | 128MB/256MB |
| ONVIF | Onvif Profile S |
| ROI | 4 areas for both streams |
| WDR | 120dB |
| antiglare | Yes |
| Antifog | Yes |
| Audio | Option |
| Audio compression | G.711U |
| white balance | Yes |
| Bitrate | 16Kb/s-32Mb/s |
| Browsers | IE, Firefox, Chrome, Safari |
| IVA video analytics | Border crossing, long stay in the zone, object appeared, object disappeared, target counting, image quality detection (anti-sabotage), video signal loss |
| Day Night | Auto/ Color/ B/W |
| Video detection | Motion detection, video loss |
| Mirror/Flip | There is |
| privacy mask | 4 zones |
| Mobile app | Antar View Pro |
| flip | There is |
| PC analysis software | Antar Vis 2.0 |
| Supported OS | macOS/Windows/IOS/Android |
| Users | 5 |
| Flow | Double |
| Network protocols | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP |
| Signal/noise | >52 dB |
| Bitrate type | CBR/VBR |
| Noise suppression | 3D DNR |
| Power consumption | ＜3W |
| Nutrition | DC 12V PoE,IEEE802.3af |
| Working temperature | -50℃ - +50℃ |
| Humidity | 10-90% |
| Net weight, kg | 0.36KG |
| Gross weight, kg | 0.44 KG |
| Dimensions, mm | d 102x93 mm |
| Protection class | IP67 |
