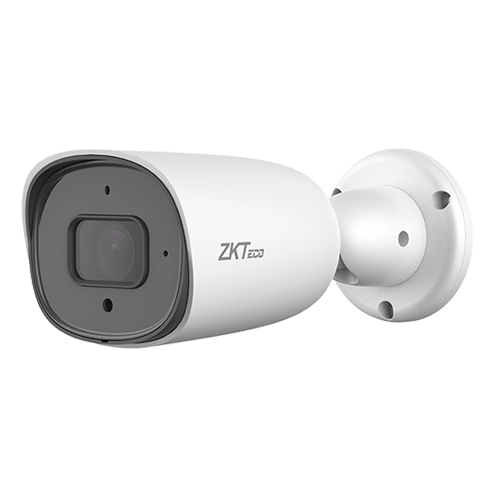

ZKteco USA - BS-855P22C-S7-MI - Lite 5MP Fixed Lens Face Detection Bullet IP Camera
Part number:
BS-855P22C-S7-MI
Price:

Lite Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection for smart event alarms. The P2P cloud function is built-in for every device , allowing more convenient and flexible remote real-time viewing and monitoring.



Functions:

H.265

H.265 technology is an evolutionary optimization of the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos and greatly saving up to 70% bandwidth and storage.



Protection

With the precise mechanical and rugged metal casing design, IP cameras of the Pro series rated IP67 could stand against water and dust for a long time. With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions.



With a working temperature range from -30°C ~ 60°C, the cameras could adapt to a variety of harsh outdoor environments.



Features:

  •  1/2.8” CMOS sensor
  •  265 triple stream encoding
  •  6mm high-quality optical lens
  •  30m IR effective range
  •  Built-in PoE & Microphone
  •  An embedded face detection algorithm
  •  Intelligent video analytics available
  •  Multiple web browsers supported
  •  P2P cloud remote viewing by Mobile Application/VMS
  •  Lightning protection up to 6kV
  •  IP67 metal casing

Camera
ModelBS-855P22C-S7-MIFlash / DDR128Mb / 1Gb
Image Sensor1/2.8” CMOSIR LED No.2
Effective Pixels2560*1920IR Distance30m
Min. IlluminationColor: 0.08Lux@F1.6 (AGC ON) B/W:0.001Lux@F1.6 (AGC ON)S/N Ratio>52dB
Lens
Lens TypeFixedApertureF1.6
Mount TypeBoard-inFOV87°
Focal Length3.6mmOptical ZoomN/A
Video
CompressionH.265 / H.264WDRDWDR
Resolution

5MP(2560x1920) / 4MP (2688 x 1520) /

3MP (2304 x 1296) / 1080P (1920 x 1080) /

1.3MP (1280 x 960) / 720P (1280 x 720)

Day / NightSupport
Bitrate ControlCBR / VBRWhite BalanceSupport
Bitrate

 H.265: 4Mbps - 16Mbps

 H.264: 5Mbps - 20Mbps

DefogSupport
Multi-Streaming Main Stream

5MP@25fps / 4MP@25fps /

3MP@25fps / 1080P@25fps /

960P@25fps / 720P@25fps

Noise Reduction2D/3D DNR
 Sub StreamD1@25fps / VGA@25fps / CIF@25fpsMirror/FlipSupport
 Third Stream1920X1080@25fpsCorridor ModeSupport
Motion DetectionSupportHLCSupport
Digital ZoomSupportBLCSupport
Audio CompressionG7.11uROI4 areas
Privacy Mask5 areasAnti-flickerSupport
IVA
Intelligent VideoFace Detection
Network
ProtocolTCP/IP, UDP, HTTP, HTTPS,DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMPManagement Software (VMS)

AntarVis 2.0

ZKBioSecurity IVS

ZKBioAccess IVS

InteroperabilityONVIF Profile S, SDK, APIOperation SystemWindows
Max. Online Users3Mobile APPAntarView Pro
Web BrowserIE / Firefox / Chrome / SafariP2P Cloud ServiceSupport
Interface
Ethernet1 RJ-45 port (10/100Mbps)Reset ButtonN/A
Audio I/OBuilt-in MicrophoneMicro-SD SlotN/A
Alarm I/ON/AANRN/A
RS485N/AUSBN/A
General
Power SupplyPoE(IEEE802.3af), DC 12V±10%Working Temperature-30°C to 60°C
Power Consumption<3WWorking Humidity10% to 90%
Ingress ProtectionIP67Net Weight0.30kg
Dimensions (L*W*H)171 * 75 * 66 (mm)Gross Weight0.45kg
Order Information
CameraModelDescription
5MP CameraBS-855P22C-S7-MI

5MP Fixed Lens Face Detection Bullet

IP Camera
