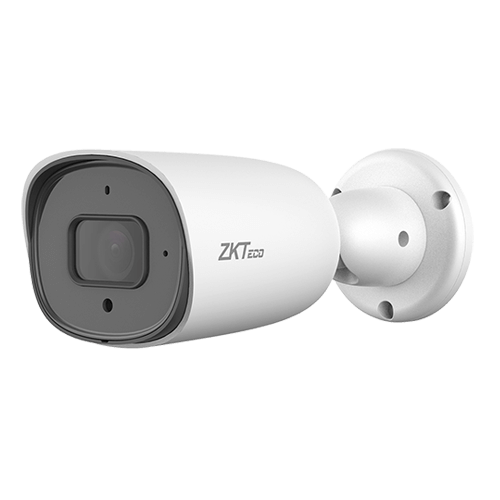

ZKteco USA - BS-855P22C - Big Bullet 5MP AI Camera Face Recoginzation
Part number:
BS-855P22C
Price:

Powered by Sony STARVIS sensor which provides excellent night vision, couple with true WDR and cutting-edge technology, theBioProseries5MP IP camera is a professional project-oriented solution for crystal clear video monitoring for both day & night. With embedded face recognition algorithm, the cameras could accurately capture and recognize faces comparing to the face templatesindatabase. It also supports White/Black list event alarm deployment in different scenarios. The cameras also support multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, ObjectLeft/Lost, Counting, etc. for smart event alarms.



Cloud function is built-in for every device which is more convenient and flexible for remote real-time viewing. The BioPro series 5MPIPcamerasalso supports registration of face templates remotely from the mobile Application AntarView Pro which provides great convenient user experience.



Features:

  • 1/2.8” 5MP Sony STARVIS CMOS sensor
  • H.265+ triple stream encoding
  • High quality optical lens 3.6mm
  • IR effective range 30m
  • Built-in PoE
  • Embedded face recognition algorithm
  • 2,000 Face templates capacity storage on camera
  • Support White/Black list alarm deployment
  • Intelligent video analytics function supported
  • Multiple web browsers supported
  • Support remote viewing by Mobile Application/VMS
  • Lightning protection up to 6KV
  • Metal casing compliance with IP67 standard
Specification
Camera
ModelBS-855P22C
Image Sensor1/2.8” SONY CMOS
Effective Pixels2592*1944
Min. IlluminationColor: 0.01Lux@F1.2 (AGC ON) B/W: 0.001Lux@F1.2 (AGC ON)
Flash / DDR1Gb / 4Gb
IR LED No.2
IR Distance30m
S/N Ratio>52dB
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.6mm
ApertureF2.0
FOV87°
Optical ZoomN/A
Video
CompressionH.265+ / H.265 / H.264
Resolution
5MP (2592 × 1944) / 4MP (2592 × 1520)/ 3MP (2304 × 1296) / 1080P (1920 × 1080) / 1.3MP (1280 × 960) / 720P (1280 × 720)
Bitrate ControlCBR / VBR
Bitrate16Mbps ~ 20Mbps
Multi-Streaming
Main Stream: 5M@25fps / 4MP@25fps / 3MP@25fps / 2MP@25fps
Sub Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps
Third Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps
Motion DetectionSupport
Digital ZoomSupport
Audio CompressionG7.11u
Privacy Mask5 areas
WDRTWDR
Day / NightSupport
White BalanceSupport
DefogN/A
Noise Reduction2D/3D DNR
Mirror/FlipSupport
Corridor ModeSupport
HLCSupport
BLCN/A
ROI4 areas
Anti-flickerSupport
IVA
Intelligent Video
Facial Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering / Fire Detection / Abnormal Sound / VQA
Facial Recognition
Face Templates2000
Face Detected Per Frame30
Detected Face Size80x80 ~ 300x300 Pixels
Face Quality FilteringSupport
Detection AreaUser-defined
Capture Response≤1s
Network
ProtocolTCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
InteroperabilityONVIF Profile S, SDK, API
Max. Online Users5
Web BrowserIE / Firefox / Chrome / Safari
Management Software (VMS)
AntarVis 2.0 ZKBioSecurity IVS
BioAccess IVS
Operation SystemWindows
Mobile APPAntarView Pro
P2P Cloud ServiceSupport
Note: Video streaming is not available for Firefox/Chrome/Safari
Interface
Ethernet1 RJ-45 port (10/100Mbps)
Audio I/O1/1
Alarm I/ON/A
RS485N/A
Reset ButtonN/A
Micro-SD SlotN/A
ANRN/A
USBN/A
General
Power SupplyPoE (IEEE802.3af ), DC12V±10%
Power Consumption<3W
Ingress ProtectionIP67
Dimensions (L*W*H)171 * 75 * 66 (mm)
Working Temperature-30°C ~ 60°C
Working Humidity10% ~ 90%
Net Weight0.30kg
Gross Weight0.45kg
