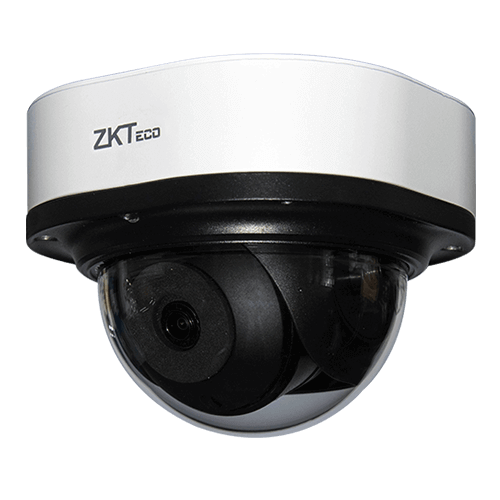

ZKteco USA - DL-855P28B-S7 - M-Star IP Camera (5MP) With Junction Box (NDAA Compliant)
Part number:
DL-855P28B-S7
Price:

Powered by Sony STARVIS’s sensor providing excellent night vision, couple with true WDR and cutting-edge technology, the BioPro series of 5MP starlight IP cameras is a professional project-oriented solution forideal images and video surveillance in indoor and outdoor environments from day to night. With embedded facial recognition algorithm, cameras of the BioPro series could accurately capture and compare the acquired face data with face templates stored in the database. It also supports White/Black list event alarm deployment in different scenarios.



The BioPro series also offers multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting. for smart event alarms. Cloud function is built-in for every device which is more convenient and flexible for remote real-time viewing. The BioPro series 5MP IP cameras also supports registration of face templates remotely from the mobile Application AntarView Pro which provides great convenient user experience.



Features:

  • 1/2.8” 5MP Sony STARVIS CMOS sensor
  • H.265+ triple-stream encoding
  • High quality optical lens: 2.8~12mm
  • 30m IR effective range
  • Built-in PoE
  • An embedded facial recognition algorithm
  • Capacity of 2,000 face templates in the camera
  • White/Black-list alarm deployment
  • Intelligent video analytics available
  • Multiple web browsers supported
  • Remote viewing with mobile application or VMS
  • Lightning protection up to 6KV
  • IP67 metal casing
Specification
Camera
ModelDL-855P28B
Image Sensor1/2.8” SONY CMOS
Effective Pixels2592*1944
Min. IlluminationColor: 0.01Lux@F1.4-F2.8 (AGC ON) B/W: 0.001Lux@F1.4-F2.8 (AGC ON)
Flash / DDR1Gb / 4Gb
IR LED No.4
IR Distance30m
S/N Ratio>52dB
Lens
Lens TypeMotorized
Mount TypeBoard-in
Focal Length2.8mm-12mm
ApertureF1.4-F2.8
FOV40°~98°
Optical Zoom3X
Video
CompressionH.265+ / H.265 / H.264
Resolution
5MP (2592 × 1944)/4MP (2592 ×1520) / 3MP (2304 × 1296) / 1080P (1920 × 1080) / 1.3MP (1280 × 960) / 720P (1280 × 720)
Bitrate ControlCBR / VBR
Bitrate16Mbps ~ 20Mbps
Multi-Streaming
Main Stream: 5M@25fps / 4MP@25fps / 3MP@25fps / 2MP@25fps
Sub Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps
Third Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps
Motion DetectionSupport
Digital ZoomSupport
Audio CompressionG7.11u
Privacy Mask5 areas
WDRTWDR
Day / NightSupport
White BalanceSupport
DefogN/A
Noise Reduction2D/3D DNR
Mirror/FlipSupport
Corridor ModeSupport
HLCSupport
BLCN/A
ROI4 areas
Anti-flickerSupport
IVA
Intelligent Video
Facial Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering /
Fire Detection / Abnormal Sound / VQA
Facial Recognition
Face Templates2000
Face Detected Per Frame30
Detected Face Size80x80 ~ 300x300 Pixels
Face Quality FilteringSupport
Detection AreaUser-defined
Capture Response≤1s
Network
ProtocolTCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
InteroperabilityONVIF Profile S, SDK, API
Max. Online Users5
Web BrowserIE / Firefox / Chrome / Safari
Management Software (VMS)
AntarVis 2.0 ZKBioSecurity IVS, BioAccess IVS
Operation SystemWindows
Mobile APPAntarView Pro
P2P Cloud ServiceSupport
Note: Video streaming is not available for Firefox/Chrome/Safari
Interface
Ethernet1 RJ-45 port (10/100Mbps)
Audio I/O1/1
Alarm I/ON/A
RS485N/A
Reset ButtonN/A
Micro-SD SlotN/A
ANRN/A
USBN/A
General
Power SupplyPoE (IEEE802.3af ), DC12V±10%
Power Consumption<3W
Ingress ProtectionIP67
Dimensions (L*W*H)Φ102 * 93.2 (mm)
Working Temperature-30°C ~ 60°C
Working Humidity10% ~ 90%
Net Weight0.50kg
Gross Weight0.70kg
