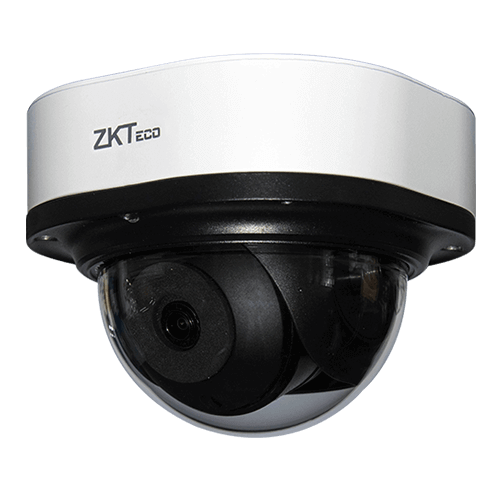

ZKteco USA - DL-858M28B - Big Dome 8MP AI Camera Face Recoginzation
Part number:
DL-858M28B
Price:
W series 8MP IP cameras are high-end project solution which is powered by Starlight, true WDR smart H.265+ and advanced cutting-edge Sony sensor for video monitoring. It delivers crystal clear images and supports industry-leading IVA smart event alarm Cloud function is built-in for every single device, which is more convenient and exible for real time and remote viewing.
Features:
- 1/1.8” 8MP Sony STARVIS CMOS sensor
- H.265+ triple-stream encoding
- High-quality optical lens: 3.6~11mm
- 30m IR effective range
- Built-in PoE
- An embedded facial recognition algorithm
- Capacity of 2,000 face templates in the camera
- White/Black-list alarm deployment
- Intelligent video analytics available
- Multiple web browsers supported
- Remote viewing with mobile application or VMS
- Lightning protection up to 6KV
- IP67 metal casing
| Specification | |
| Camera | |
| Model | DL-858M28B |
| Image Sensor | 1/1.8” SONY CMOS |
| Effective Pixels | 3840*2160 |
| Min. Illumination | Color: 0.01Lux@F1.4-F2.8 (AGC ON) B/W: 0.001Lux@F1.4-F2.8 (AGC ON) |
| Flash / DDR | 1Gb / 4Gb |
| IR LED No. | 4 |
| IR Distance | 30m |
| S/N Ratio | >52dB |
| Lens | |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 3.6mm~11mm |
| Aperture | F1.5 |
| FOV | 50°~103° |
| Optical Zoom | 3X |
| Video | |
| Compression | H.265+ / H.265 / H.264 |
| Resolution | 5MP (2592 × 1944)/4MP (2592 ×1520) / 3MP (2304 × 1296) / 1080P (1920 × 1080) / 1.3MP (1280 × 960) / 720P (1280 × 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | 16Mbps ~ 20Mbps |
| Multi-Streaming | Main Stream: 5M@25fps / 4MP@25fps / 3MP@25fps / 2MP@25fps Sub Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps Third Stream: 720P@25fps / D1@25fps / VGA@25fps / CIF@25fps |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | TWDR |
| Day / Night | Support |
| White Balance | Support |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| Mirror/Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | N/A |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | |
| Intelligent Video | Facial Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering / Fire Detection / Abnormal Sound / VQA |
| Facial Recognition | |
| Face Templates | 2000 |
| Face Detected Per Frame | 30 |
| Detected Face Size | 80x80 ~ 300x300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤1s |
| Network | |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 5 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0 ZKBioSecurity IVS BioAccess IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Note: Video streaming is not available for Firefox/Chrome/Safari | |
| Interface | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1/1 |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| General | |
| Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | Φ102 * 93.2 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Net Weight | 0.50kg |
| Gross Weight | 0.70kg |
