ZKteco USA - DL-858V17C-FS - Fisheye IP Camera
Part number:
DL-858V17C-FS
Price:

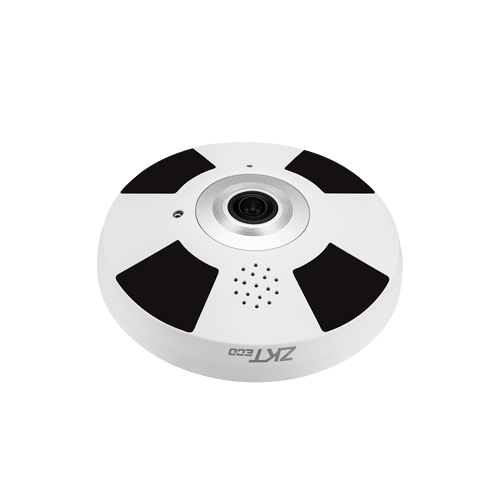

The BioUltra series of 4K fisheye camera is equipped with a panoramic lens and on-board dewarp correction, which is capable of covering the whole surrounding area with a high-quality picture image.
It is an ideal solution for large-scale or open space project sites such as stadiums, shopping malls, or parking lots.
Features:
- 1/1.7” 8MP SONY CMOS
- H.265/H.264 dual-stream encoding
- IR effective range: 10~20m
- High-quality fish-eye lens
- Multiple web browsers supported
- P2P cloud function with the mobile app AntarView Pro
- Dewarp supported
- Built-in PoE
| Specification | |
| Camera | |
| Model | DL-858V17C-FS |
| Image Sensor | 1/1.7” Sony CMOS |
| Effective Pixels | 3840*2160 |
| Min. Illumination | Color:0.1Lux/F1.4 (AGC ON) B/W:0 Lux with IR ON |
| Flash / DDR | 128Mb / 256Mb |
| IR LED No. | 4 |
| IR Distance | 10~20m |
| S/N Ratio | >52dB |
| Lens | |
| Lens Type | Fisheye Lens |
| Mount Type | N/A |
| Focal Length | N/A |
| Aperture | F1.4 |
| FOV | 360° |
| Optical Zoom | N/A |
| Video | |
| Compression | H.265 / H.264 |
| Resolution | 8MP (3840 * 2160)/ 1080P (1920 * 1080)/ 1.3M (1280 * 960) / 720P (1280 * 720) / D1 (704 * 576) / CIF (352 * 288) |
| Bitrate Control | CBR / VBR |
| Bitrate | 32Kbps - 16Mbps |
| Multi-Streaming | Main Stream: 4K@30fps / 5M@30fps / 4MP@30fps / 3MP@30fps / 2MP@30fps |
| Sub Stream: 720P@30fps / D1@30fps / CIF@30fps | |
| N/A | |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | TWDR |
| Day / Night | Support |
| White Balance | Support |
| Defog | Support |
| Noise Reduction | 2D/3D DNR |
| Mirror/Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA | |
| Intelligent Video | N/A |
| Network | |
| Protocol | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 5 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Note:Video streaming is not available for Firefox/Chrome/Safari. | |
| Interface | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1 in / 1 out |
| Alarm I/O | 1 in / 1 out |
| RS485 | Support |
| Reset Button | N/A |
| Micro-SD Slot | Support(Max 128GB) |
| ANR | Support |
| USB | N/A |
| General | |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | <5W |
| Ingress Protection | IP66 |
| Dimensions | Φ149.4*50 mm |
| Working Temperature | -10°C ~ 50°C |
| Working Humidity | 10% ~ 90% |
| Net Weight | 2.0kg |
| Gross Weight | 2.0kg |
