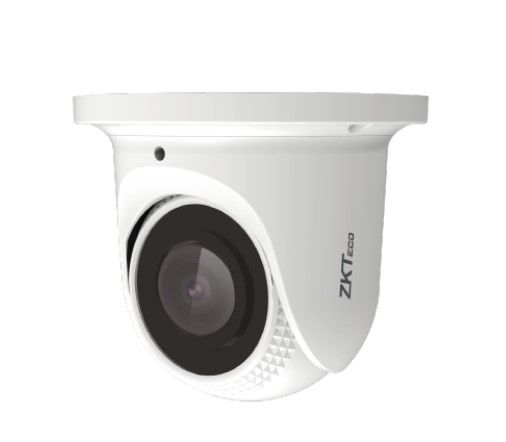

ZKTeco USA - ES-855P21C-S7-MI - Mini Eyeball M-Star IP Camera (5MP) With Junction Box (NDAA Compliant)
Lite Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection for smart event alarms. The P2P cloud function is built-in for every device, allowing more convenient and flexible remote real-time viewing and monitoring.
Features:
- 1/2.8” CMOS sensor
- H.265 triple stream encoding
- 2.8mm high-quality optical lens
- 30m IR effective range
- Built-in PoE & Microphone
- An embedded face detection algorithm
- Intelligent video analytics available
- Multiple web browsers supported
- P2P cloud remote viewing by Mobile Application/VMS
- Lightning protection up to 6kV
- IP67 metal casing
| Specification | ||||
| Model | ES-855P21C-S7-MI | Flash / DDR | 128Mb / 1Gb | |
| Image Sensor | 1/2.8” CMOS | IR LED No. | 2 | |
| Effective Pixels | 2560*1920 | IR Distance | 30m | |
| Min. Illumination | Color: 0.08Lux@F1.6 (AGC ON) B/W: 0.001Lux@F1.6 (AGC ON) | S/N Ratio | >52dB | |
| Lens | ||||
| Lens Type | Fixed | Aperture | F1.6 | |
| Mount Type | Board-in | FOV | 110° | |
| Focal Length | 2.8mm | Optical Zoom | N/A | |
| Video | ||||
| Compression | H.265 / H.264 | WDR | DWDR | |
| Resolution | 5MP(2560x1920) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) | Day / Night | Support | |
| Bitrate Control | CBR / VBR | White Balance | Support | |
| Bitrate | H.265: 4Mbps - 16Mbps H.264: 5Mbps - 20Mbps | Defog | Support | |
| Multi-Streaming | Main Stream | 5MP@25fps / 4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps | Noise Reduction | 2D/3D DNR |
| Sub Stream | D1@25fps / VGA@25fps / CIF@25fps | Mirror/Flip | Support | |
| Third Stream | 1920X1080@25fps | Corridor Mode | Support | |
| Motion Detection | Support | HLC | Support | |
| Digital Zoom | Support | BLC | Support | |
| Audio Compression | G7.11u | ROI | 4 areas | |
| Privacy Mask | 5 areas | Anti-flicker | Support | |
| IVA | ||||
| Intelligent Video | Face Detection | |||
| Network | ||||
| Protocol | TCP/IP, UDP, HTTP, HTTPS,DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMP | Management Software (VMS) | AntarVis 2.0 ZKBioSecurity IVS ZKBioAccess IVS | |
| Interoperability | ONVIF Profile S, SDK, API | Operation System | Windows | |
| Max. Online Users | 3 | Mobile APP | AntarView Pro | |
| Web Browser | IE / Firefox / Chrome / Safari | P2P Cloud Service | Support | |
| Interface | |||
| Ethernet | 1 RJ-45 port (10/100Mbps) | Reset Button | N/A |
| Audio I/O | Built-in Microphone | Micro-SD Slot | N/A |
| Alarm I/O | N/A | ANR | N/A |
| RS485 | N/A | USB | N/A |
| General | |||
| Power Supply | PoE(IEEE802.3af), DC 12V±10% | Working Temperature | -30°C to 60°C |
| Power Consumption | <3W | Working Humidity | 10% to 90% |
| Ingress Protection | IP67 | Net Weight | 0.30kg |
| Dimensions (L*W*H) | 171 * 75 * 66 (mm) | Gross Weight | 0.45kg |
