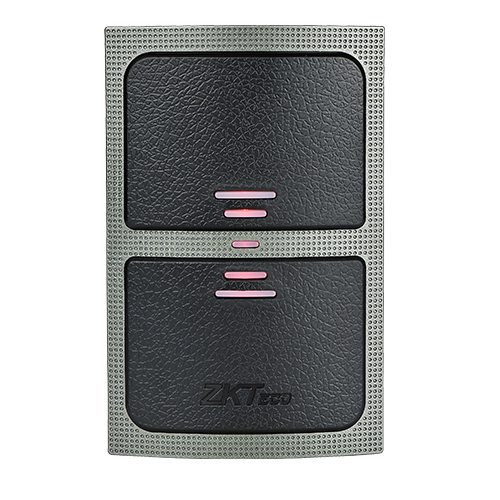

ZKteco USA - KR503E - Wiegand Card Readers
Part number:
KR503E
Price:

KR500E is a series of outdoor IP65-rated proximity card readers designed to read only ZKAccess-supplied proximity cards.



Features:



  • Convenient:

Conveniently fits and single gang box



  • Multiple Verification Methods:

Multiple 125 KHz proximity cards supported

Specifications
Read Range KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM
Reading Time≤200ms
Input PortExternal LED Control, External Buzzer Control
Output Port KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)
Power/Current DC 6-14V / Max.70mA
LEDRed and Green LEDs
Operating Temperature -10°C to +65°C
Material ABS+PC with texture
Operating Humidity 10% to 90% relative humidity • non-condensing
Beeper Yes
Index of Protection• KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65
Standard Features125KHz RFID Card
Optional Features125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card
CommunicationRS485
