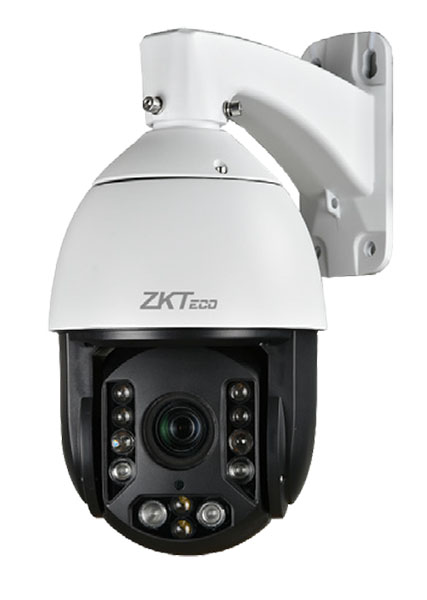

ZKteco USA - PL-855C18M - 18X 5.4mm-97.2mm PTZ IP camera
Part number:
PL-855C18M
Price:
PL-855C18M is featured by the mini compact design which is only 6 inches and easy for installation. Powered by the cutting edge human detection technology, it could guard your region safely and filter out the false alarm. Coming with default PoE function, it brings more convenience to the installer for cabling and saving the labor cost.
With pan speed up to 180°/s, and tilt speed up to 100°/s, it would promise a large HD video coverage and secured details. It’s the ideal choice for SMB solutions, such as buildings, factories, schools which are designed for indoor and outdoor.
Features:
- 1/3” 5MP CMOS sensor
- High quality 18X industrial camera module
- Support dual stream encoding
- Link with sound / strobe light, human detection and automatic tracking.
- Support tour/pattern/AB scan function
- IP66 index
- DWDR / BLC / 2D and 3D noise reduction
- PoE
| Specification | |
| Camera | |
| Image Sensor | 1/3” 5MP CMOS |
| Lens | 18X, f=5.4 ~ 97.2 (mm) |
| FOV | 55.4°(W) ~ 3.55°(T) |
| scanning system | Progressive |
| electronic shutter | Auto/Manual(1/5s-1/100,000s) |
| min lighting | 0.05Lux (color), 0.01Lux (BW), 0 Lux with IR on |
| infrared range | 7pcs Array LED + 3pcs IR Laser + 2pcs Warm Strobe Lights, 120m |
| Video | |
| Compression | H.265 / H.264 |
| WDR | DWDR |
| Resolution | Main: 5MP@25f/s Sub: 640*480@25f/s |
| Day Night | Auto(ICR)/Colour/B/W |
| Bit rate control | CBR/VBR |
| White Balance | Auto / Custom / WB Locked / Incandescent Lamp / Warm Light / Natural Light / Fluorescent Lamp |
| Bit rate | Primary: 2Mbps ~ 8Mbps Secondary: 160Kbps ~ 896Kbps |
| gain control | Car |
| audio compression | G.711a/G.711u(32Kbps)/PCM(128Kbps) |
| noise reduction | 2D & 3D DNR |
| HRC | supported |
| privacy mask | Up to 5 areas |
| human detection | Link with sound/strobe light and human detection alarm tracking |
| Audio I/Audio I/O | Built-in speaker and microphone |
| Network | |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP |
| Max. online user | 3 |
| onvif | Onvif profile |
| Browser | IE, Chrome, Firefox |
| P/T | |
| Pan/tilt range | Pan: 0°~360°, Tilt: -5°~90° |
| Protection Index | IP66 |
| pan speed | 0~180°/s |
| Work environment | -20°C ~ 60°C, RH＜90% |
| tilt speed | 0~100°/s |
| Power supply | PoE/DC 12V4A |
| preset | 255 |
| lightning protection | ESD 4000V |
| preset speed | 7 selection levels |
| tour group | 8 |
| pattern group | 4 |
| AB Scan Group | 8 |
| Automatic mode | Supports idle motion, auto power-on detection, proportional optical zoom rotation speed changes |
| Protocol | Pelco-D, Pelco-P |
| Dimensions | Φ185*375(mm) |
| Net weight | 3.5kg |
| Gross weight | 4.5kg |
